我们简单分析Spring Boot的基本原理，让我们揭开它神秘的面纱吧。了解Spring Boot执行原理。
首先，我从引导类开始
/**
* Spring Boot引导类
* 一点教程网 - www.yiidian.com
*/
@SpringBootApplication
public class MyBootApplication {
public static void main(String[] args) {
SpringApplication.run(MyBootApplication.class,args);
}
}引导类代码很简单，但可以看出最关键的是@SpringBootApplication注解以及在main方法中运行的SpringAppliation.run()了，我们进去@SpringBootApplication的源码：
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(
excludeFilters = {@Filter(
type = FilterType.CUSTOM,
classes = {TypeExcludeFilter.class}
), @Filter(
type = FilterType.CUSTOM,
classes = {AutoConfigurationExcludeFilter.class}
)}
)
public @interface SpringBootApplication {
......
}我们看到@SpringBootApplication其实是一个复合的注解，它就是由@SpringBootConfiguration、@EnableAutoConfiguration以及@ComponentScan 三个注解组成，所以如果我们把SpringBoot启动类改写成如下方式，整个SpringBoot应用依然可以与之前的启动类功能一样：
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(excludeFilters = {
@Filter(type = FilterType.CUSTOM, classes = TypeExcludeFilter.class),
@Filter(type = FilterType.CUSTOM, classes = AutoConfigurationExcludeFilter.class) })
public class SpringbootDemoApplication {
public static void main(String[] args) {
SpringApplication.run(SpringbootDemoApplication.class, args);
}
}因为我们每次新建项目时都要写上三个注解来完成配置，这显然太繁琐了，SpringBoot就为我们提供了@SpringBootApplication这样注解来简化我们的操作。接着，我们重点分析这三个注解的作用。
我们来看@SpringBootConfiguration注解的源码：
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Configuration
public @interface SpringBootConfiguration {
}我们可以看到，SpringBoot为了区别@Configuration而新提供的专属于SpringBoot的注解，功能其实和@Configuration一模一样。而这里的@Configuration注解对于我们来说并不陌生，它就是是个IoC容器的配置类。看到这里，我们其实可以把SpringBoot的启动类这样来看就清楚了：
@Configuration
@EnableAutoConfiguration
@ComponentScan
public class SpringbootDemoApplication {
public static void main(String[] args) {
SpringApplication.run(SpringbootDemoApplication.class, args);
}
}启动类SpringbootDemoApplication其实就是一个标准的Spring纯注解下的启动类，也并没有什么特殊。
看到这个注解，我们不禁联想出Spring 中很多以“@Enable”开头的注解，比如：@EnableScheduling、@EnableCaching以及@EnableMBeanExport等，@EnableAutoConfiguration注解的理念和工作原理和它们其实一脉相承。简单的来说，就是该注解借助@Import注解的支持，Spring的IoC容器收集和注册特定场景相关的Bean定义：
@EnableScheduling是通过@Import将Spring调度框架相关的bean都加载到IoC容器。
@EnableMBeanExport是通过@Import将JMX相关的bean定义加载到IoC容器。
而@EnableAutoConfiguration注解也是借助@Import将所有复合配置条件的bean定义加载到IoC容器，仅此而已！@EnableAutoConfiguration注解的源码如下：
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@AutoConfigurationPackage
@Import(EnableAutoConfigurationImportSelector.class)
public @interface EnableAutoConfiguration {
...

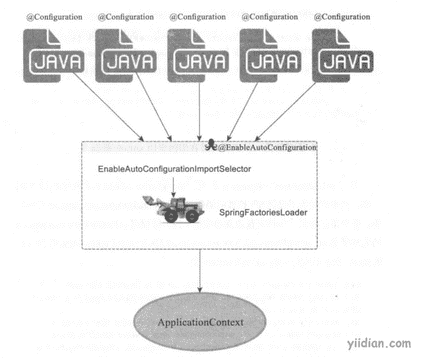

}这其中最关键的就是@Import(EnableAutoConfigurationImportSelector.class)了，它借助EnableAutoConfigurationImportSelector.class可以帮助SpringBoot应用将所有符合条件的@Configuration配置类都加载到当前SpringBoot创建并使用的IoC容器，就像下图一样。
下面我们给出EnableAutoConfigurationImportSelector.java的父类AutoConfigurationImportSelector.java的部分源码，来解释和验证上图：
public class AutoConfigurationImportSelector
implements DeferredImportSelector, BeanClassLoaderAware, ResourceLoaderAware,
BeanFactoryAware, EnvironmentAware, Ordered {
protected ListgetAutoConfigurationImportFilters() {
return SpringFactoriesLoader.loadFactories(AutoConfigurationImportFilter.class,
this.beanClassLoader);
}
protected ListgetAutoConfigurationImportListeners() {
return SpringFactoriesLoader.loadFactories(AutoConfigurationImportListener.class,
this.beanClassLoader);
}
}以上源码可以看出，@EnableAutoConfiguration正是借助SpringFactoriesLoader的支持，才能完成所有配置类的加载！
SpringFactoriesLoader属于Spring框架专属的一种扩展方案(其功能和使用方式类似于Java的SPI方案:java.util.ServiceLoader)，它的主要功能就是从指定的配置文件META-INF/spring.factories中加载配置，spring.factories是一个非常经典的java properties文件，内容格式是Key=Value形式，只不过这Key以及Value都非常特殊，为Java类的完整类名(Fully Qualified Name)，比如：
org.springFramework.context.ApplicationListener=org.springframework.boot.autoconfigure.BackgroundPreinitializer
然后Spring框架就可以根据某个类型作为Key来查找对应的类型名称列表了，SpringFactories源码如下：
public abstract class SpringFactoriesLoader {
private static final Log logger = LogFactory.getLog(SpringFactoriesLoader.class);
public static final String FACTORIES_RESOURCE_LOCATION = "META-INF/spring.factories";
public staticListloadFactories(ClassfactoryClass, ClassLoader classLoader){
...
}
public static ListloadFactoryNames(Class factoryClass, ClassLoader classLoader) {
...
}
// ...
}对于@EnableAutoConfiguraion来说，SpringFactoriesLoader的用途和其本意稍微不同，它本意是为了提供SPI扩展，而在@EnableAutoConfiguration这个场景下，它更多的是提供了一种配置查找的功能的支持，也就是根据@EnableAutoConfiguration的完整类名org.springframework.boot.autoconfigure.EnableAutoConfiguration作为Key来获取一组对应的@Configuration类：
# Auto Configure org.springframework.boot.autoconfigure.EnableAutoConfiguration= org.springframework.boot.autoconfigure.admin.SpringApplicationAdminJmxAutoConfiguration, org.springframework.boot.autoconfigure.aop.AopAutoConfiguration, org.springframework.boot.autoconfigure.amqp.RabbitAutoConfiguration, org.springframework.boot.autoconfigure.batch.BatchAutoConfiguration, org.springframework.boot.autoconfigure.cache.CacheAutoConfiguration, org.springframework.boot.autoconfigure.cassandra.CassandraAutoConfiguration, org.springframework.boot.autoconfigure.cloud.CloudServiceConnectorsAutoConfiguration, org.springframework.boot.autoconfigure.context.ConfigurationPropertiesAutoConfiguration, org.springframework.boot.autoconfigure.context.MessageSourceAutoConfiguration, org.springframework.boot.autoconfigure.context.PropertyPlaceholderAutoConfiguration, org.springframework.boot.autoconfigure.couchbase.CouchbaseAutoConfiguration, org.springframework.boot.autoconfigure.dao.PersistenceExceptionTranslationAutoConfiguration, org.springframework.boot.autoconfigure.data.cassandra.CassandraDataAutoConfiguration, org.springframework.boot.autoconfigure.data.cassandra.CassandraReactiveDataAutoConfiguration, org.springframework.boot.autoconfigure.data.cassandra.CassandraReactiveRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.cassandra.CassandraRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.couchbase.CouchbaseDataAutoConfiguration, org.springframework.boot.autoconfigure.data.couchbase.CouchbaseReactiveDataAutoConfiguration, org.springframework.boot.autoconfigure.data.couchbase.CouchbaseReactiveRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.couchbase.CouchbaseRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.elasticsearch.ElasticsearchAutoConfiguration, org.springframework.boot.autoconfigure.data.elasticsearch.ElasticsearchDataAutoConfiguration, org.springframework.boot.autoconfigure.data.elasticsearch.ElasticsearchRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.jdbc.JdbcRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.jpa.JpaRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.ldap.LdapRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.mongo.MongoDataAutoConfiguration, org.springframework.boot.autoconfigure.data.mongo.MongoReactiveDataAutoConfiguration, org.springframework.boot.autoconfigure.data.mongo.MongoReactiveRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.mongo.MongoRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.neo4j.Neo4jDataAutoConfiguration, org.springframework.boot.autoconfigure.data.neo4j.Neo4jRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.solr.SolrRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.redis.RedisAutoConfiguration, org.springframework.boot.autoconfigure.data.redis.RedisReactiveAutoConfiguration, org.springframework.boot.autoconfigure.data.redis.RedisRepositoriesAutoConfiguration, org.springframework.boot.autoconfigure.data.rest.RepositoryRestMvcAutoConfiguration, org.springframework.boot.autoconfigure.data.web.SpringDataWebAutoConfiguration, org.springframework.boot.autoconfigure.elasticsearch.jest.JestAutoConfiguration, org.springframework.boot.autoconfigure.elasticsearch.rest.RestClientAutoConfiguration, org.springframework.boot.autoconfigure.flyway.FlywayAutoConfiguration, org.springframework.boot.autoconfigure.freemarker.FreeMarkerAutoConfiguration, org.springframework.boot.autoconfigure.gson.GsonAutoConfiguration, org.springframework.boot.autoconfigure.h2.H2ConsoleAutoConfiguration, org.springframework.boot.autoconfigure.hateoas.HypermediaAutoConfiguration, org.springframework.boot.autoconfigure.hazelcast.HazelcastAutoConfiguration, org.springframework.boot.autoconfigure.hazelcast.HazelcastJpaDependencyAutoConfiguration, org.springframework.boot.autoconfigure.http.HttpMessageConvertersAutoConfiguration, org.springframework.boot.autoconfigure.http.codec.CodecsAutoConfiguration, org.springframework.boot.autoconfigure.influx.InfluxDbAutoConfiguration, org.springframework.boot.autoconfigure.info.ProjectInfoAutoConfiguration, org.springframework.boot.autoconfigure.integration.IntegrationAutoConfiguration, org.springframework.boot.autoconfigure.jackson.JacksonAutoConfiguration, org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration, org.springframework.boot.autoconfigure.jdbc.JdbcTemplateAutoConfiguration, org.springframework.boot.autoconfigure.jdbc.JndiDataSourceAutoConfiguration, org.springframework.boot.autoconfigure.jdbc.XADataSourceAutoConfiguration, org.springframework.boot.autoconfigure.jdbc.DataSourceTransactionManagerAutoConfiguration, org.springframework.boot.autoconfigure.jms.JmsAutoConfiguration, org.springframework.boot.autoconfigure.jmx.JmxAutoConfiguration, org.springframework.boot.autoconfigure.jms.JndiConnectionFactoryAutoConfiguration, org.springframework.boot.autoconfigure.jms.activemq.ActiveMQAutoConfiguration, org.springframework.boot.autoconfigure.jms.artemis.ArtemisAutoConfiguration, org.springframework.boot.autoconfigure.groovy.template.GroovyTemplateAutoConfiguration, org.springframework.boot.autoconfigure.jersey.JerseyAutoConfiguration, org.springframework.boot.autoconfigure.jooq.JooqAutoConfiguration, org.springframework.boot.autoconfigure.jsonb.JsonbAutoConfiguration, org.springframework.boot.autoconfigure.kafka.KafkaAutoConfiguration, org.springframework.boot.autoconfigure.ldap.embedded.EmbeddedLdapAutoConfiguration, org.springframework.boot.autoconfigure.ldap.LdapAutoConfiguration, org.springframework.boot.autoconfigure.liquibase.LiquibaseAutoConfiguration, org.springframework.boot.autoconfigure.mail.MailSenderAutoConfiguration, org.springframework.boot.autoconfigure.mail.MailSenderValidatorAutoConfiguration, org.springframework.boot.autoconfigure.mongo.embedded.EmbeddedMongoAutoConfiguration, org.springframework.boot.autoconfigure.mongo.MongoAutoConfiguration, org.springframework.boot.autoconfigure.mongo.MongoReactiveAutoConfiguration, org.springframework.boot.autoconfigure.mustache.MustacheAutoConfiguration, org.springframework.boot.autoconfigure.orm.jpa.HibernateJpaAutoConfiguration, org.springframework.boot.autoconfigure.quartz.QuartzAutoConfiguration, org.springframework.boot.autoconfigure.reactor.core.ReactorCoreAutoConfiguration, org.springframework.boot.autoconfigure.security.servlet.SecurityAutoConfiguration, org.springframework.boot.autoconfigure.security.servlet.UserDetailsServiceAutoConfiguration, org.springframework.boot.autoconfigure.security.servlet.SecurityFilterAutoConfiguration, org.springframework.boot.autoconfigure.security.reactive.ReactiveSecurityAutoConfiguration, org.springframework.boot.autoconfigure.security.reactive.ReactiveUserDetailsServiceAutoConfiguration, org.springframework.boot.autoconfigure.sendgrid.SendGridAutoConfiguration, org.springframework.boot.autoconfigure.session.SessionAutoConfiguration, org.springframework.boot.autoconfigure.security.oauth2.client.servlet.OAuth2ClientAutoConfiguration, org.springframework.boot.autoconfigure.security.oauth2.client.reactive.ReactiveOAuth2ClientAutoConfiguration, org.springframework.boot.autoconfigure.security.oauth2.resource.servlet.OAuth2ResourceServerAutoConfiguration, org.springframework.boot.autoconfigure.security.oauth2.resource.reactive.ReactiveOAuth2ResourceServerAutoConfiguration, org.springframework.boot.autoconfigure.solr.SolrAutoConfiguration, org.springframework.boot.autoconfigure.task.TaskExecutionAutoConfiguration, org.springframework.boot.autoconfigure.task.TaskSchedulingAutoConfiguration, org.springframework.boot.autoconfigure.thymeleaf.ThymeleafAutoConfiguration, org.springframework.boot.autoconfigure.transaction.TransactionAutoConfiguration, org.springframework.boot.autoconfigure.transaction.jta.JtaAutoConfiguration, org.springframework.boot.autoconfigure.validation.ValidationAutoConfiguration, org.springframework.boot.autoconfigure.web.client.RestTemplateAutoConfiguration, org.springframework.boot.autoconfigure.web.embedded.EmbeddedWebServerFactoryCustomizerAutoConfiguration, org.springframework.boot.autoconfigure.web.reactive.HttpHandlerAutoConfiguration, org.springframework.boot.autoconfigure.web.reactive.ReactiveWebServerFactoryAutoConfiguration, org.springframework.boot.autoconfigure.web.reactive.WebFluxAutoConfiguration, org.springframework.boot.autoconfigure.web.reactive.error.ErrorWebFluxAutoConfiguration, org.springframework.boot.autoconfigure.web.reactive.function.client.ClientHttpConnectorAutoConfiguration, org.springframework.boot.autoconfigure.web.reactive.function.client.WebClientAutoConfiguration, org.springframework.boot.autoconfigure.web.servlet.DispatcherServletAutoConfiguration, org.springframework.boot.autoconfigure.web.servlet.ServletWebServerFactoryAutoConfiguration, org.springframework.boot.autoconfigure.web.servlet.error.ErrorMvcAutoConfiguration, org.springframework.boot.autoconfigure.web.servlet.HttpEncodingAutoConfiguration, org.springframework.boot.autoconfigure.web.servlet.MultipartAutoConfiguration, org.springframework.boot.autoconfigure.web.servlet.WebMvcAutoConfiguration, org.springframework.boot.autoconfigure.websocket.reactive.WebSocketReactiveAutoConfiguration, org.springframework.boot.autoconfigure.websocket.servlet.WebSocketServletAutoConfiguration, org.springframework.boot.autoconfigure.websocket.servlet.WebSocketMessagingAutoConfiguration, org.springframework.boot.autoconfigure.webservices.WebServicesAutoConfiguration, org.springframework.boot.autoconfigure.webservices.client.WebServiceTemplateAutoConfiguration
在SpringBoot的autoconfigure依赖包中的META-INF文件下的spring.factories文件中，我们可以找到以上内容。
总结来说，@EnableAutoConfiguration能实现自动配置的原理就是：SpringFactoriesLoader从classpath中搜寻所有META-INF/spring.fatories文件，并将其中Key[org.springframework.boot.autoconfigure.EnableAutoConfiguration]对应的Value配置项通过反射的方式实例化为对应的标注了@Configuration的JavaConfig形式的IoC容器配置类，然后汇总到当前使用的IoC容器中。
@ComponentScan注解在Spring Boot启动的时候其实不是必需的！因为我们知道作为Spring框架里的老成员，@ComponentScan的功能就是自动扫描并加载复合条件的组件或Bean定义，最终将这些Bean定义加载到当前使用的容器中。这个过程，我们可以手工单个进行注册，不是一定要通过这个注解批量扫描和注册，所以说@ComponentScan是非必需的。
所以，如果我们当前应用没有任何Bean定义需要通过@ComponentScan加载到当前SpringBoot应用对应的IoC容器，那么，去掉@ComponentScan注解，当前的SpringBoot应用依旧可以完美运行！
SpringBoot内置http编码功能为例分析自动配置过程
