K8S-LoadBalancer-kube-vip-部署

kube-vip 端口

• kube-vip 端口;6443
• 服务 端口;443;8443

部署须知;

• 如果没有云厂商LB 服务;且想实现vip 访问;基于k8s LoadBalancer 的方式;可以使用kube-vip 来实现

查看环境是否安装了kube-vip;

kube-vip部署

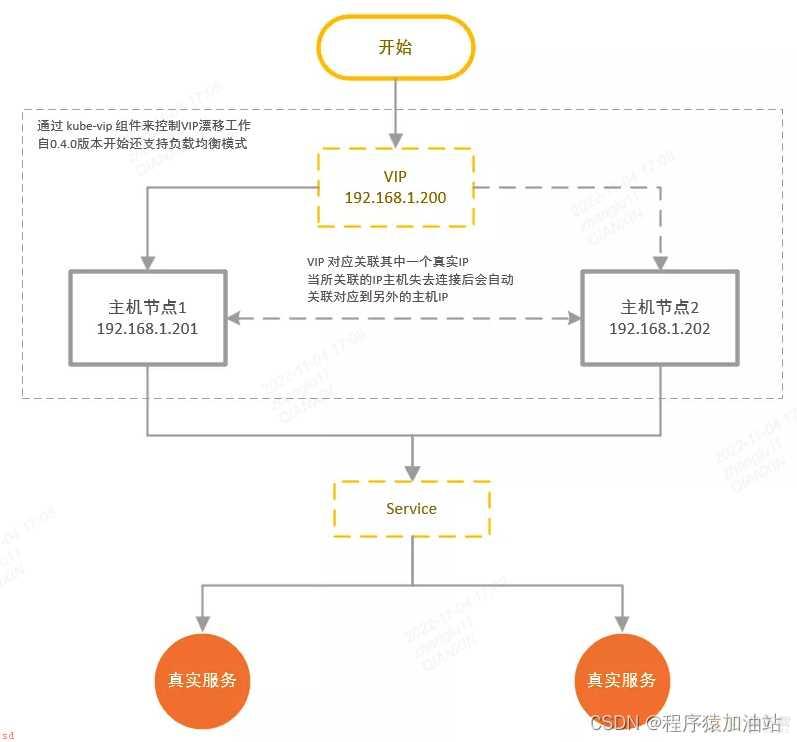

kube-vip 介绍

vip 顾名思义 虚拟 IP;从应用场景上来讲;kube-vip 实现的最终结果就是我们常说的 Keepalived 高可用方案。

部署;

本次部署kube-vip 是通过DaemoneSet 的 ARP 方式来部署。

方式一;通过现有yaml 文件部署

kube-vip-ds.yaml

apiVersion: apps/v1
kind: DaemonSet
metadata:
  creationTimestamp: null
  labels:
    app.kubernetes.io/name: kube-vip-ds
    app.kubernetes.io/version: v0.5.0
  name: kube-vip-ds
  namespace: kube-system
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: kube-vip-ds
  template:
    metadata:
      creationTimestamp: null
      labels:
        app.kubernetes.io/name: kube-vip-ds
        app.kubernetes.io/version: v0.5.0
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: node-role.kubernetes.io/master
                operator: Exists
            - matchExpressions:
              - key: node-role.kubernetes.io/control-plane
                operator: Exists
      containers:
      - args:
        - manager
        env:
        - name: vip_arp
          value: ;true;
        - name: port
          value: ;6443;
        - name: vip_interface
          value: eth0  # 主机的网卡
        - name: vip_cidr
          value: ;32;
        - name: cp_enable
          value: ;true;
        - name: cp_namespace
          value: kube-system
        - name: vip_dDNS
          value: ;false;
        - name: svc_enable
          value: ;true;
        - name: vip_leaderelection
          value: ;true;
        - name: vip_leaseduration
          value: ;5;
        - name: vip_renewdeadline
          value: ;3;
        - name: vip_retryperiod
          value: ;1;
        - name: prometheus_server
          value: :2112
        - name: address
          value: ;10.90.41.20; #设置vip
        image: ghcr.io/kube-vip/kube-vip:v0.5.0
        imagePullPolicy: IfNotPresent
        name: kube-vip
        resources: {}
        securityContext:
          capabilities:
            add:
            - NET_ADMIN
            - NET_RAW
      hostNetwork: true
      serviceAccountName: kube-vip
      tolerations:
      - effect: NoSchedule
        operator: Exists
      - effect: NoExecute
        operator: Exists
  updateStrategy: {}
status:
  currentNumberScheduled: 0
  desiredNumberScheduled: 0
  numberMisscheduled: 0
  numberReady: 0

piVersion: v1
kind: ServiceAccount
metadata:
  name: kube-vip
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: ;true;
  name: system:kube-vip-role
rules:
  - apiGroups: [;;]
    resources: [;services;, ;services/status;, ;nodes;, ;endpoints;]
    verbs: [;list;,;get;,;watch;, ;update;]
  - apiGroups: [;coordination.k8s.io;]
    resources: [;leases;]
    verbs: [;list;, ;get;, ;watch;, ;update;, ;create;]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: system:kube-vip-binding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:kube-vip-role
subjects:
- kind: ServiceAccount
  name: kube-vip
  namespace: kube-system

kubectl apply -f rbac.yaml
kubectl apply -f kube-vip-ds.yaml

alias kube-vip=;docker run --network host --rm ghcr.io/kube-vip/kube-vip:$KVVERSION;

kube-vip manifest daemonset
    --interface $INTERFACE
    --address $VIP
    --inCluster
    --taint
    --controlplane
    --services
    --arp
    --leaderElection | tee kube-vip-ds.yaml

kubectl apply -f rbac.yaml  # rbac 文件用预先生成的就可以
kubectl apply -f kube-vip-ds.yaml

# 执行以下命令;
kubectl edit svc service-name
# 在spec 中增加 loadBalancerIP;vip
