k8s部署之kubesphere安装以及使用

时间：2022-09-24 11:56:35人气：次作者：快盘下载我要评论

安装前须知

kubesphere官方文档：https://v3-1.docs.kubesphere.io/zh/docs/ 多节点安装文档：https://v3-1.docs.kubesphere.io/zh/docs/installing-on-linux/introduction/multioverview/ 离线安装官方文档：https://v3-1.docs.kubesphere.io/zh/docs/installing-on-linux/introduction/air-gapped-installation/

前提环境

正式环境机器配置

k8s部署之kubesphere安装以及使用

机器配置 主机名 IP地址 最低要求 说明 master14 192.168.239.14 CPU: 2 核，内存：4 G，硬盘：80 G master14节点 node22 192.168.239.22 CPU: 1 核，内存：1 G，硬盘：50 G node22节点 node23 192.168.239.23 CPU: 1 核，内存：1 G，硬盘：50 G node23节点 node24 192.168.239.23 CPU: 1 核，内存：1 G，硬盘：50 G harbor私服 温馨提示：这是针对于本地通过vm采用离线部署的最低配置（配置vm硬盘50G，并不代表直接就分配50，是虚拟的哦~） socat、conntrack、ebtables、ipset，如果有网络就直接yum install -y 安装

docker-安装教程 docker-compose Harbor--安装教程

在足够安全的外部防护下，可以永久关闭selinux

setenforce 0
sed -i 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
systemctl stop firewalld && systemctl disable firewalld
swapoff -a
sed -i 's/.*swap.*/#&/' /etc/fstab

Docker

docker在线安装详细教程---安装

温馨提示：以下为政务内网的离线安装~

下载安装包

Docker版本必须大于19.3.8+Docker下载地址：https://download.docker.com/linux/static/stable/x86_64/

选择合适的docker版本

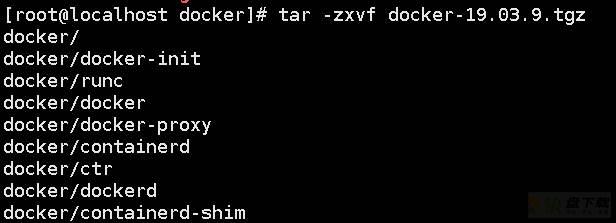

解压缩

 tar -zxvf docker-19.03.9.tgz

Docker

移动文件

解压的docker文件夹全部移动至/usr/bin目录

cp docker/* /usr/bin/

将Docker注册为系统服务docker.service

[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service
Wants=network-online.target
[Service]
Type=notify
ExecStart=/usr/bin/dockerd
ExecReload=/bin/kill -s HUP $MAINPID
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
TimeoutStartSec=0
Delegate=yes
KillMode=process
Restart=on-failure
StartLimitBurst=3
StartLimitInterval=60s
[Install]
WantedBy=multi-user.target
#依次执行以下脚本
vi /etc/systemd/system/docker.service
chmod +x /etc/systemd/system/docker.service
systemctl daemon-reload && systemctl start docker && systemctl enable docker.service
docker -v

vi /etc/docker/daemon.json填入以下内容：

{
  "registry-mirrors": [
    "https://sq9p56f6.mirror.aliyuncs.com"
  ],
  "insecure-registries": ["IP:8088"],
  "exec-opts":["native.cgroupdriver=systemd"]
}

Docker-compose

下载安装包

Docker-Compose下载路径：https://github.com/docker/compose/releases/download/1.24.1/docker-compose-Linux-x86_64

选择合适的docker版本

配置

#依次执行一下命令
#重命名
mv docker-compose-Linux-x86_64 docker-compose
#修改权限
chmod +x docker-compose
#将docker-compose文件移动到了/usr/local/bin
mv docker-compose /usr/local/bin
#打开/etc/profile文件
vi /etc/profile
#添加内容到文件末尾即可,然后保存退出
export PATH=$JAVA_HOME:/usr/local/bin:$PATH
#重新加载配置文件,让其生效
source /etc/profile
#测试
docker-compose

Harbor

Harbor详细教程---安装

默认你有harbor包

#解压
tar -zxvf harbor-offline-installer-v2.5.0-rc4.tgz
cp harbor.yml.tmpl harbor.yml
#注释掉htps的配置内容，配置htp相关的参数，主要是hostname，port，其他都可以不用动。
vi harbor.yml
#启动
./prepare
./install.sh

kubesphere及k8s安装

离线安装

您可以根据自己的需求变更下载的 Kubernetes 版本。安装 KubeSphere v3.1.1 的建议 Kubernetes 版本：v1.17.9，v1.18.8，v1.19.8 以及 v1.20.4。如果不指定 Kubernetes 版本，KubeKey 将默认安装 Kubernetes v1.19.8。有关受支持的 Kubernetes 版本的更多信息，请参见支持矩阵。 运行脚本后，会自动创建一个文件夹 kubekey。请注意，您稍后创建集群时，该文件和 kk 必须放在同一个目录下。

#已有就无需下载
#下载镜像清单：
curl -L -O https://github.com/kubesphere/ks-installer/releases/download/v3.1.1/images-list.txt
#下载 offline-installation-tool.sh
curl -L -O https://github.com/kubesphere/ks-installer/releases/download/v3.1.1/offline-installation-tool.sh
#文件可执行。
chmod +x offline-installation-tool.sh
# IP:8088->私服仓库的ip+端口
./offline-installation-tool.sh -l images-list.txt -d ./kubesphere-images -r IP:8088/library
#解压进入目录：
chmod +x kk
#指定对应版本  kk文件中有yaml就无需操作此步
./kk create config --with-kubernetes v1.20.4 --with-kubesphere v3.1.1 -f config-sample.yaml

#编辑，yaml文件放在后
vim config-sample.yaml

#指定要纳入集群的机器 spec.hosts
#指定主节点 spec.roleGroups.etcd spec.roleGroups.master
#指定工作节点 spec.roleGroups.worker
#添加私服地址 registry.insecureRegistries

#执行
./kk create cluster -f config-sample.yaml

config-sample.yaml

apiVersion: kubekey.kubesphere.io/v1alpha1
kind: Cluster
metadata:
  name: sample
spec:
  hosts:
  - {name: master14, address: 192.168.239.14, internalAddress: 192.168.239.14, port: 22, user: root, password: 123456}
  - {name: node22, address: 192.168.239.22, internalAddress: 192.168.239.22, port: 22, user: root, password: 123456}
  - {name: node23, address: 192.168.239.23, internalAddress: 192.168.239.23, port: 22, user: root, password: 123456}
  roleGroups:
    etcd:
    - master14
    master:
    - master14
    worker:
    - node22
    - node23
  controlPlaneEndpoint:
    domain: lb.kubesphere.local
    address: ""
    port: 6443
  kubernetes:
    version: v1.19.8
    imageRepo: kubesphere
    clusterName: cluster.local
  network:
    plugin: calico
    kubePodsCIDR: 10.233.64.0/18
    kubeServiceCIDR: 10.233.0.0/18
  registry:
    registryMirrors: []
    insecureRegistries: ["192.168.239.24:8088"]
    privateRegistry: 192.168.239.24:8088/library
  addons: []


---
apiVersion: installer.kubesphere.io/v1alpha1
kind: ClusterConfiguration
metadata:
  name: ks-installer
  namespace: kubesphere-system
  labels:
    version: v3.1.1
spec:
  persistence:
    storageClass: ""
  authentication:
    jwtSecret: ""
  zone: ""
  local_registry: ""
  etcd:
    monitoring: false
    endpointIps: localhost
    port: 2379
    tlsEnable: true
  common:
    redis:
      enabled: false
    redisVolumSize: 2Gi
    openldap:
      enabled: false
    openldapVolumeSize: 2Gi
    minioVolumeSize: 20Gi
    monitoring:
      endpoint: http://prometheus-operated.kubesphere-monitoring-system.svc:9090
    es:
      elasticsearchMasterVolumeSize: 4Gi
      elasticsearchDataVolumeSize: 20Gi
      logMaxAge: 7
      elkPrefix: logstash
      basicAuth:
        enabled: false
        username: ""
        password: ""
      externalElasticsearchUrl: ""
      externalElasticsearchPort: ""
  console:
    enableMultiLogin: true
    port: 30880
  alerting:
    enabled: false
    # thanosruler:
    #   replicas: 1
    #   resources: {}
  auditing:
    enabled: false
  devops:
    enabled: true
    jenkinsMemoryLim: 2Gi
    jenkinsMemoryReq: 1500Mi
    jenkinsVolumeSize: 8Gi
    jenkinsJavaOpts_Xms: 512m
    jenkinsJavaOpts_Xmx: 512m
    jenkinsJavaOpts_MaxRAM: 2g
  events:
    enabled: false
    ruler:
      enabled: true
      replicas: 2
  logging:
    enabled: false
    logsidecar:
      enabled: true
      replicas: 2
  metrics_server:
    enabled: false
  monitoring:
    storageClass: ""
    prometheusMemoryRequest: 400Mi
    prometheusVolumeSize: 20Gi
  multicluster:
    clusterRole: none
  network:
    networkpolicy:
      enabled: false
    ippool:
      type: none
    topology:
      type: none
  openpitrix:
    store:
      enabled: false
  servicemesh:
    enabled: false
  kubeedge:
    enabled: false
    cloudCore:
      nodeSelector: {"node-role.kubernetes.io/worker": ""}
      tolerations: []
      cloudhubPort: "10000"
      cloudhubQuicPort: "10001"
      cloudhubHttpsPort: "10002"
      cloudstreamPort: "10003"
      tunnelPort: "10004"
      cloudHub:
        advertiseAddress:
          - ""
        nodeLimit: "100"
      service:
        cloudhubNodePort: "30000"
        cloudhubQuicNodePort: "30001"
        cloudhubHttpsNodePort: "30002"
        cloudstreamNodePort: "30003"
        tunnelNodePort: "30004"
    edgeWatcher:
      nodeSelector: {"node-role.kubernetes.io/worker": ""}
      tolerations: []
      edgeWatcherAgent:
        nodeSelector: {"node-role.kubernetes.io/worker": ""}
        tolerations: []

在线安装

适用于能访问互联网的环境

#找一个合适的目录
export KKZONE=cn;
curl -sfL https://get-kk.kubesphere.io | VERSION=v1.1.1 sh -
chmod +x kk
./kk create config --with-kubernetes v1.20.4 --with-kubesphere v3.1.1 -f config-sample.yaml
#编辑yaml
vim config-sample.yaml

#添加私服地址 registry.insecureRegistries
#指定要纳入集群的机器 spec.hosts
#指定主节点 spec.roleGroups.etcd spec.roleGroups.master
#指定工作节点 spec.roleGroups.worker

#执行
./kk create cluster -f config-sample.yaml

温馨提示

自行安装docker。在未安装docker时，kk会自动安装docker，但建议docker自行安装，并且进行相应配置的设置。 在机器硬盘不够大时，建议挂载外部存储。docker默认挂载目录是/var/lib/docker，绝大多数下本机硬盘不可能有这么大，必须要将docker容器的存储挂载到外置存储上去。 设置好镜像私服。由于后续拉各类包都要依赖私仓，如果现在不设置，在k8s安装完成后发现无法拉镜像，这时再去改daemon.json需要重启docker，这是一个比较危险的行为。 在安装前可以先启用部分插件，但是尽量在安装后再去启用，以免超过k8安装的超时时间（简单来说就是config-sample.yaml中的参数，除了私仓、机器配置，其他的一概不要动） 安装完成后会提示访问地址是多少，按照控制台提示去登录即可，账号密码都在控制台上，安装过程大概要20分钟左右 K8S集群的关闭是比较危险的行为，存在掉电风险的客户现场，不是很建议使用本方案，虽然掉电后无法启动集群是小概率事件，但是一旦出现就要卸载集群重装，虽然只是一句命令的事，但是会有几十分钟的空窗时间。如果一定要部署，请一定要有备用的逻辑部署方案可以随时切换。

应用

步骤：

开启日志组件启动可插拔组件创建企业空间创建项目管理配置镜像仓库安装相应的环境(nacos、xxljob、redis、mysql)自制服务应用访问 -> OK

建议mysql外部安装

前期准备

开启日志组件启动可插拔组件

进入default集群管理

https

进入ClusterConfiguration对象

容器

开启日志组件和可插拔组件(流水线)

网络安全

配置镜像仓库

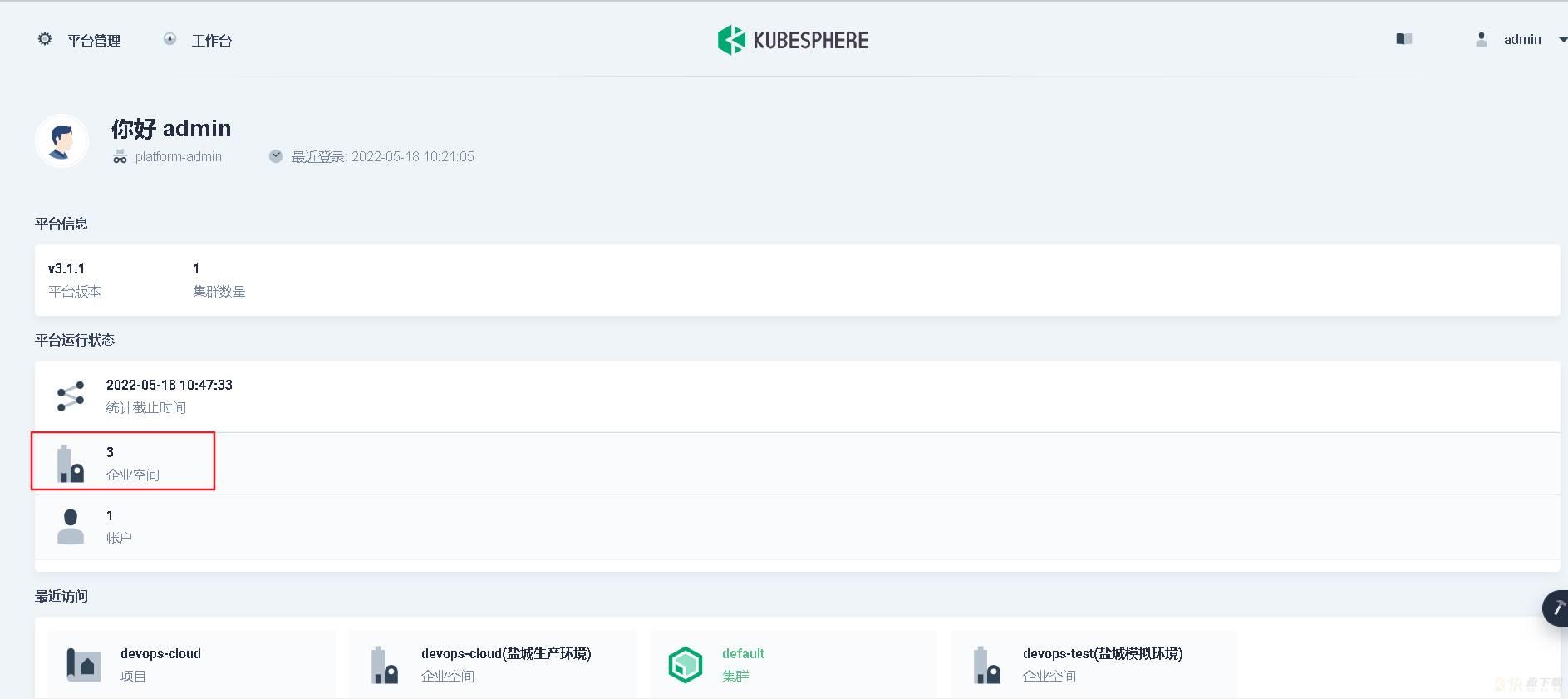

进入企业空间管理

容器

创建企业空间

Docker

创建项目管理

Docker

配置镜像仓库

容器

自制服务应用

容器

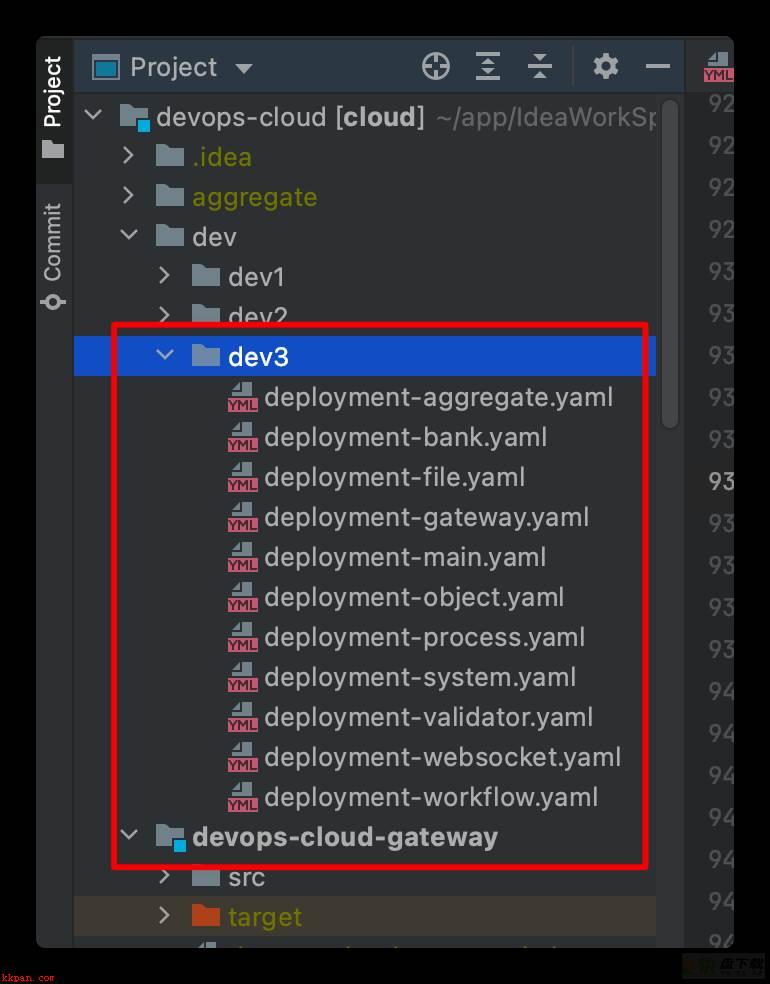

本文采用的是yml的方式进行自制应用的构建，不同的项目只需要修改企业空间、镜像仓库以及数据库即可。温馨提示：本文是基于已有数据库以及项目上传到镜像仓库的前提下进行操作~

（1）nacos

apiVersion: app.k8s.io/v1beta1
kind: Application
metadata:
  name: nacos
  namespace: devops-cloud
  labels:
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: nacos
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  selector:
    matchLabels:
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: nacos
  addOwnerRef: true
  componentKinds:
    - group: ''
      kind: Service
    - group: apps
      kind: Deployment
    - group: apps
      kind: StatefulSet
    - group: extensions
      kind: Ingress
    - group: servicemesh.kubesphere.io
      kind: Strategy
    - group: servicemesh.kubesphere.io
      kind: ServicePolicy
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  namespace: devops-cloud
  labels:
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: nacos
  name: nacos-ingress-i52okm
spec:
  rules: []
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: nacos
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: nacos
  name: nacos-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 1
  selector:
    matchLabels:
      version: v1
      app: nacos
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: nacos
  template:
    metadata:
      labels:
        version: v1
        app: nacos
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: nacos
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-iy6dn0
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/common/nacos-server:2.0.2'
          ports:
            - name: tcp-8848
              protocol: TCP
              containerPort: 8848
              servicePort: 8848
            - name: tcp-9848
              protocol: TCP
              containerPort: 9848
              servicePort: 9848
          env:
            - name: MYSQL_SERVICE_DB_NAME
              value: nacos
            - name: MYSQL_SERVICE_DB_PARAM
              value: >-
                useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&useSSL=false&zeroDateTimeBehavior=convertToNull&serverTimezone=Asia/Shanghai
            - name: MYSQL_SERVICE_HOST
              value: IP
            - name: MYSQL_SERVICE_PASSWORD
              value: 数据库密码
            - name: MYSQL_SERVICE_PORT
              value: '3306'
            - name: MYSQL_SERVICE_USER
              value: root
            - name: SPRING_DATASOURCE_PLATFORM
              value: mysql
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: nacos
              readOnly: false
              mountPath: /home/nacos/data
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: nacos
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: nacos
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: nacos
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: nacos
spec:
  sessionAffinity: None
  selector:
    app: nacos
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: nacos
  template:
    metadata:
      labels:
        version: v1
        app: nacos
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: nacos
  ports:
    - name: tcp-8848
      protocol: TCP
      port: 8848
      targetPort: 8848
    - name: tcp-9848
      protocol: TCP
      port: 9848
      targetPort: 9848
  type: NodePort

（2）xxl-job

apiVersion: app.k8s.io/v1beta1
kind: Application
metadata:
  name: xxl-job
  namespace: devops-cloud
  labels:
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: xxl-job
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  selector:
    matchLabels:
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: xxl-job
  addOwnerRef: true
  componentKinds:
    - group: ''
      kind: Service
    - group: apps
      kind: Deployment
    - group: apps
      kind: StatefulSet
    - group: extensions
      kind: Ingress
    - group: servicemesh.kubesphere.io
      kind: Strategy
    - group: servicemesh.kubesphere.io
      kind: ServicePolicy
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  namespace: devops-cloud
  labels:
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: xxl-job
  name: xxl-job-ingress-j6ldh4
spec:
  rules: []
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: xxl-job
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: xxl-job
  name: xxl-job-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 1
  selector:
    matchLabels:
      version: v1
      app: xxl-job
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: xxl-job
  template:
    metadata:
      labels:
        version: v1
        app: xxl-job
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: xxl-job
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-7qspzi
          imagePullPolicy: IfNotPresent
          pullSecret: harbor
          image: 'IP:8088/common/xxl-job-admin'
          ports:
            - name: http-8094
              protocol: TCP
              containerPort: 8094
              servicePort: 8094
          env:
            - name: MYSQL_SERVICE_DB_NAME
              value: xxl-job
            - name: MYSQL_SERVICE_HOST
              value: IP
            - name: MYSQL_SERVICE_PORT
              value: '3306'
            - name: MYSQL_SERVICE_PASSWORD
              value: 数据库密码
            - name: MYSQL_SERVICE_USER
              value: root
            - name: SPRING_MAIL_HOST
              value: imap.163.com
            - name: SPRING_MAIL_PORT
              value: '143'
            - name: SPRING_MAIL_USERNAME
              value: xk_admin@163.com
            - name: SPRING_MAIL_FROM
              value: xk_admin@163.com
            - name: SPRING_MAIL_PASSWORD
              value: MDBSBUJZFYASSOUS
          volumeMounts:
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: xxl-job
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: xxl-job
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: xxl-job
spec:
  sessionAffinity: None
  selector:
    app: xxl-job
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: xxl-job
  template:
    metadata:
      labels:
        version: v1
        app: xxl-job
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: xxl-job
  ports:
    - name: http-8094
      protocol: TCP
      port: 8094
      targetPort: 8094
  type: NodePort

（3）devops-cloud-cluster

apiVersion: app.k8s.io/v1beta1
kind: Application
metadata:
  name: devops-cloud-cluster
  namespace: devops-cloud
  labels:
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  selector:
    matchLabels:
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  addOwnerRef: true
  componentKinds:
    - group: ''
      kind: Service
    - group: apps
      kind: Deployment
    - group: apps
      kind: StatefulSet
    - group: extensions
      kind: Ingress
    - group: servicemesh.kubesphere.io
      kind: Strategy
    - group: servicemesh.kubesphere.io
      kind: ServicePolicy
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  namespace: devops-cloud
  labels:
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-cloud-cluster-ingress-dydnej
spec:
  rules: []
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-cloud-gateway
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-cloud-gateway-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 4
  selector:
    matchLabels:
      version: v1
      app: devops-cloud-gateway
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-cloud-gateway
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-n68t1b
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/prod/devops-cloud-gateway:latest'
          ports:
            - name: tcp-10001
              protocol: TCP
              containerPort: 10001
              servicePort: 10001
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-cloud-gateway
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: devops-cloud-gateway
spec:
  sessionAffinity: None
  selector:
    app: devops-cloud-gateway
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-cloud-gateway
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
  ports:
    - name: tcp-10001
      protocol: TCP
      port: 10001
      targetPort: 10001
  type: NodePort
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-system
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-system-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 1
  selector:
    matchLabels:
      version: v1
      app: devops-system
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-system
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-bejgi2
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/prod/devops-system'
          ports:
            - name: tcp-10003
              protocol: TCP
              containerPort: 10003
              servicePort: 10003
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-system
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: devops-system
spec:
  sessionAffinity: None
  selector:
    app: devops-system
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-system
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
  ports:
    - name: tcp-10003
      protocol: TCP
      port: 10003
      targetPort: 10003
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-trade-aggregate
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-trade-aggregate-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 4
  selector:
    matchLabels:
      version: v1
      app: devops-trade-aggregate
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-trade-aggregate
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-v6eeyv
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/prod/devops-trade-aggregate'
          ports:
            - name: tcp-10005
              protocol: TCP
              containerPort: 10005
              servicePort: 10005
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-trade-aggregate
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: devops-trade-aggregate
spec:
  sessionAffinity: None
  selector:
    app: devops-trade-aggregate
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-trade-aggregate
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
  ports:
    - name: tcp-10005
      protocol: TCP
      port: 10005
      targetPort: 10005
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-trade-main
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-trade-main-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 4
  selector:
    matchLabels:
      version: v1
      app: devops-trade-main
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-trade-main
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-omhakh
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/prod/devops-trade-main'
          ports:
            - name: tcp-10006
              protocol: TCP
              containerPort: 10006
              servicePort: 10006
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-trade-main
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: devops-trade-main
spec:
  sessionAffinity: None
  selector:
    app: devops-trade-main
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-trade-main
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
  ports:
    - name: tcp-10006
      protocol: TCP
      port: 10006
      targetPort: 10006
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-trade-object
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-trade-object-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 4
  selector:
    matchLabels:
      version: v1
      app: devops-trade-object
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-trade-object
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-rsvqcf
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/prod/devops-trade-object'
          ports:
            - name: tcp-10007
              protocol: TCP
              containerPort: 10007
              servicePort: 10007
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-trade-object
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: devops-trade-object
spec:
  sessionAffinity: None
  selector:
    app: devops-trade-object
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-trade-object
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
  ports:
    - name: tcp-10007
      protocol: TCP
      port: 10007
      targetPort: 10007
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-trade-pay
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-trade-pay-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 1
  selector:
    matchLabels:
      version: v1
      app: devops-trade-pay
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-trade-pay
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-7xq5cc
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/prod/devops-trade-pay'
          ports:
            - name: tcp-10008
              protocol: TCP
              containerPort: 10008
              servicePort: 10008
            - name: tcp-8201
              protocol: TCP
              containerPort: 8201
              servicePort: 8201
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-trade-pay
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: devops-trade-pay
spec:
  sessionAffinity: None
  selector:
    app: devops-trade-pay
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-trade-pay
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
  ports:
    - name: tcp-10008
      protocol: TCP
      port: 10008
      targetPort: 10008
    - name: tcp-8201
      protocol: TCP
      port: 8201
      targetPort: 8201
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-trade-process
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-trade-process-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 1
  selector:
    matchLabels:
      version: v1
      app: devops-trade-process
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-trade-process
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-7e9lc8
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/prod/devops-trade-process'
          ports:
            - name: tcp-10009
              protocol: TCP
              containerPort: 10009
              servicePort: 10009
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-trade-process
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: devops-trade-process
spec:
  sessionAffinity: None
  selector:
    app: devops-trade-process
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-trade-process
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
  ports:
    - name: tcp-10009
      protocol: TCP
      port: 10009
      targetPort: 10009
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-websocket
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-websocket-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 1
  selector:
    matchLabels:
      version: v1
      app: devops-websocket
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-websocket
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-1vn5nf
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/prod/devops-websocket'
          ports:
            - name: tcp-10004
              protocol: TCP
              containerPort: 10004
              servicePort: 10004
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-websocket
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: devops-websocket
spec:
  sessionAffinity: None
  selector:
    app: devops-websocket
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-websocket
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
  ports:
    - name: tcp-10004
      protocol: TCP
      port: 10004
      targetPort: 10004
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-workflow-core
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-workflow-core-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 1
  selector:
    matchLabels:
      version: v1
      app: devops-workflow-core
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-workflow-core
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-u985hw
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/prod/devops-workflow-core'
          ports:
            - name: tcp-10010
              protocol: TCP
              containerPort: 10010
              servicePort: 10010
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-workflow-core
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: devops-workflow-core
spec:
  sessionAffinity: None
  selector:
    app: devops-workflow-core
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-workflow-core
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
  ports:
    - name: tcp-10010
      protocol: TCP
      port: 10010
      targetPort: 10010
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-sign
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  name: devops-sign-v1
  annotations:
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 1
  selector:
    matchLabels:
      version: v1
      app: devops-sign
      app.kubernetes.io/version: v1
      app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-sign
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
      annotations:
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      containers:
        - name: container-u985hw
          imagePullPolicy: Always
          pullSecret: harbor
          image: 'IP:8088/prod/devops-sign'
          ports:
            - name: tcp-10013
              protocol: TCP
              containerPort: 10013
              servicePort: 10013
          volumeMounts:
            - name: host-time
              mountPath: /etc/localtime
              readOnly: true
            - name: app
              readOnly: false
              mountPath: /app
      serviceAccount: default
      affinity: {}
      initContainers: []
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: host-time
        - name: app
          emptyDir: {}
      imagePullSecrets:
        - name: harbor
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
---
apiVersion: v1
kind: Service
metadata:
  namespace: devops-cloud
  labels:
    version: v1
    app: devops-sign
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  annotations:
    kubesphere.io/serviceType: statelessservice
    servicemesh.kubesphere.io/enabled: 'false'
  name: devops-sign
spec:
  sessionAffinity: None
  selector:
    app: devops-sign
    app.kubernetes.io/version: v1
    app.kubernetes.io/name: devops-cloud-cluster
  template:
    metadata:
      labels:
        version: v1
        app: devops-sign
        app.kubernetes.io/version: v1
        app.kubernetes.io/name: devops-cloud-cluster
  ports:
    - name: tcp-10013
      protocol: TCP
      port: 10013
      targetPort: 10013

项目代码配置

pom文件

修改pom连接配置

1、检查nacos的DNS是否一致

2、配置文件名称，组名是否一致

https

项目采用的是nacos

在kubesphere面板服务里查看nacos的外放访问端口，处于哪台服务器，ip+端口/nacos访问nacos

登录nacos添加项目配置文件(跟项目中pom所写保持一致)

https

配置Dockerfile构建构建文件（每个服务都要）

注意：每个服务端口不一致，jar包名称不一致

#设置镜像基础，jdk8
FROM java:8
#维护人员信息
MAINTAINER hetao
#设置镜像对外暴露端口
EXPOSE 10014
ENV TZ=PRC
RUN ln -snf /usr/share/zoneinfo/$TZ /etc/localtime && echo $TZ > /etc/timezone
#将当前 target 目录下的 jar 放置在根目录下，命名为 app.jar，推荐使用绝对路径。
ADD target/devops-validator.jar /devops-validator.jar
#执行启动命令
ENTRYPOINT java ${JVM:=-Xms2048m -Xmx2048m} -Djava.security.egd=file:/dev/./urandom -jar /devops-validator.jar

项目中流水线构建Deployment容器所需的配置文件（每个服务都要）

每个服务配置不一样，主要修改其中的 名称name，命名空间namespace，应用名称app，镜像源地址images，端口tcp

容器

kind: Deployment
apiVersion: apps/v1
metadata:
  name: devops-validator-v1
  namespace: devops-cloud
  labels:
    app: devops-validator
    app.kubernetes.io/name: devops-cloud-cluster
    app.kubernetes.io/version: v1
    version: v1
  annotations:
    deployment.kubernetes.io/reVision: '2'
    kubesphere.io/creator: admin
    servicemesh.kubesphere.io/enabled: 'false'
spec:
  replicas: 1
  selector:
    matchLabels:
      app: devops-validator
      app.kubernetes.io/name: devops-cloud-cluster
      app.kubernetes.io/version: v1
      version: v1
  template:
    metadata:
      labels:
        app: devops-validator
        app.kubernetes.io/name: devops-cloud-cluster
        app.kubernetes.io/version: v1
        version: v1
      annotations:
        kubesphere.io/restartedAt: '2021-12-02T05:13:43.487Z'
        logging.kubesphere.io/logsidecar-config: '{}'
        sidecar.istio.io/inject: 'false'
    spec:
      volumes:
        - name: host-time
          hostPath:
            path: /etc/localtime
            type: ''
        - name: app
          emptyDir: {}
      containers:
        - name: container-bejgi2
          image: 'IP:8080/trade-devops-cloud/devops-validator'
          ports:
            - name: tcp-10014
              containerPort: 10014
              protocol: TCP
          env:
            - name: JVM
              value: '-Xms256m -Xmx256m'
          resources:
            limits:
              cpu: '1'
              memory: 1000Mi
            requests:
              cpu: 500m
              memory: 500Mi
          volumeMounts:
            - name: host-time
              readOnly: true
              mountPath: /etc/localtime
            - name: app
              mountPath: /app
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          imagePullPolicy: Always
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      dnsPolicy: ClusterFirst
      serviceAccountName: default
      serviceAccount: default
      securityContext: {}
      imagePullSecrets:
        - name: harbor
      affinity: {}
      schedulerName: default-scheduler
  strategy:
    type: Recreate
  revisionHistoryLimit: 10
  progressDeadlineSeconds: 600

拉通流水线

创建流水线工程 devops-cloud-auto

创建所需凭证

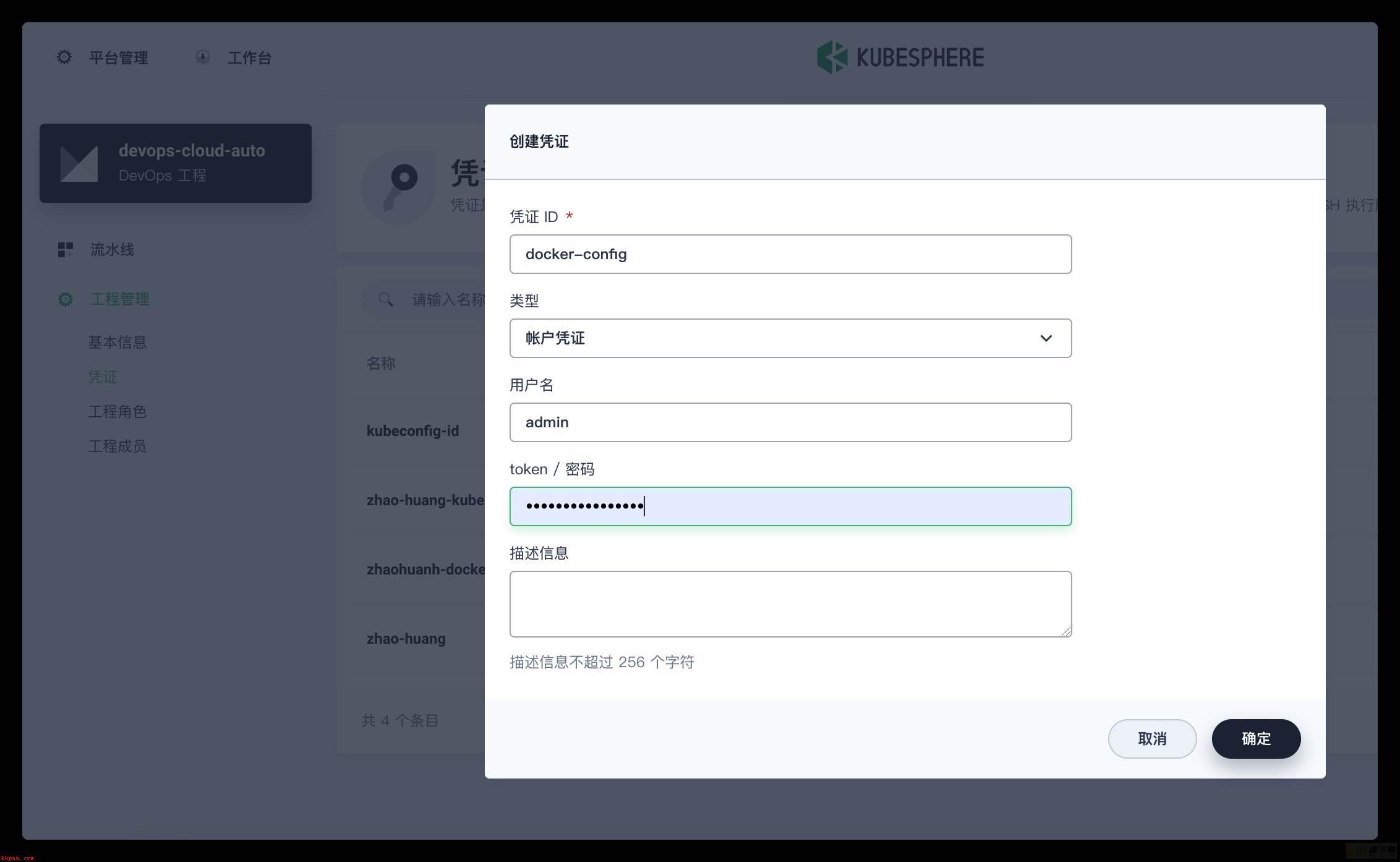

新建镜像仓库凭证

Docker

新建kubeconfig

默认生成

https

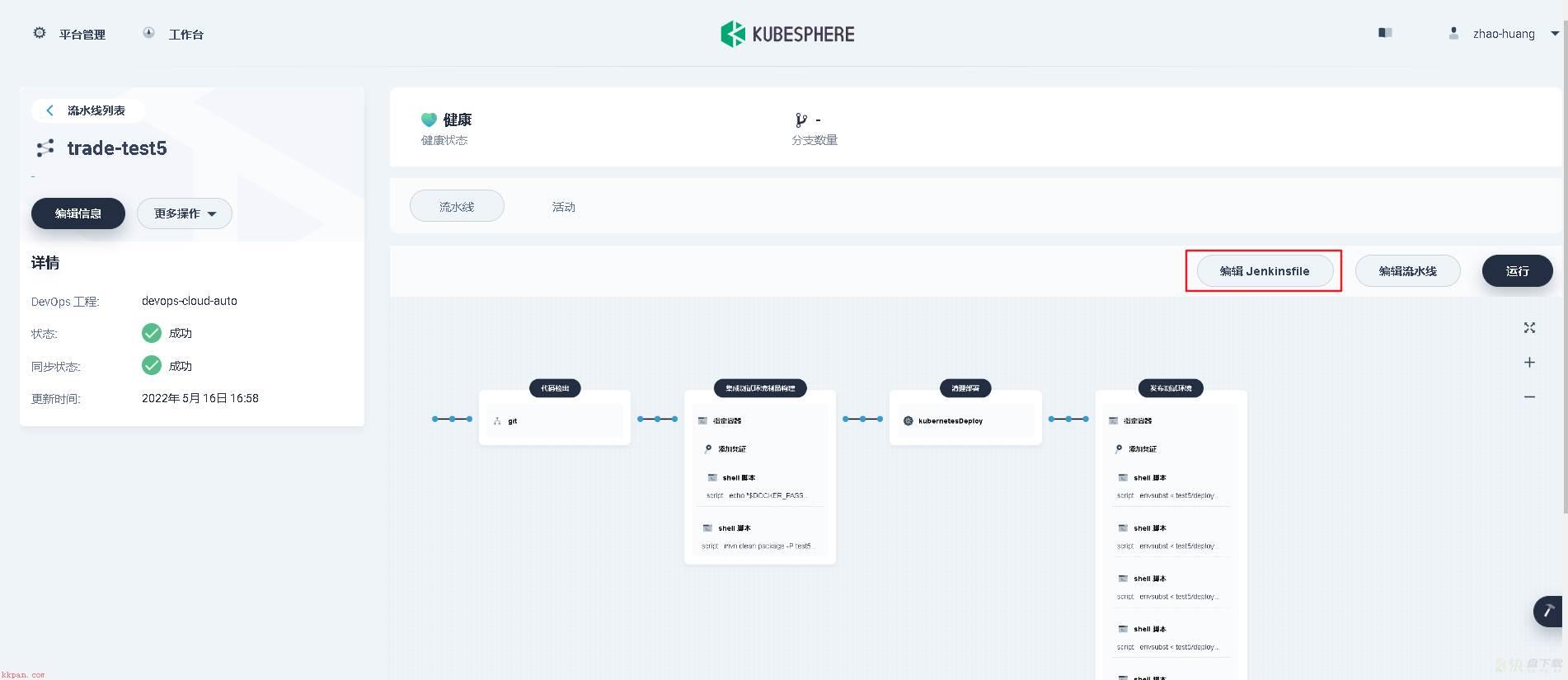

创建流水线

代码检出 集成测试环境构建制品 清理部署 发布测试环境

https

网络安全

注意：在构建制品时项目pom文件中镜像源地址仓库名是否在harbor中有创建，没有的话，运行流水线会报错，需要自己创建仓库

可视化界面创建

代理环境 maven

网络安全

代码检出

凭证是项目代码仓库地址

容器

Docker

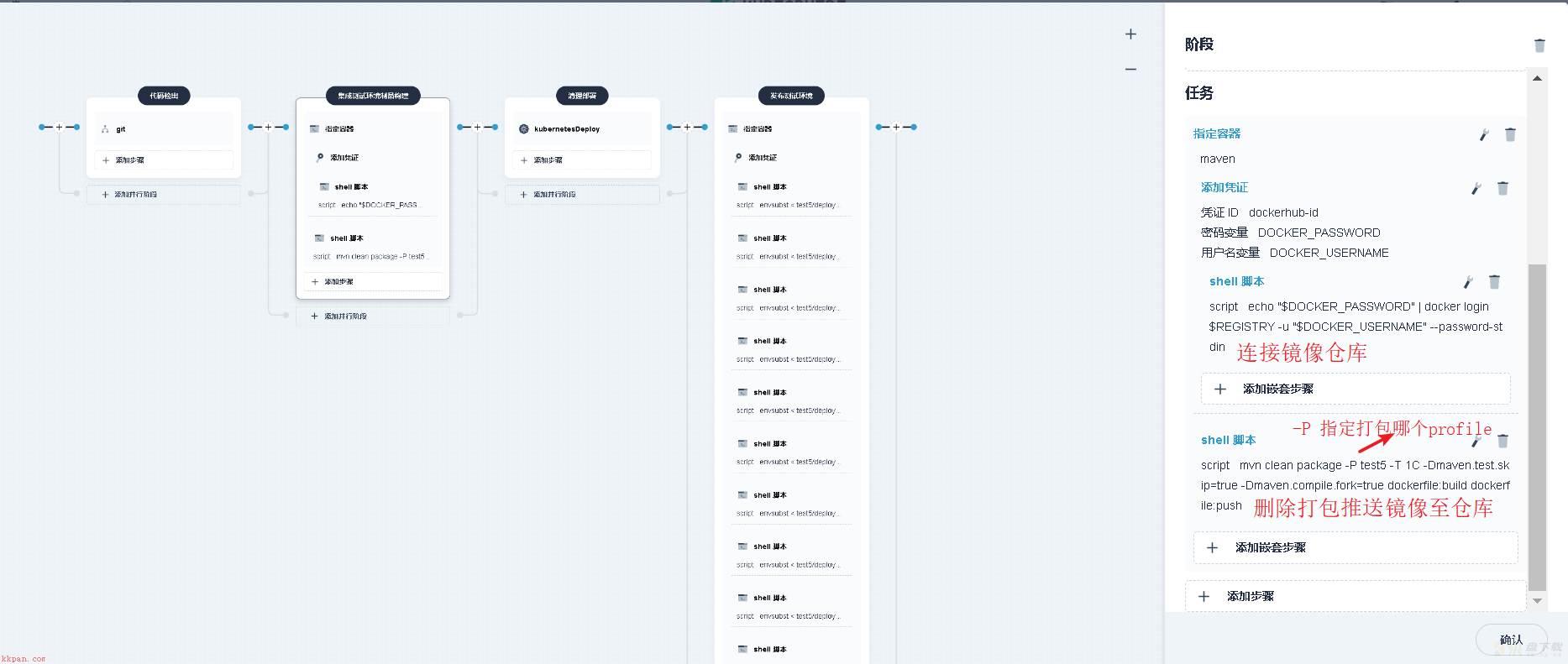

集成测试环境制品构建

网络安全

清理部署

容器

发布测试环境

网络安全

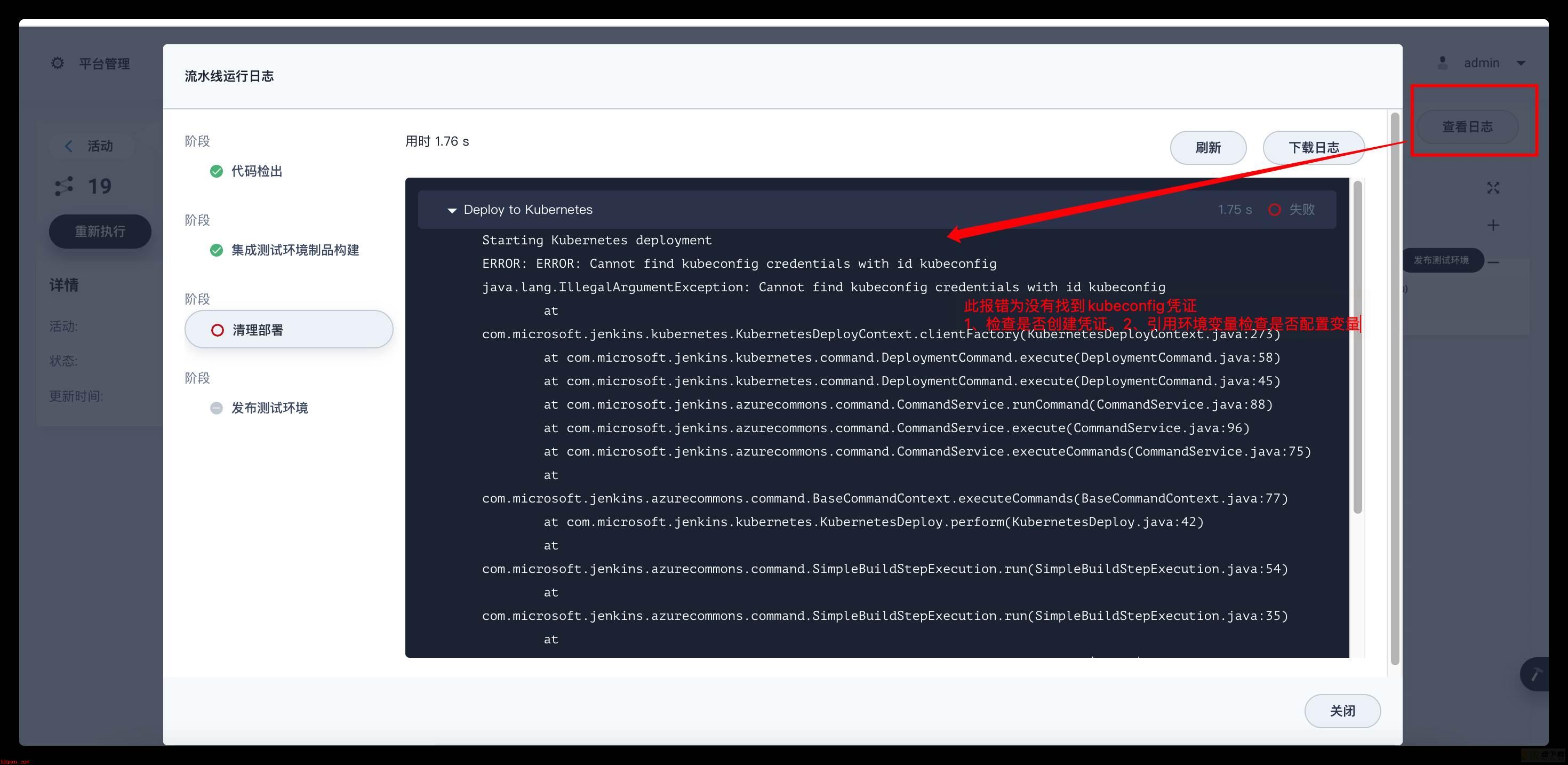

运行部署 失败，点击活动，查看日志。分析报错

网络安全

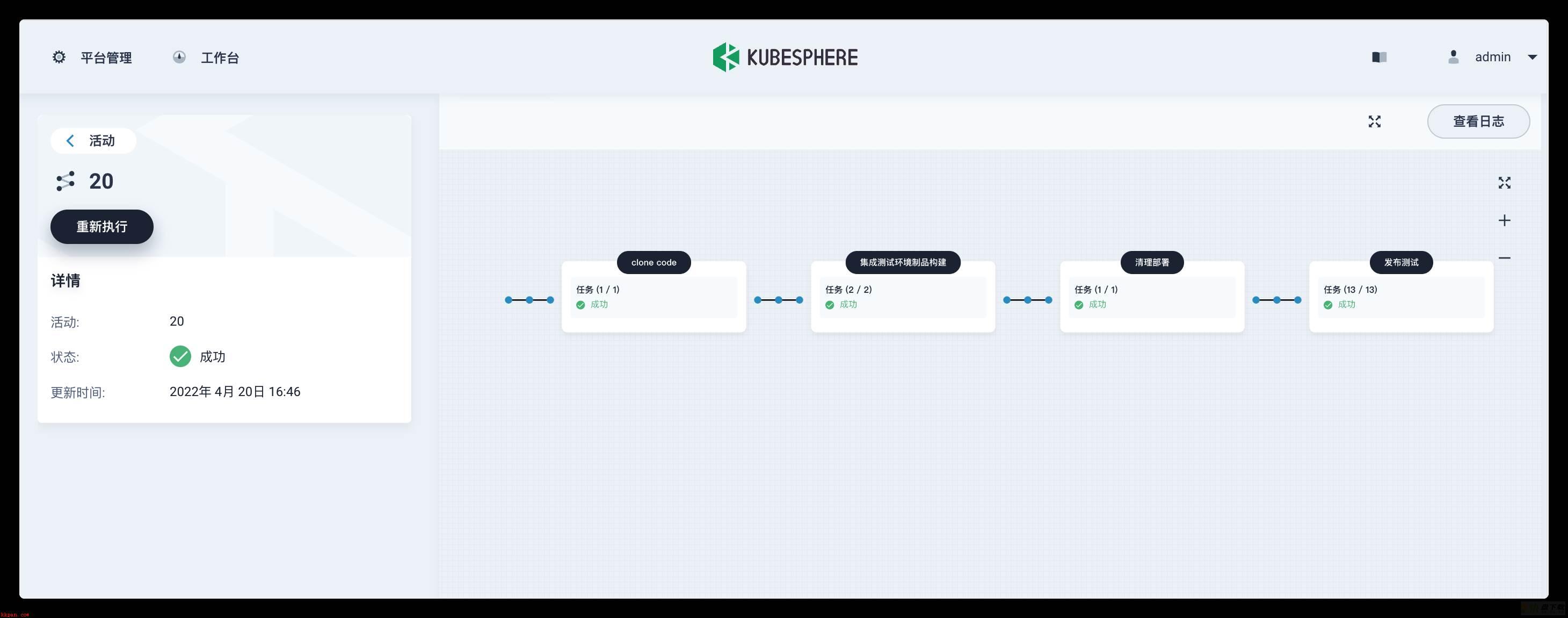

成功，等启动完，查看服务下所有容器的的日志，是否启动完成无报错

Docker

配置文件形式构建

Docker

注意

environment环境变量需要调整 凭证需要调整
pipeline {
  agent {
    node {
      label 'maven'
    }

  }
  stages {
    stage('代码检出') {
      agent none
      steps {
        git(branch: 'dev-yanCheng20220512', url: 'http://IP/devops-studio/devops-cloud.git', credentialsId: 'github-id', changelog: true, poll: false)
      }
    }

    stage('集成测试环境制品构建') {
      agent none
      steps {
        container('maven') {
          withCredentials([usernamePassword(credentialsId : 'dockerhub-id' ,passwordVariable : 'DOCKER_PASSWORD' ,usernameVariable : 'DOCKER_USERNAME' ,)]) {
            sh 'echo "$DOCKER_PASSWORD" | docker login $REGISTRY -u "$DOCKER_USERNAME" --password-stdin'
          }

          sh 'mvn clean package  -P test5 -T 1C -Dmaven.test.skip=true  -Dmaven.compile.fork=true dockerfile:build dockerfile:push'
        }

      }
    }

    stage('清理部署') {
      agent none
      steps {
        kubernetesDeploy(enableConfigSubstitution: true, deleteResource: true, kubeconfigId: 'kubeconfig-id', configs: 'test5/**')
      }
    }

    stage('发布测试环境') {
      agent none
      steps {
        container('maven') {
          withCredentials([
                                                                                                                                                  kubeconfigFile(
                                                                                                                                                                          credentialsId: env.KUBECONFIG_CREDENTIAL_ID,
                                                                                                                                                                          variable: 'KUBECONFIG')
                                                                                                                                                                          ]) {
                sh 'envsubst < test5/deployment-aggregate.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-bank.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-file.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-gateway.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-main.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-object.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-process.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-system.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-websocket.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-workflow.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-analysis.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-sign.yaml | kubectl apply -f -'
                sh 'envsubst < test5/deployment-message.yaml | kubectl apply -f -'
              }

            }

          }
        }

      }
      environment {
        DOCKER_CREDENTIAL_ID = 'dockerhub-id'
        KUBECONFIG_CREDENTIAL_ID = 'kubeconfig-id'
        REGISTRY = 'IP:8088'
      }
    }

其他常见问题

https参数未设置( The protocol is https but attribute ssl_cert is not set)

https

原因分析：顾名思义，一看就知道，https参数未设置，而本就不需要用https 解决方案：配置文件中的https注释掉，注释掉即可

网络安全

启动harbor报( Failed to Setup IP tables: Unable to enable SKIP DNAT rule）

容器

原因分析：之前关闭防火墙之后docker没有重启， 解决方案：执行以下命令重启docker即可 service docker restart

连接私服报(http: server gave HTTP response to HTTPS client)

网络安全

原因分析：Docker Registry 交互默认使用的是 HTTPS，但是搭建私有镜像默认使用的是 HTTP 服务，所以与私有镜像交互时出现以下错误。 解决方案：docker系统服务添加安全进程

vi /etc/docker/daemon.json填入insecure-registries：

{
  "registry-mirrors": [
    "https://sq9p56f6.mirror.aliyuncs.com"
  ],
  "insecure-registries": ["192.168.239.24:8088"],
  "exec-opts":["native.cgroupdriver=systemd"]
}

docker磁盘空间不足（ERROR：cannot create temporary directory）（fatal error: runtime: out of memory）

原因分析：通过du -h --max-depth=1 / 逐级目录排查，发现/var/lib/docker目录文件过大 解决方案：转移数据修改docker默认存储位置 或者 搞一个外部存储

（1）转移数据修改docker默认存储位置

#停止docker服务
systemctl stop docker
#创建新的docker目录，执行命令df -h,找一个大的磁盘
 mkdir -p /app/docker/lib
#迁移/var/lib/docker目录下面的文件到/app/docker/lib
rsync -avz /var/lib/docker/ /app/docker/lib/
#配置 /usr/lib/systemd/system/docker.service
vi /usr/lib/systemd/system/docker.service
#重启docker
systemctl daemon-reload
systemctl restart docker
systemctl enable docker

（2）确认Docker Root Dir修改是否已经生效

[root@node24 docker]# docker info
...
Docker Root Dir: /app/docker/lib/docker
Debug Mode (client): false
Debug Mode (server): false
Registry: https://index.docker.io/v1/
...

（3）确认之前的镜像是否还在

[root@master24 kk]# docker images
REPOSITORY                                                                TAG                            IMAGE ID            CREATED             SIZE
perl                                                                      latest                         f9596eddf06f        5 months ago        890MB
hello-world                                                               latest                         feb5d9fea6a5        8 months ago        13.3kB
192.168.239.24:8088/library/nginxdemos/hello                              plain-text                     21dd11c8fb7a        8 months ago        22.9MB
nginxdemos/hello                                                          plain-text                     21dd11c8fb7a        8 months ago        22.9MB
192.168.239.24:8088/library/kubesphere/edge-watcher                       v0.1.0                         f3c1c017ccd5        8 months ago        47.8MB
kubesphere/edge-watcher                                                   v0.1.0                         f3c1c017ccd5        8 months ago        47.8MB

（4） 确定容器没问题后删除/var/lib/docker/目录中的文件

rm -rf /var/lib/docker

镜像不存在(No such image: perl:latest)

Docker

docker里没有该镜像，pull一个然后给个标记推送至私服即可

连接超过重试次数(connection reset by peer. See 'docker run --help'.)

网络安全

https

（1）情况一

docker默认的源为国外官方源，下载速度较慢，改成国内镜像源

vi /etc/docker/daemon.json填入registry-mirrors：

{
  "registry-mirrors": [
    "https://sq9p56f6.mirror.aliyuncs.com"  #这是我自个阿里云的镜像加速器，你可去阿里弄个自己的
  ],
  "insecure-registries": ["192.168.239.24:8088"],
  "exec-opts":["native.cgroupdriver=systemd"]
}

（2）情况二

harbor出问题了，导致私服连接不上

（3）情况三

config-sample.yaml中配置的私服有问题，导致找不到对应的镜像

上一篇：手撸 webpack4.x 配置（二）[通俗易懂]
下一篇：Flink读取Kafka数据下沉到HDFS

相关文章

  • 用.NET做DDNS动态域名解析和SSL证书申请

    用.NET做DDNS动态域名解析和SSL证书申请,前几天用.NET玩IoT设备，拿出了角落吃灰的Jetson Nano。近期也买了一堆传感器，还在路上，准备到手之后，好好捣鼓一番。Nano设备呢，虽然没有一直开......

  • DirBuster使用教程

    DirBuster使用教程, 2. java -jar DirBuster-1.0-RC1.jar 打开jar文件...

网友评论

快盘下载暂未开通留言功能。

推荐文章

最新文章

文章排行

相关软件

关于我们| 广告联络| 联系我们| 网站帮助| 免责声明| 软件发布

Copyright 2019-2029 【快快下载吧】 版权所有 快快下载吧 | 豫ICP备10006759号公安备案:41010502004165

声明： 快快下载吧上的所有软件和资料来源于互联网，仅供学习和研究使用，请测试后自行销毁,如有侵犯你版权的，请来信指出，本站将立即改正。
