0x00 前言简述 描述: 到目前为止我们了解kubernetes常用的三种暴露服务的方式:LoadBlancer Service、 node Port Service、Ingress
LoadBlancer Service 是kubernetes结合云平台的组件,如国外的GCE,AWS,国内阿里云等等。使用它项使用的底层云平台申请创建负载均衡器来实现,对使用云平台的集群比较方便,但有局限,费用高。NodePort Service 是kubernetes在每个节点上暴露一个相同的端口(默认:30000-32000)但是由于安全和易用方面(服务多了就乱了还有端口冲突问题)且对主机安全性存在一定风险(内网环境,问题不大),所以实际使用并不多,当然对于小规模的集群服务,还是比较不错的。Ingress 是 kubernetes 中对外暴露服务的一种方式,它是使用
nginx 进行反代应用来实现,其特点是安全以及方便统一管理等。
Tips : 此外externalIPs也可以使各类service对外提供服务,但是当集群服务很多的时候,NodePort方式最大的缺点是会占用很多集群机器的端口;LB方式最大的缺点则是每个service一个LB又有点浪费和麻烦,并且需要k8s之外的支持; 而ingress则只需要一个NodePort或者一个LB就可以满足所有service对外服务的需求(便于管理)。
92
Ingress 基础介绍 Q: 什么是负载均衡Ingress?
描述:Ingress 其实就是集群外部访问的一个入口(在kubernetes v1.1时加入),将外部的请求转发到不同的 Server 上,其实就相当于 Nginx、Haproxy 等负载均衡器。
即: Nginx-Ingress 是 Kubernetes 使用 NGINX 作为反向代理和负载平衡器的入口控制器。
internet
|
[ Ingress ]
--|-----|--
[ Services ] Tips : 对于k8s传统的svc来说它仅支持4层代理, 如果需要做七层代理就需要使用k8s官方在1.11中推出了ingress api接口,通过ingress达到7层代理的效果我对于ingress来说必须要绑定一个域名因为它是基于7层代理的
Tips : ingress调度的是后端的service而不是pod.
NGINX 配置
描述: Ingress 控制器的目标是组装一个配置文件(nginx.conf), 当修改配置文件发生任何更改后需要重新加载 NGINX。

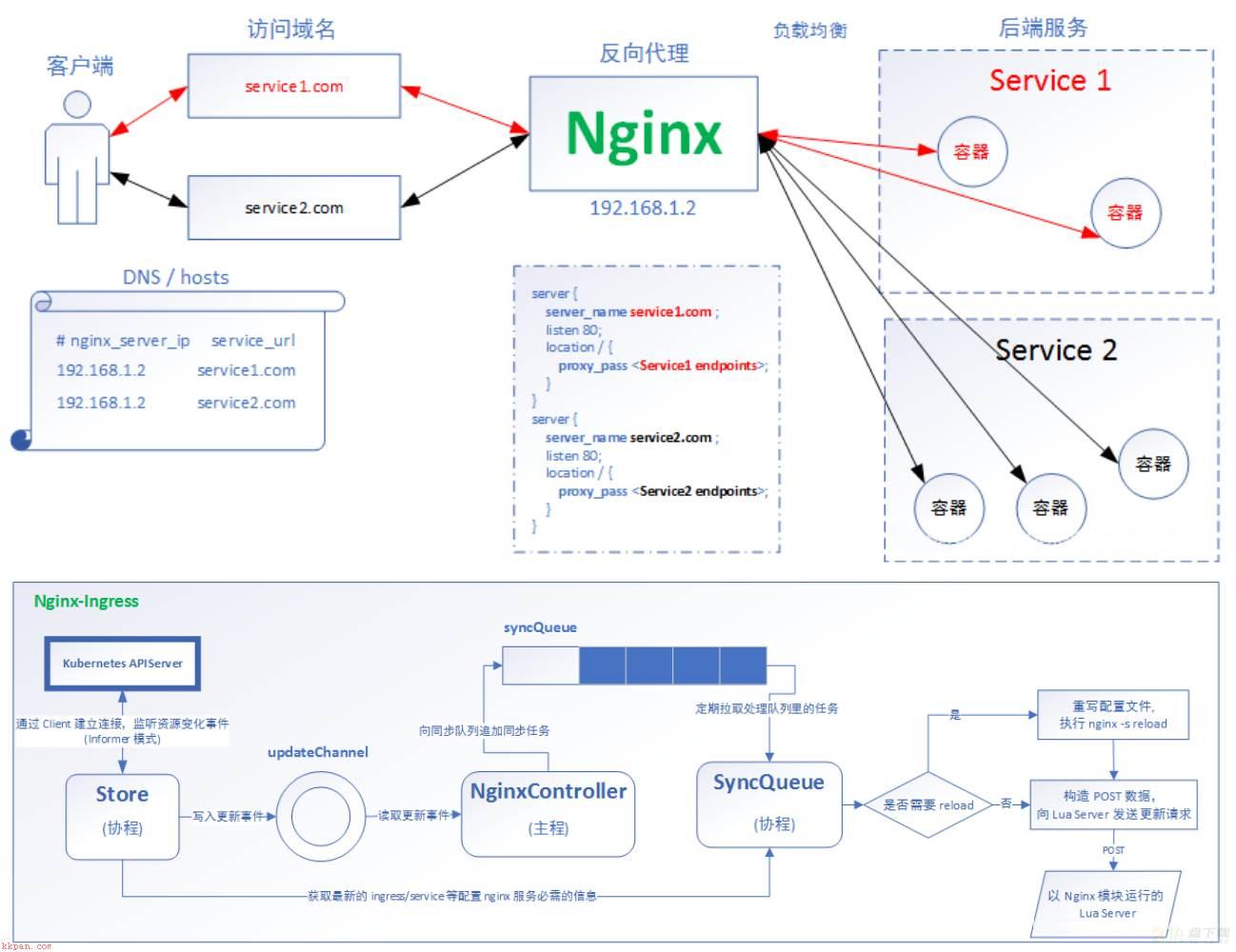

NGINX 模型与构建
描述: Kubernetes 控制器使用同步循环模式来检查控制器中的所需状态是否已更新或是否需要更改。为此,我们需要使用集群中的不同对象构建模型,特别是(无特殊顺序)Ingresses、Services、Endpoints、Secrets 和 Configmaps 以生成反映集群状态的时间点配置文件.
描述: 建立模型是一项昂贵的操作,因此必须使用同步循环。通过使用工作队列,可以不丢失更改并删除使用sync.Mutex来强制同步循环的单次执行,此外还可以在同步循环的开始和结束之间创建一个时间窗口,允许我们丢弃不必要的更新。
Tips: NGINX 配置的最终表示是从Go 模板生成的,使用新模型作为模板所需变量的输入。
Q: ingress-nginx解决了生产环境中哪些问题?
1)动态配置服务:如果按照传统方式,当新增加一个服务时,我们可能需要在流量入口加一个反向代理指向我们新的服务,而使用ingress,只需要配置好ingress,当服务启动时,会自动注册到ingress当中,不需要额外的操作。
2)减少不必要的Port暴露(安全,端口容易管理): 我们知道部署k8s时,是需要关闭
防火墙 的,主要原因是k8s的很多服务会以nodeport方式映射出去,这样对于宿主机来说是非常的不安全的,而ingress可以避免这个问题,只需要将ingress自身服务映射出去,就可代理后端所有的服务,则后端服务不需要映射出去。
Q: ingress-Nginx和ingress-Nginx-Controller的区别?
ingress-Nginx: 是每个服务自己创建的ingress,就是nginx的转发规则,生成Nginx的配置文件ingress-Nginx-Controller: 相当于Nginx的服务,监听API Server,根据用户编写的ingress-nginx规则(ingress.yaml文件),动态的去更改Nginx服务的配置文件,并且reload使其生效,此过程是自动化的通过lua实现
Ingress 实现原理 描述: Ingress 实际上是通过服务发现的功能进行实现,通过它来提供路由信息的刷新, Ingress controller可以理解为一个监视器,不断监听 kube-apiserver 实时感知service、Pod的变化,其再结合Ingress的配置,更新反向代理负载均衡器,达到服务发现的作用。
Ingress 公开了从集群外部到集群内服务的 HTTP 和 HTTPS 路由,流量路由由 Ingress 资源上定义的规则控制,可以将 Ingress 配置为服务提供外部可访问的 URL、负载均衡流量、终止 SSL/TLS,以及提供基于名称的虚拟主机访问。
Tips: Ingress 控制器通常负责通过负载均衡器来实现 Ingress,尽管它也可以配置边缘路由器或其他前端来帮助处理流量,并且ingress不暴露任何端口或协议。
组件组成
描述: 从下图可以看出Ingress-nginx一般由三个组件组成反向代理负载均衡器 , Ingress Controller, Ingress
1)反向代理负载均衡器:通常以service的port方式运行,接收并按照ingress定义的规则进行转发,常用的有nginx,Haproxy,Traefik等,本文中使用的就是nginx。
2)ingress-nginx-Controller: 监听APIServer,根据用户编写的ingress规则(编写ingress的yaml文件),动态地去更改nginx服务的配置文件,并且reload重载使其生效,此过程是自动化的(通过lua脚本来实现)。
3)Ingress:将nginx的配置抽象成一个Ingress对象,当用户每添加一个新的服务,只需要编写一个新的ingress的yaml文件即可。

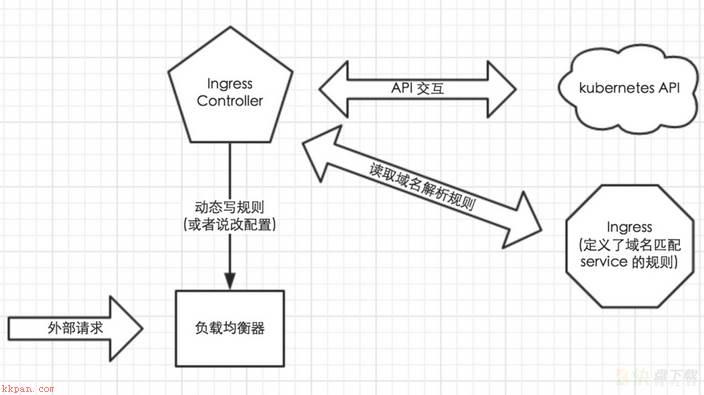

工作流程
1)ingress controller通过和kubernetes api交互,动态的去感知集群中ingress规则变化。
2)然后读取它,按照自定义的规则,规则就是写明了那个域名对应哪个service,生成一段nginx配置。
3)在写到nginx-ingress-controller的pod里,这个Ingress controller的pod里运行着一个Nginx服务,控制器会把生成的nginx配置写入/etc/nginx.conf文件中。
4)最后 reload 一下使配置生效,以此达到分配和动态更新问题。
注意:写入 nginx.conf 的不是service的地址,而是service backend 的 pod 的地址,避免在 service 在增加一层负载均衡转发
WeiyiGeek.工作流程
Tips : 目前可以提供Ingress controller有很多比如traefik、nginx-ingress、Kubernetes Ingress Cpmtrper for Kong、HAProxy Ingress controller等。
Tips : 目前常见的负载均衡有Ingress-Nginx和Ingress-Traefik等。
Tips: 如果多个 Ingress 为同一主机定义了路径,则 Ingress 控制器会合并这些定义。
Tips: 入口控制器第一次启动时,两个作业创建了准入 Webhook 使用的 SSL 证书。因此,在可以创建和验证 Ingress 定义之前,会有最多两分钟的初始延迟。
Tips: admission webhook 需要Kubernetes API服务器和入口控制器之间的连接,请保证防火墙允许8443端口通信。
名词解析复习
节点: Kubernetes 集群中的服务器集群: Kubernetes 管理的一组服务器集合边界路由器: 为局域网和 Internet 路由数据包的路由器,执行防火墙保护局域网络集群网络: 遵循 Kubernetes 网络模型实现集群内的通信的具体实现,比如 Flannel 和 Calico服务: Kubernetes 的服务 (Service) 是使用标签选择器标识的一组 Pod Service (Deployment)。 除非另有说明,否则服务的虚拟 IP 仅可在集群内部访问
NodePort: 服务是引导外部流量到你的服务的最原始方式。
LoadBalancer: 服务是暴露服务到 Internet 的标准方式。Ingress: 事实上不是一种服务类型。Ingress 可能是暴露服务的最强大方式,但同时也是最复杂的。Ingress 控制器有各种类型,包括
Google Cloud Load Balancer,Nginx,Contour,Istio等等。
0x01 Ingress 安装配置 描述: Ingress-Nginx本质上是创建了一个Nginx的Node pod,只不过这个无需手写Nginx的配置文件而是通过自动生成的方式实现;
帮助参考
Ingress-Nginx 官方网站:https://kubernetes.github.io/ingress-nginx/
Ingress-Nginx Github地址:https://github.com/kubernetes/ingress-nginx
版本查看: https://github.com/kubernetes/ingress-nginx/releases
版本支持说明: https://github.com/kubernetes/ingress-nginx/#support-versions-table
Ingress-nginx version | k8s supported version| Alpine Version | Nginx Version
v1.0.0-alpha.2 1.22, 1.21, 1.20, 1.19 3.13.5 1.20.1
v1.0.0-alpha.1 1.21, 1.20, 1.19 3.13.5 1.20.1
v0.48.1 1.21, 1.20, 1.19 3.13.5 1.20.1
v0.47.0 1.21, 1.20, 1.19 3.13.5 1.20.1
v0.46.0 1.21, 1.20, 1.19 3.13.2 1.19.6 配置指南 描述: 默认配置监视来自所有命名空间的Ingress 对象。要更改此行为,请使用标志--watch-namespace将范围限制为特定命名空间。
kubectl wait --namespace ingress-nginx
--for=condition=ready pod
--selector=app.kubernetes.io/component=controller
--timeout=120s 定制NGINX有三种方式: 参考地址(https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/)
ConfigMap: 使用ConfigMap在NGINX中设置全局配置。Annotations: 如果您需要特定入口规则的特定配置,请使用此选项。Custom template: 当需要更具体的设置(如打开文件缓存)时,将侦听选项调整为rcvbuf或当无法通过ConfigMap更改配置时。
sysctl 调优
描述: 在演示使用 Init Container 来调整 sysctl 默认值 kubectl patch, (1) 积压队列设置net.core.somaxconn从128到32768, (2) 临时端口设置net.ipv4.ip_local_port_range从32768 60999到1024 65000
kubectl patch deployment -n ingress-nginx nginx-ingress-controller
--patch="$(curl https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/docs/examples/customization/sysctl/patch.json)" 安装部署 Ingress-Nginx 基础环境部署流程
(1) 使用 NodePort : https://kubernetes.github.io/ingress-nginx/deploy/
wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.47.0/deploy/static/provider/baremetal/deploy.yaml (2) 镜像拉取
# 查看依赖的镜像
~/K8s/Day7/demo1$ cat deploy.yaml | grep "image:" | sort | uniq
# image: docker .io/jettech/kube-webhook-certgen:v1.5.0
# image: k8s.gcr.io/ingress-nginx/controller:v0.47.0@sha256:1f4f402b9c14f3ae92b11ada1dfe9893a88f0faeb0b2f4b903e2c67a0c3bf0de
# 拉取所需镜像: 如果您有国外的VPS可以直接进行拉取或者提花替换 k8s.gcr.io镜像站点;
# ingress-nginx-controll 版本稍微延迟: https://hub.docker.com/r/pollyduan/ingress-nginx-controller
# sed -i "s|k8s.gcr.io/ingress-nginx/controllerS.*$|pollyduan/ingress-nginx-controller:v0.47.0|g" deploy.yaml
docker pull pollyduan/ingress-nginx-controller:v0.47.0
docker pull docker.io/jettech/kube-webhook-certgen:v1.5.0 (3) 更改Tag上传到私有仓库中
~/K8s/Day7/demo1$ docker login harbor.weiyigeek.top
~/K8s/Day7/demo1$ docker tag docker.io/jettech/kube-webhook-certgen:v1.5.0 harbor.weiyigeek.top/test/kube-webhook-certgen:v1.5.0
~/K8s/Day7/demo1$ docker tag pollyduan/ingress-nginx-controller:v0.41.0 harbor.weiyigeek.top/test/ingress-nginx-controller:v0.41.0
# docker push harbor.weiyigeek.top/test/kube-webhook-certgen:v1.5.0
# docker push harbor.weiyigeek.top/test/ingress-nginx-controller:v0.41.0 (4) 部署清单修改与部署
# 将官方的镜像更改为私有镜像Tag方便在私有仓库中进行拉取
sed -i "s#docker.io/jettech/kube-webhook-certgen:v1.5.0#harbor.weiyigeek.top/test/kube-webhook-certgen:v1.5.0#g" deploy.yaml
sed -i "s#k8s.gcr.io/ingress-nginx/controller:v0.47.0@sha256:1f4f402b9c14f3ae92b11ada1dfe9893a88f0faeb0b2f4b903e2c67a0c3bf0de#harbor.weiyigeek.top/test/ingress-nginx-controller:v0.41.0#g" deploy.yaml
~/K8s/Day7/demo1$ kubectl apply -f deploy.yaml
# namespace/ingress-nginx created
# serviceaccount/ingress-nginx created
# configmap/ingress-nginx-controller created
# clusterrole.rbac.authorization.k8s.io/ingress-nginx created
# clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
# role.rbac.authorization.k8s.io/ingress-nginx created
# rolebinding.rbac.authorization.k8s.io/ingress-nginx created
# service/ingress-nginx-controller-admission created
# service/ingress-nginx-controller created
# deployment.apps/ingress-nginx-controller created
# validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created
# serviceaccount/ingress-nginx-admission created
# clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
# clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
# role.rbac.authorization.k8s.io/ingress-nginx-admission created
# rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
# job.batch/ingress-nginx-admission-create created
# job.batch/ingress-nginx-admission-patch created (5) 验证查看
$ kubectl get ns | grep "ingress" # 名称空间查看
# ingress-nginx Active 59s
$ kubectl get svc -n ingress-nginx # Service 服务查看
# NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
# ingress-nginx-controller NodePort 10.96.183.29 <none> 80:32268/TCP,443:30499/TCP 22m
# ingress-nginx-controller-admission ClusterIP 10.98.154.140 <none> 443/TCP 22m
$ kubectl get deployment -n ingress-nginx -o wide # deployment 控制器
# NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
# ingress-nginx-controller 1/1 1 1 2m14s controller harbor.weiyigeek.top/test/ingress-nginx-controller:v0.41.0 app.kubernetes.io/component=controller,app.kubernetes.io/instance=ingress-nginx,app.kubernetes.io/name=ingress-nginx
$ kubectl get rs -n ingress-nginx -o wide # ReplicaSet 控制器
# NAME DESIRED CURRENT READY AGE CONTAINERS IMAGES SELECTOR
# ingress-nginx-controller-849d675ffc 1 1 1 115s controller harbor.weiyigeek.top/test/ingress-nginx-controller:v0.41.0 app.kubernetes.io/component=controller,app.kubernetes.io/instance=ingress-nginx,app.kubernetes.io/name=ingress-nginx,pod-template-hash=849d675ffc
$ kubectl get pod -n ingress-nginx -o wide --show-labels #Pod 资源控制器
# NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES LABELS
# ingress-nginx-admission-create-ds8b5 0/1 Completed 0 11m 10.244.1.110 k8s-node-4 <none> <none> app.kubernetes.io/component=admission-webhook,app.kubernetes.io/instance=ingress-nginx,app.kubernetes.io/managed-by=Helm,app.kubernetes.io/name=ingress-nginx,app.kubernetes.io/version=0.47.0,controller-uid=2d63785a-c26d-413a-9d9d-d68ba255f0cd,helm.sh/chart=ingress-nginx-3.10.1,job-name=ingress-nginx-admission-create
# ingress-nginx-admission-patch-kzx2v 0/1 Completed 1 11m 10.244.1.111 k8s-node-4 <none> <none> app.kubernetes.io/component=admission-webhook,app.kubernetes.io/instance=ingress-nginx,app.kubernetes.io/managed-by=Helm,app.kubernetes.io/name=ingress-nginx,app.kubernetes.io/version=0.47.0,controller-uid=c5ac4231-dc89-4699-996c-a1ea657cd7e7,helm.sh/chart=ingress-nginx-3.10.1,job-name=ingress-nginx-admission-patch
# ingress-nginx-controller-849d675ffc-7ftvt 1/1 Running 0 11m 10.244.1.114 k8s-node-4 <none> <none> app.kubernetes.io/component=controller,app.kubernetes.io/instance=ingress-nginx,app.kubernetes.io/name=ingress-nginx,pod-template-hash=849d675ffc (6) 运行的Pod过程查看
~/K8s/Day7/demo1$ kubectl describe -n ingress-nginx pod ingress-nginx-admission-patch-kzx2v
# Name: ingress-nginx-admission-patch-kzx2v
# Namespace: ingress-nginx
# Events:
# Type Reason Age From Message
# ---- ------ ---- ---- -------
# Normal Scheduled 4m6s default-scheduler Successfully assigned ingress-nginx/ingress-nginx-admission-patch-kzx2v to k8s-node-4
# Normal Pulling 4m5s kubelet Pulling image "harbor.weiyigeek.top/test/kube-webhook-certgen:v1.5.0"
# Normal Pulled 4m4s kubelet Successfully pulled image "harbor.weiyigeek.top/test/kube-webhook-certgen:v1.5.0" in 788.689782ms
# Normal Created 4m1s (x2 over 4m3s) kubelet Created container patch
# Normal Started 4m1s (x2 over 4m3s) kubelet Started container patch
# Normal Pulled 4m1s kubelet Container image "harbor.weiyigeek.top/test/kube-webhook-certgen:v1.5.0" already present on machine
# Normal SandboxChanged 3m59s kubelet Pod sandbox changed, it will be killed and re-created. 基础示例 官方示例参考: https://kubernetes.github.io/ingress-nginx/examples/
示例1.Ingress 常规使用方案 Ingress HTTP 代理访问资源清单的编写
cat > dep-svc-nginx-http-v1.yaml<<'EOF'
# Deployment 控制器
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-dm
spec:
replicas: 2
selector: # 选择器
matchLabels:
name: nginx-ingress-v1 # 匹配的Pod标签非常重要
template:
metadata:
labels:
name: nginx-ingress-v1
spec:
containers:
- name: nginx
image: harbor.weiyigeek.top/test/nginx:v1.0
imagePullPolicy: IfNotPresent
ports:
- containerPort: 80
---
# Service 控制器
apiVersion: v1
kind: Service
metadata:
name: nginx-ingress-v1-svc
spec:
ports:
- port: 80
targetPort: 80
protocol: TCP
selector:
name: nginx-ingress-v1 # 【重点】用于关联Pod所以标签与Deployment定义的标签一种
EOF
cat > ingress-nginx-http-v1.yaml<<'EOF'
# Ingress 扩展
# Warning: extensions/v1beta1 Ingress is deprecated in v1.14+, unavailable in v1.22+; use networking.k8s.io/v1 Ingress
apiVersion: networking.k8s.io/v1 # 注意点否则将报上面的预警
kind: Ingress
metadata:
name: nginx-ingress-http
spec:
rules:
- host: web.weiyigeek.top
http:
paths:
- pathType: Prefix
path: /
backend:
service:
name: nginx-ingress-v1-svc #【重点】关联Service控制器所以与Service定义的源数据名称一致
port:
number: 80
EOF 操作流程:
# (1) 部署 Deployment 与 Service
~/K8s/Day7/demo2$ kubectl create -f dep-svc-nginx-http-v1.yaml
# PS: 如果出现错误则需要在进行ingress创建的时候需要将Webhook删了才能正常创建ingress。
# ~/K8s/Day7/demo2$ kubectl delete -A ValidatingWebhookConfiguration ingress-nginx-admission
# validatingwebhookconfiguration.admissionregistration.k8s.io "ingress-nginx-admission" deleted
~/K8s/Day7/demo2$ kubectl create -f ingress-nginx-http-v1.yaml
# ingress.networking.k8s.io/nginx-ingress-http created
# (2) 查看
$ kubectl get svc -n ingress-nginx # 查看服务端口
# NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
# ingress-nginx-controller NodePort 10.96.183.29 <none> 80:32268/TCP,443:30499/TCP 8h
# ingress-nginx-controller-admission ClusterIP 10.98.154.140 <none> 443/TCP 8h
~/K8s/Day7/demo2$ kubectl get ingress
# Warning: extensions/v1beta1 Ingress is deprecated in v1.14+, unavailable in v1.22+; use networking.k8s.io/v1 Ingress # 我们已使用`networking.k8s.io/v1`
# NAME CLASS HOSTS ADDRESS PORTS AGE
# nginx-ingress-http <none> web.weiyigeek.top 10.10.107.214(绑定的节点地址) 80 8h
~/K8s/Day7/demo2$ kubectl get pod -o wide
# NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
# nginx-dm-7654c987b4-s5cj2 1/1 Running 0 8h 10.244.1.125 k8s-node-4 <none> <none>
# nginx-dm-7654c987b4-wgfm2 1/1 Running 0 8h 10.244.1.126 k8s-node-4 <none> <none>
# (3) 访问端设置本地DNS 解析 & 在浏览器中进行HTTP访问
# /etc/hosts
10.10.107.214 web.weiyigeek.top
# PS: 这里访问的是Node节点映射出的端口而非直接访问的80端口
~/K8s/Day7/demo2$ curl web.weiyigeek.top:32268/host.html
# Hostname: nginx-dm-7654c987b4-wgfm2 <br>
# Image Version: <u> 1.0 </u>
# Nginx Version: 1.19.4
~/K8s/Day7/demo2$ curl web.weiyigeek.top:32268/host.html
# Hostname: nginx-dm-7654c987b4-s5cj2 <br>
# Image Version: <u> 1.0 </u>
# Nginx Version: 1.19.4
# (4) 验证
/K8s/Day7/demo2$ sudo ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 172.17.0.1:30499 rr
-> 10.244.1.124:443 Masq 1 0 0
TCP 172.17.0.1:32268 rr
-> 10.244.1.124:80 Masq 1 0 0
TCP 172.18.0.1:30499 rr
-> 10.244.1.124:443 Masq 1 0 0
TCP 172.18.0.1:32268 rr
-> 10.244.1.124:80 Masq 1 0 0
TCP 172.18.0.1:32306 rr
-> 10.244.1.107:80 Masq 1 0 0
-> 10.244.1.108:80 Masq 1 0 0
-> 10.244.1.109:80 Masq 1 0 0
# Node(节点)
TCP 10.10.107.202:30499 rr
-> 10.244.1.124:443 Masq 1 0 0
TCP 10.10.107.202:32268 rr
-> 10.244.1.124:80
# NodePort
TCP 10.96.183.29:80 rr
-> 10.244.1.124:80 Masq 1 0 0
TCP 10.96.183.29:443 rr
-> 10.244.1.124:443 Masq 1 0 0
# CluterPort
TCP 10.98.154.140:443 rr
-> 10.244.1.124:8443 Masq 1 0 0
TCP 10.102.158.47:80 rr
-> 10.244.1.125:80 Masq 1 0 0
-> 10.244.1.126:80 Masq 1 0 0 示例2.Ingress HTTPS 代理访问 描述: TLS 证书配置参考地址(https://kubernetes.github.io/ingress-nginx/user-guide/tls/),注意创建自建证书(主:浏览器不认可的)。默认得Ingress-nginx配置了SSL会自动跳转到https网页。
#指示位置部分是否仅可访问SSL(当Ingress包含证书默认为True) bool, 当设置为false时禁用https强制跳转。
nginx.ingress.kubernetes.io/ssl-redirect
nginx.ingress.kubernetes.io/force-ssl-redirect # 即使lngress未启用TLS,也强制重定向到HTTPS bool 资源清单示例:
# Deployment & Service
cat > dep-ingress-nginx-https-v3.yaml<<'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
name: ingress-nginx-https
spec:
replicas: 2
selector: # 选择器
matchLabels:
name: ingress-nginx-https-v3 # 匹配的Pod标签非常重要
template:
metadata:
labels:
name: ingress-nginx-https-v3
spec:
containers:
- name: ingress-nginx-https-v3
image: harbor.weiyigeek.top/test/nginx:v3.0
imagePullPolicy: IfNotPresent
ports:
- containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
name: ingress-nginx-https-svc
spec:
ports:
- port: 80
targetPort: 80
protocol: TCP
selector:
name: ingress-nginx-https-v3 # 关联指定标签的Pod
EOF
# Ingress
cat > ingress-nginx-https-v3.yaml<<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-nginx-https
spec:
tls:
- hosts:
- www3.weiyigeek.top
secretName: tls-secret
rules:
- host: www3.weiyigeek.top
http:
paths:
- pathType: Prefix
path: /
backend:
service:
name: ingress-nginx-https-svc #【重点】 关联Service控制器所以与Service定义的源数据名称一致
port:
number: 80
EOF 操作流程:
# (1) 创建 Pod 与 Service
~/K8s/Day7/demo2$ kubectl create -f dep-ingress-nginx-https-v3.yaml
# deployment.apps/ingress-nginx-https created
# service/ingress-nginx-https-svc created
# (2) 创建证书及cert存储方式
openssl req -x509 -sha256 -nodes -days 365 -newkey rsa:2048 -keyout tls.key -out tls.crt -subj "/CN=www3.weiyigeek.top/O=www3.weiyigeek.top"
# Generating a RSA private key
# ..+++++
# ........................+++++
# writing new private key to 'tls.key'
# -----
kubectl create secret tls tls-secret --key tls.key --cert tls.crt # 后续讲解
# secret/tls-secret created
# (3) 创建 ingress-nginx https
kubectl create -f ingress-nginx-https-v3.yaml
# ingress.networking.k8s.io/ingress-nginx-https created
# (4) 查看
~/K8s/Day7/demo2$ kubectl get ingress
# Warning: extensions/v1beta1 Ingress is deprecated in v1.14+, unavailable in v1.22+; use networking.k8s.io/v1 Ingress
# NAME CLASS HOSTS ADDRESS PORTS AGE
# ingress-nginx-https <none> www3.weiyigeek.top 10.10.107.214 80, 443 117s
~/K8s/Day7/demo2$ kubectl get svc -n ingress-nginx # ingress-nginx 的 SVC 信息里面有Nodeport暴露的端口
# NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
# ingress-nginx-controller NodePort 10.96.183.29 <none> 80:32268/TCP,443:30499/TCP 9h
# ingress-nginx-controller-admission ClusterIP 10.98.154.140 <none> 443/TCP 9h
# (5) 验证
# http访问: https://www3.weiyigeek.top/
无法访问 # 由于配置了https会导致http无法正常访问(在后续实验中会将http访问的流量强制转到https之中)
# https访问: https://www3.weiyigeek.top:30499/host.html
Hostname: ingress-nginx-https-55bb4cd6fd-4rmpm ,Image Version: 3.0, Nginx Version: 1.19.4
WeiyiGeek.ingress-nginx-https
PS : 实际上我们通过Ingress资源清单添加的域名绑定主机时被写入到 ingress-nginx-controller Pod 中的nginx.conf 文件之中,这才能让我们通过自定义域名的方式访问虚拟主机;
~/K8s/Day7/demo2$ kubectl exec -n ingress-nginx ingress-nginx-controller-849d675ffc-6rxlm -it -- /bin/sh
/etc/nginx $ ls
# fastcgi.conf koi-utf modsecurity owasp-modsecurity-crs uwsgi_params.default
# fastcgi.conf.default koi-win modules scgi_params win-utf
# fastcgi_params lua nginx.conf scgi_params.default
# fastcgi_params.default mime.types nginx.conf.default template
# geoip mime.types.default opentracing.json uwsgi_params
/etc/nginx $ cat nginx.conf | grep "www3.weiyigeek.top" -n
# 551: ## start server www3.weiyigeek.top
# 553: server_name www3.weiyigeek.top ;
# 679: ## end server www3.weiyigeek.top Ingress-Nginx-Https配置示例:
# 下面可以帮助我们认是ingress-nginx实现https是如何进行配置的;
## start server www3.weiyigeek.top
server {
server_name www3.weiyigeek.top ;
listen 80 ;
listen 443 ssl http2 ;
set $proxy_upstream_name "-";
ssl_certificate_by_lua_block {
certificate.call()
}
location / {
set $namespace "default";
set $ingress_name "ingress-nginx-https";
set $service_name "ingress-nginx-https-svc";
set $service_port "80";
set $location_path "/";
rewrite_by_lua_block {
lua_ingress.rewrite({
force_ssl_redirect = false,
ssl_redirect = true,
force_no_ssl_redirect = false,
use_port_in_redirects = false,
path_type = "Prefix",
})
balancer.rewrite()
plugins.run()
}
# be careful with `access_by_lua_block` and `satisfy any` directives as satisfy any
# will always succeed when there's `access_by_lua_block` that does not have any lua code doing `ngx.exit(ngx.DECLINED)`
# other authentication method such as basic auth or external auth useless - all requests will be allowed.
#access_by_lua_block {
#}
header_filter_by_lua_block {
lua_ingress.header()
plugins.run()
}
body_filter_by_lua_block {
}
log_by_lua_block {
balancer.log()
monitor.call()
plugins.run()
}
port_in_redirect off;
set $balancer_ewma_score -1;
set $proxy_upstream_name "default-ingress-nginx-https-svc-80";
set $proxy_host $proxy_upstream_name;
set $pass_access_scheme $scheme;
set $pass_server_port $server_port;
set $best_http_host $http_host;
set $pass_port $pass_server_port;
set $proxy_alternative_upstream_name "";
client_max_body_size 1m;
proxy_set_header Host $best_http_host;
# Pass the extracted client certificate to the backend
# Allow websocket connections
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection $connection_upgrade;
proxy_set_header X-Request-ID $req_id;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $remote_addr;
proxy_set_header X-Forwarded-Host $best_http_host;
proxy_set_header X-Forwarded-Port $pass_port;
proxy_set_header X-Forwarded-Proto $pass_access_scheme;
proxy_set_header X-Scheme $pass_access_scheme;
# Pass the original X-Forwarded-For
proxy_set_header X-Original-Forwarded-For $http_x_forwarded_for;
# mitigate HTTPoxy Vulnerability
# https://www.nginx.com/blog/mitigating-the-httpoxy-vulnerability-with-nginx/
proxy_set_header Proxy "";
# Custom headers to proxied server
proxy_connect_timeout 5s;
proxy_send_timeout 60s;
proxy_read_timeout 60s;
proxy_buffering off;
proxy_buffer_size 4k;
proxy_buffers 4 4k;
proxy_max_temp_file_size 1024m;
proxy_request_buffering on;
proxy_http_version 1.1;
proxy_cookie_domain off;
proxy_cookie_path off;
# In case of errors try the next upstream server before returning an error
proxy_next_upstream error timeout;
proxy_next_upstream_timeout 0;
proxy_next_upstream_tries 3;
proxy_pass http://upstream_balancer;
proxy_redirect off;
}
}
## end server www3.weiyigeek.top 示例3.Ingress Rewrite 重写重定向访问 描述: 以下是Ingress-Nginx 重写annotations的相关属性
名称 描述 值类型
nginx.ingress.kubernetes.io/use-regex # 指示Ingress上定义的路径是否使用正则表达式 bool
nginx.ingress.kubernetes.io/rewrite-target # 必须重定向流量的目标URI string
nginx.ingress.kubernetes.io/app-root # 定义Controller必须重定向的应用程序根,如果它在‘/’上下文中 string
nginx.ingress.kubernetes.io/ssl-redirect # 指示位置部分是否仅可访问SSL(当Ingress包含证书默认为True) bool
nginx.ingress.kubernetes.io/force-ssl-redirect # 即使lngress未启用TLS,也强制重定向到HTTPS bool
annotations:
# 指定 Ingress Controller 的类型
kubernetes.io/ingress.class: "nginx"
# 指定我们的 rules 的 path 可以使用正则表达式
nginx.ingress.kubernetes.io/use-regex: "true"
# 连接超时时间,默认为 5s
nginx.ingress.kubernetes.io/proxy-connect-timeout: "600"
# 后端服务器回转数据超时时间,默认为 60s
nginx.ingress.kubernetes.io/proxy-send-timeout: "600"
# 后端服务器响应超时时间,默认为 60s
nginx.ingress.kubernetes.io/proxy-read-timeout: "600"
# 客户端上传文件,最大大小,默认为 20m
nginx.ingress.kubernetes.io/proxy-body-size: "10m"
# URL 重写 Ingress Rewrite 资源清单示例:
cat > ingress-nginx-http-rewrite-https-v3.yaml<<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-nginx-http-rewrite-https
annotations: # 注释
nginx.ingress.kubernetes.io/rewrite-target: https://www3.weiyigeek.top:30499
spec:
rules:
- host: go.weiyigeek.top
http:
paths:
- pathType: Prefix
path: /
backend:
service:
name: ingress-nginx-https-svc #【重点】 关联Service控制器所以与Service定义的源数据名称一致
port:
number: 80
EOF 操作流程:
# (1) 创建 Ingress 对象
~/K8s/Day7/demo2$ kubectl create -f ingress-nginx-http-rewrite-https-v3.yaml
# ingress.networking.k8s.io/ingress-nginx-http-rewrite-https created
# (2) 查看
~/K8s/Day7/demo2$ kubectl get ingress
# NAME CLASS HOSTS ADDRESS PORTS AGE
# ingress-nginx-http-rewrite-https <none> go.weiyigeek.top 10.10.107.214 80 7s
# ingress-nginx-https <none> www3.weiyigeek.top 10.10.107.214 80, 443 31m
# nginx-ingress-http <none> web.weiyigeek.top 10.10.107.214 80 9h
~/K8s/Day7/demo2$ kubectl get svc -n ingress-nginx
# ingress-nginx-controller NodePort 10.96.183.29 80:32268/TCP,443:30499/TCP
# (3) 访问验证(注意将域名指向节点地址)
~/K8s/Day7/demo2$ curl -I http://go.weiyigeek.top:32268 # 强制转换到https
# HTTP/1.1 302 Moved Temporarily
# Date: Sat, 14 Nov 2020 15:14:00 GMT
# Content-Type: text/html
# Content-Length: 138
# Connection: keep-alive
# Location: https://www3.weiyigeek.top:30499/ 补充说明: Ingress-nginx 的前后端分离(Rewrite)演示
资源清单tee ingress-rewrite.yaml <<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-rewrite
namespace: demo
annotations:
nginx.ingress.kubernetes.io/rewrite-target: /$2
spec:
rules:
- host: rewrite.weiyigeek.top
http:
paths:
- path: /weiyigeek(/|$)(.*)
pathType: ImplementationSpecific
backend:
service:
name: backend-svc
port:
number: 8080
EOF 部署验证$ kubectl create -f ingress-rewrite.yaml
$ kubectl describe ing -n demo ingress-rewrite
# Rules:
# Host Path Backends
# ---- ---- --------
# rewrite.weiyigeek.top
# /weiyigeek(/|$)(.*) backend-svc:8080 (192.168.109.90:8080,192.168.109.93:8080)
# Annotations: nginx.ingress.kubernetes.io/rewrite-target: /$2
$ curl http://10.10.107.221 -H 'host: rewrite.weiyigeek.top' -k
# <html>
# <head><title>404 Not Found</title></head>
# <body>
# <center><h1>404 Not Found</h1></center>
# <hr><center>nginx</center>
# </body>
# </html>
$ curl -v http://10.10.107.221/weiyigeek/ -H 'host: rewrite.weiyigeek.top' -k # 匹配指定路径进行访问
hostname-web-backend-1-WeiyiGeek-Tomcat
$ curl http://10.10.107.221/weiyigeek/test -H 'host: rewrite.weiyigeek.top' -k # 后端应用存在test目录以及文件方可,否则显示应用程序自动的错误。 示例4.Ingress VirtualHost 虚拟主机访问 描述: 我们知道Ingress-Nginx是基于Nginx的所以其也支持虚拟主机进行绑定访问,实现以不同的域名访问同一个web界面;
Ingress 资源清单示例:
# 1) 采用 networking.k8s.io/v1 APIVERSION
cat > ingress-nginx-virtual-host.yaml<<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-nginx-virtual-host
annotations:
nginx.ingress.kubernetes.io/rewrite-target: /
spec:
defaultBackend:
service:
name: nginx-ingress-v1-svc
port:
number: 80
rules:
- host: host.weiyigeek.top # 以同一主机根据路径访问不同的Pod
http:
paths:
- path: /
pathType: Prefix # 【坑呀】supported values: "Exact", "ImplementationSpecific", "Prefix"
backend:
service:
name: nginx-ingress-v1-svc #【重点】 关联Service控制器所以与Service定义的源数据名称一致
port:
number: 80
- path: /v3
pathType: Prefix # 【坑呀】supported values: "Exact", "ImplementationSpecific", "Prefix"
backend:
service:
name: ingress-nginx-https-svc #【重点】 关联Service控制器所以与Service定义的源数据名称一致
port:
number: 80
- host: ingress.test2.com #只需要在rules字段下添加另一个host字段即可,这里只实现httpd的,如果有需求可以添加上tomcat的。
http:
paths:
- path: /
backend:
serviceName: httpd-svc #注意,serviceName所有虚拟主机必须保持一致
servicePort: 80
EOF
# 2) 采用 extensions/v1beta1 APIVERSION (旧版本-将会被弃用)
cat > ingress-nginx-virtual-host.yaml<<'EOF'
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: path-ingress
spec:
rules:
- host: host.weiyigeek.top
http:
paths:
- path: /v1
backend:
serviceName: nginx-ingress-v1-svc
servicePort: 80
- path: /v2
backend:
serviceName: ingress-nginx-https-svc
servicePort: 80
- host: ingress.weiyigeek.top
http:
paths:
- path: /
backend:
serviceName: httpd-svc
servicePort: 80
EOF 操作流程:
# (0) 资源清单编写一览表
~/K8s/Day7/demo2$ kubectl explain --api-version=networking.k8s.io/v1 ingress.spec.rules.http.paths
kubectl explain --api-version=networking.k8s.io/v1beta1 ingress.spec.rules.http.paths
# KIND: Ingress
# VERSION: networking.k8s.io/v1
# (1) 创建Ingresss对象
~/K8s/Day7/demo2$ kubectl create -f ingress-nginx-virtual-host.yaml
# ingress.networking.k8s.io/ingress-nginx-virtual-host created
# (2) 查看 ingress
~/K8s/Day7/demo2$ kubectl get ingress | grep "virtual"
# ingress-nginx-virtual-host <none> host.weiyigeek.top, ingress.weiyigeek.top 10.10.107.214 80 102s
# (3) 设置/etc/hosts与该域名绑定
10.10.107.214 host.weiyigeek.top
10.10.107.214 ingress.weiyigeek.top
# (4) 查看 ingress-nginx-virtual-host Pod 信息
$ kubectl describe ingress-nginx-virtual-host
示例5.Ingress BasicAuth(基础认证)功能 描述:因为Ingress的实现方案采用的是Nginx的软件,所以Nginx的相关特性Ingress都支持, 下面我们利用 Nginx 的 BasicAuth 实现基础认证演示
Ingress 资源清单:
cat > ingress-nginx-auth.yaml<<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-nginx-auth
annotations:
nginx.ingress.kubernetes.io/auth-type: basic
nginx.ingress.kubernetes.io/auth-secret: basic-auth
nginx.ingress.kubernetes.io/auth-realm: 'Authentication Required - WeiyiGeek'
spec:
rules:
- host: auth.weiyigeek.top # 后端应用通过该域名进行访问以同一主机根据路径访问不同的Pod
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: nginx-ingress-v1-svc #【重点】 关联Service控制器所以与Service定义的源数据名称一致
port:
number: 80
defaultBackend:
service:
name: nginx-ingress-v1-svc
port:
number: 80
EOF 操作流程:
# (1) 先安装Apache的模块 : Nginx的认证方案所需
$ apt search htpasswd
# Sorting... Done
# Full Text Search... Done
# apache2-utils/focal-security,focal-updates 2.4.41-4ubuntu3.1 amd64
# Apache HTTP Server (utility programs for web servers)
# ... 下面还有其他的包这里旧不看了
$ sudo apt install apache2-utils
$ htpasswd -c auth weiyigeek #创建密钥文件文件名为auth,用户名为weiyigeek
# (2) 把该文件以secret方式进行保存,类型为generic
# -rw-r--r-- 1 weiyigeek weiyigeek 48 Nov 15 12:48 auth
$ kubectl create secret generic basic-auth --from-file=auth
# secret/basic-auth created
# (3) 部署上面Ingress资源清单
weiyigeek@ubuntu:~/K8s/Day7/demo2$ kubectl create -f ingress-nginx-auth.yaml
# ingress.networking.k8s.io/ingress-nginx-auth configured
# (4) 查看
weiyigeek@ubuntu:~/K8s/Day7/demo2$ kubectl get ingress
# NAME CLASS HOSTS ADDRESS PORTS AGE
# ingress-nginx-auth <none> auth.weiyigeek.top 10.10.107.214 80 2m26s
# ingress-nginx-http-rewrite-https <none> go.weiyigeek.top 10.10.107.214 80 13h
# ingress-nginx-https <none> www3.weiyigeek.top 10.10.107.214 80, 443 14h
# nginx-ingress-http <none> web.weiyigeek.top 10.10.107.214 80 23h
# path-ingress <none> host.weiyigeek.top 10.10.107.214 80 26m
weiyigeek@ubuntu:~/K8s/Day7/demo2$ kubectl describe ingress ingress-nginx-auth
# Name: ingress-nginx-auth
# Namespace: default
# Address: 10.10.107.214
# Default backend: nginx-ingress-v1-svc:80 10.244.1.125:80,10.244.1.126:80)
# Rules:
# Host Path Backends
# ---- ---- --------
# auth.weiyigeek.top
# / nginx-ingress-v1-svc:80 10.244.1.125:80,10.244.1.126:80)
# Annotations: nginx.ingress.kubernetes.io/auth-realm: Authentication Required - WeiyiGeek
# nginx.ingress.kubernetes.io/auth-secret: basic-auth
# nginx.ingress.kubernetes.io/auth-type: basic
# Events:
# Type Reason Age From Message
# ---- ------ ---- ---- -------
# Normal Sync 22s (x3 over 2m36s) nginx-ingress-controller Scheduled for sync
# (5) 访问验证
~/K8s/Day7/demo2$ curl -I http://auth.weiyigeek.top:32268
# HTTP/1.1 401 Unauthorized
# Date: Sun, 15 Nov 2020 05:00:42 GMT
# Content-Type: text/html
# Content-Length: 172
# Connection: keep-alive
# WWW-Authenticate: Basic realm="Authentication Required - WeiyiGeek"
WeiyiGeek.WWW-Authenticate
示例6.Ingress Redirect 域名重定向功能 描述: 我们可以利用Ingress中的域名重定向(Redirect)注解来实现访问重定向。
# 简单格式:
annotations:
nginx.ingress.kubernetes.io/permanent-redirect: 'https://blog.weiyigeek.top' Ingress 规则配置清单示例:
tee Ingress-Redirect.yaml <<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-redirect
namespace: demo
annotations:
nginx.ingress.kubernetes.io/permanent-redirect: 'https://blog.weiyigeek.top'
spec:
rules:
- host: redirect.weiyigeek.top
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: front-svc
port:
number: 80
defaultBackend:
service:
name: front-svc
port:
number: 80
EOF 部署资源清单以及查看
# 创建 Ingress 资源对象
kubectl create -f Ingress-Redirect.yaml
# 查看Ingress控制器下面创建的应用信息以及详细信息
kubectl get ing -n demo ingress-redirect && kubectl describe ing -n demo ingress-redirect
# NAME CLASS HOSTS ADDRESS PORTS AGE
# ingress-redirect <none> redirect.weiyigeek.top 80 23s
....

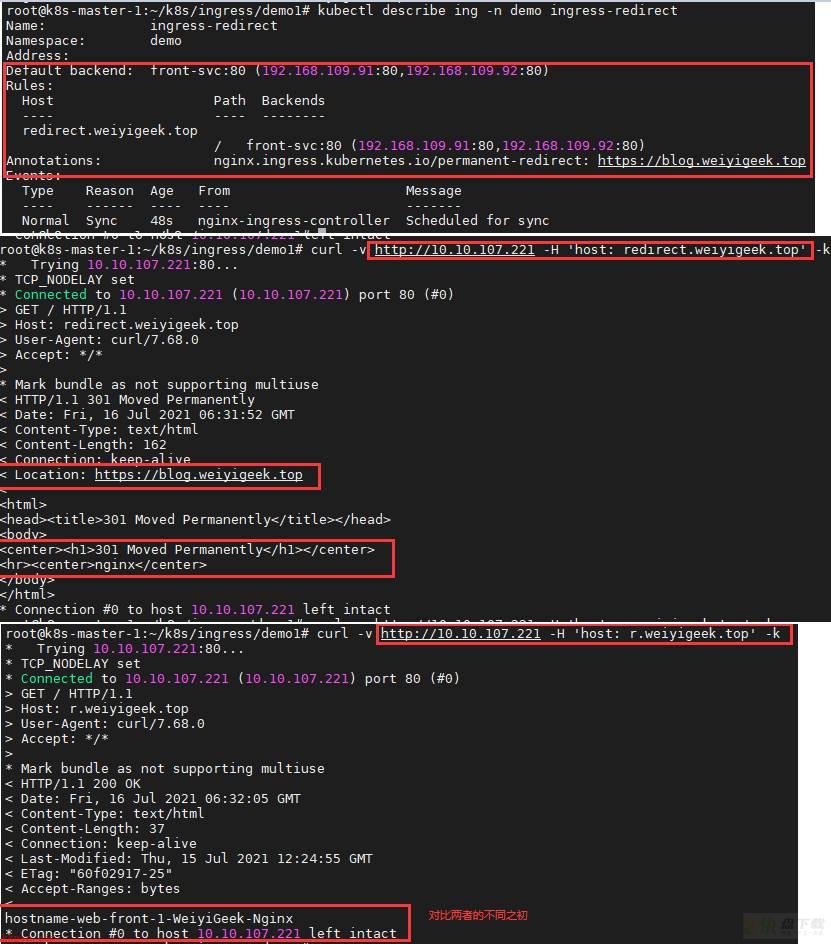

# 验证重定向观察设置的虚拟主机的域名与未设置虚拟主机域名之间的不同
curl -v http://10.10.107.221 -H 'host: redirect.weiyigeek.top' -k # 重定向到我们指定的域名
curl -v http://10.10.107.221 -H 'host: r.weiyigeek.top' -k # 不存在的虚拟主机名称则访问默认 defaultBackend 服务。
WeiyiGeek.redirect
示例7.Ingress 黑白名单访问限制 描述: 某些内部系统可能只允许某些IP地址访问时,可利用 Ingress-nginx 的黑白名单,其实现的方式有如下两个。
Annotations(注解) :只对指定的ingress生效nginx.ingress.kubernetes.io/whitelist-source-rangeConfigMap(配置文件) :全局生效Tips: 建议黑名单可以使用ConfigMap去配置,白名单建议使用Annotations去配置。
Step 1.添加白名单的方式可以直接写annotation也可以配置在ConfigMap中。# 方式1.annotation方式
tee ingress-whilte-annotation.yaml <<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-whilte
namespace: demo
annotations:
nginx.ingress.kubernetes.io/service-weight: '1'
nginx.ingress.kubernetes.io/whitelist-source-range: 10.20.172.103,10.10.107.220
spec:
rules:
- host: whilte.weiyigeek.top
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: front-svc
port:
number: 80
EOF
# 方式2.ConfigMap方式
tee ingress-whilte-ConfigMap.yaml <<'EOF'
apiVersion: v1
kind: ConfigMap
metadata:
name: ingress-whilte
namespace: demo
data:
whitelist-source-range: 10.10.107.0/24
EOF
# 创建 Ingress 资源对象
$ kubectl create -f ingress-whilte-annotation.yaml
$ kubectl get ingress -n demo ingress-whilte
# NAME CLASS HOSTS ADDRESS PORTS AGE
# ingress-whilte <none> whilte.weiyigeek.top 80 75s
$ kubectl describe ingress -n demo ingress-whilte
# Rules:
# Host Path Backends
# ---- ---- --------
# whilte.weiyigeek.top
# / front-svc:80 (192.168.109.91:80,192.168.109.92:80)
# Annotations: nginx.ingress.kubernetes.io/service-weight: 1
# nginx.ingress.kubernetes.io/whitelist-source-range: 10.20.172.103,10.10.107.220
# 主机: 10.10.107.220 (拥有访问权限时正常返回数据)
10.10.107.220 $ curl http://10.10.107.221/ -H 'host: whilte.weiyigeek.top' -k -i
# HTTP/1.1 200 OK
# Date: Fri, 16 Jul 2021 07:47:00 GMT
# Content-Type: text/html
# Content-Length: 37
# Connection: keep-alive
# Last-Modified: Thu, 15 Jul 2021 12:24:55 GMT
# ETag: "60f02917-25"
# Accept-Ranges: bytes
# hostname-web-front-0-WeiyiGeek-Nginx
# 主机: 10.10.107.221 (无访问权限则显示403)
10.10.107.221 $ curl http://10.10.107.221/ -H 'host: whilte.weiyigeek.top' -k -i
# HTTP/1.1 403 Forbidden
# Date: Fri, 16 Jul 2021 07:47:54 GMT
# Content-Type: text/html
# Content-Length: 146
# Connection: keep-alive
# <center><h1>403 Forbidden</h1></center> Step 2.黑名单的方式也可以在annotations与ConfigMap中配置。
描述: 我们可以在注解中加入nginx.ingress.kubernetes.io/server-snippet: |-则可以加入自定义片段。# - Annotation
tee ingress-black-annotation.yaml <<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-black
namespace: demo
annotations:
nginx.ingress.kubernetes.io/server-snippet: |-
deny 10.10.107.220;
deny 10.20.172.103;
allow all;
spec:
rules:
- host: black.weiyigeek.top
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: backend-svc
port:
number: 8080
status:
loadBalancer: {}
EOF
# - ConfigMap
tee ingress-black-ConfigMap.yaml <<'EOF'
apiVersion: v1
kind: ConfigMap
metadata:
name: ingress-black
namespace: demo
data:
whitelist-source-range: 10.20.172.0/24
block-cidrs: 10.10.107.220
EOF
# - 创建 Ingress 对象
kubectl apply -f ingress-black-annotation.yaml
# - 查看与详细 Ingress 对象
kubectl get ing -n demo ingress-black && kubectl describe ing -n demo ingress-black
# NAME CLASS HOSTS ADDRESS PORTS AGE
# ingress-black <none> black.weiyigeek.top 80 20s
# Rules:
# Host Path Backends
# ---- ---- --------
# black.weiyigeek.top / backend-svc:8080 (192.168.109.90:8080,192.168.109.93:8080)
# Annotations: nginx.ingress.kubernetes.io/server-snippet:
# deny 10.10.107.220;
# deny 10.20.172.103;
# allow all;
# 验证 Ingress 代理的后端应用
# (1) 10.10.107.220 (黑名单无法访问)
curl http://10.10.107.221/ -H 'host: black.weiyigeek.top' -k -i
# HTTP/1.1 403 Forbidden
# ......................
# <center><h1>403 Forbidden</h1></center>
# (2) 10.10.107.221 (未在黑名单之内则可以访问)
curl http://10.10.107.221/ -H 'host: black.weiyigeek.top' -k -i
# HTTP/1.1 200
# Date: Fri, 16 Jul 2021 13:23:36 GMT
# Content-Type: text/html
# Content-Length: 40
# Connection: keep-alive
# Accept-Ranges: bytes
# ETag: W/"40-1626351895000"
# Last-Modified: Thu, 15 Jul 2021 12:24:55 GMT
# hostname-web-front-0-WeiyiGeek-Nginx 示例8.Ingress Header 请求头匹配 描述: Ingress-nginx 的 匹配请求头,可以采用nginx.ingress.kubernetes.io/server-snippet注解。
# - 资源清单
tee ingress-header-request.yaml <<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-header
namespace: demo
annotations:
nginx.ingress.kubernetes.io/server-snippet: |-
set $agentflag 0;
if ($http_user_agent ~* "(firefox )" ){
set $agentflag 1;
}
if ($agentflag = 1) {
return 301 https://www.weiyigeek.top;
}
spec:
rules:
- host: header.weiyigeek.top
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: backend-svc
port:
number: 8080
status:
loadBalancer: {}
EOF
# - 创建查看 Ingress 资源对象
kubectl create -f ingress-header-request.yaml
kubectl get ing -n demo ingress-header && kubectl describe ing -n demo ingress-header
# Rules:
# Host Path Backends
# ---- ---- --------
# header.weiyigeek.top / backend-svc:8080 (192.168.109.90:8080,192.168.109.93:8080)
# - 验证 Ingress 资源对象
# (1) 指定 User-Agent 请求头 包含 Firefox
$ curl http://10.10.107.221/ -H 'host: header.weiyigeek.top' -H 'User-Agent: Mozilla /5.0 (Windows NT 10.0; Win64; x64; rv:89.0) Gecko/20100101 Firefox/89.0' -k -i
# HTTP/1.1 301 Moved Permanently
# Date: Fri, 16 Jul 2021 14:00:04 GMT
# Content-Type: text/html
# Content-Length: 162
# Connection: keep-alive
# Location: https://www.weiyigeek.top
# <html>
# <head><title>301 Moved Permanently</title></head>
# <body>
# <center><h1>301 Moved Permanently</h1></center>
# <hr><center>nginx</center>
# </body>
# </html>
# (2) 指定 User-Agent 请求头 不包含 Firefox
$ curl http://10.10.107.221/ -H 'host: header.weiyigeek.top' -H 'User-Agent: Mozilla/5.0' -k -i
# HTTP/1.1 200
# Date: Fri, 16 Jul 2021 14:03:29 GMT
# Content-Type: text/html
# Content-Length: 40
# Connection: keep-alive
# Accept-Ranges: bytes
# ETag: W/"40-1626351892000"
# Last-Modified: Thu, 15 Jul 2021 12:24:52 GMT
# hostname-web-backend-0-WeiyiGeek-Tomcat 示例9.Ingress 灰度金丝雀发布 描述: 在某些情况下,您可能希望通过向与生产服务不同的服务发送少量请求来“金丝雀”一组新的更改。金丝雀注解使 Ingress 规范能够根据应用的规则充当路由请求的替代服务,在nginx.ingress.kubernetes.io/canary: "true"设置后可以启用以下用于配置金丝雀的注释:。
Nginx Annotations 支持以下 4 种 Canary 规则:
* nginx.ingress.kubernetes.io/canary-weight:基于服务权重的流量切分,适用于蓝绿部署,权重范围 0 - 100 按百分比将请求路由到 Canary Ingress 中指定的服务。权重为 0 意味着该金丝雀规则不会向 Canary 入口的服务发送任何请求。权重为 100 意味着所有请求都将被发送到 Canary 入口。
* nginx.ingress.kubernetes.io/canary-by-header:基于 Request Header 的流量切分,适用于灰度发布以及 A/B 测试。当 Request Header 设置为 always时,请求将会被一直发送到 Canary 版本;当 Request Header 设置为 never时,请求不会被发送到 Canary 入口;对于任何其他 Header 值,将忽略 Header,并通过优先级将请求与其他金丝雀规则进行优先级的比较。
* nginx.ingress.kubernetes.io/canary-by-header-value:要匹配的 Request Header 的值,用于通知 Ingress 将请求路由到 Canary Ingress 中指定的服务。当 Request Header 设置为此值时,它将被路由到 Canary 入口。该规则允许用户自定义 Request Header 的值,必须与上一个 annotation (即:canary-by-header)一起使用。
* nginx.ingress.kubernetes.io/canary-by-header-pattern:这与canary-by-header-valuePCRE 正则表达式匹配的工作方式相同。请注意,canary-by-header-value设置此注释时将被忽略。当给定的 Regex 在请求处理过程中导致错误时,该请求将被视为不匹配。
* nginx.ingress.kubernetes.io/canary-by-cookie:基于 Cookie 的流量切分,适用于灰度发布与 A/B 测试。用于通知 Ingress 将请求路由到 Canary Ingress 中指定的服务的cookie。当 cookie 值设置为 always时,它将被路由到 Canary 入口;当 cookie 值设置为 never时,请求不会被发送到 Canary 入口;对于任何其他值,将忽略 cookie 并将请求与其他金丝雀规则进行优先级的比较。 定义两个版本的代码。 Tips : 金丝雀规则是按优先顺序计算的。优先级如下:canary by header->canary by cookie->canary weight
Tips : 注意当您将入口标记为 Canary 时,除nginx.ingress.kubernetes.io/load-balanceand之外的所有其他非 Canary 注释都将被忽略(从相应的主入口继承)nginx.ingress.kubernetes.io/upstream-hash-by。`
资源配置清单:
# - 默认访问前端
tee ingress-canary-v1.yaml <<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-canary-v1
namespace: demo
annotations:
nginx.ingress.kubernetes.io/canary: "true"
nginx.ingress.kubernetes.io/canary-by-header: canary
nginx.ingress.kubernetes.io/canary-by-header-value: v1
nginx.ingress.kubernetes.io/canary-weight: "50"
spec:
rules:
- host: canary.weiyigeek.top
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: front-svc
port:
number: 80
EOF
# - 利用金丝雀访问后端
tee ingress-canary-v2.yaml <<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-canary-v2
namespace: demo
annotations:
nginx.ingress.kubernetes.io/canary: "true"
nginx.ingress.kubernetes.io/canary-by-header: canary
nginx.ingress.kubernetes.io/canary-by-header-value: v2
nginx.ingress.kubernetes.io/canary-weight: "50"
spec:
rules:
- host: canary.weiyigeek.top
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: backend-svc
port:
number: 8080
EOF
~/k8s/ingress/demo1# kubectl create -f ingress-canary-v1.yaml
# ingress.networking.k8s.io/ingress-canary-v1 created
~/k8s/ingress/demo1# kubectl create -f ingress-canary-v2.yaml
# ingress.networking.k8s.io/ingress-canary-v2 created
~/k8s/ingress/demo1# kubectl get ing -n demo ingress-canary-v1 ingress-canary-v2
# NAME CLASS HOSTS ADDRESS PORTS AGE
# ingress-canary-v1 <none> canary.weiyigeek.top 80 3m12s
# ingress-canary-v2 <none> canary.weiyigeek.top 80 3m4s
# 验证金丝雀 Ingress 对象应用
for i in {1..3};do curl http://10.10.107.221/ -H 'host: canary.weiyigeek.top' -i;done
for i in {1..3};do curl http://10.10.107.221/ -H 'host: canary.weiyigeek.top' -H 'weiyigeek: v2' -i;done 示例10.Ingress 相关配置补充 (1) 自定义错误页面
参考地址: https://github.com/kubernetes/ingress-nginx/blob/master/docs/examples/customization/custom-errors/custom-default-backend.yaml描述: 可以修改 deploy.yaml 中指定 nginx-ingress-controller 运行的参数,在此处添加- --default-backend-service=名称空间/SVC名称参数
$ grep -A 3 -n "/nginx-ingress" deploy.yaml
332: - /nginx-ingress-controller
333- - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
334- - --election-id=ingress-controller-leader
335- - --ingress-class=nginx
- --default-backend-service=demo/error-svc (2) 连接和传输速率限制
描述: 下述注释定义了对连接和传输速率的限制,这些可以用来减轻DDoS攻击。* nginx.ingress.kubernetes.io/limit-connections:单个IP地址允许的并发连接数。超出此限制时,将返回503错误。
* nginx.ingress.kubernetes.io/limit-rps:每秒从给定IP接受的请求数。突发限制设置为此限制乘以突发乘数,默认乘数为5。当客户端超过此限制时,将 返回limit-req-status-code默认值: 503。
* nginx.ingress.kubernetes.io/limit-rpm:每分钟从给定IP接受的请求数。突发限制设置为此限制乘以突发乘数,默认乘数为5。当客户端超过此限制时,将 返回limit-req-status-code默认值: 503。
* nginx.ingress.kubernetes.io/limit-burst-multiplier:突发大小限制速率的倍数。默认的脉冲串乘数为5,此注释将覆盖默认的乘数。当客户端超过此限制时,将 返回limit-req-status-code默认值: 503。
* nginx.ingress.kubernetes.io/limit-rate-after:最初的千字节数,在此之后,对给定连接的响应的进一步传输将受到速率的限制。必须在启用代理缓冲的情况下使用此功能。
* nginx.ingress.kubernetes.io/limit-rate:每秒允许发送到给定连接的千字节数。零值禁用速率限制。必须在启用代理缓冲的情况下使用此功能。
* nginx.ingress.kubernetes.io/limit-whitelist:客户端IP源范围要从速率限制中排除。该值是逗号分隔的CIDR列表。 示例说明:
# - 资源清单配置:
tee ingress-limit.yaml <<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-limit
namespace: demo
annotations:
nginx.ingress.kubernetes.io/limit-rate: "100K" # 限制客户端每秒传输的字节数
nginx.ingress.kubernetes.io/limit-whitelist: "10.10.107.220" # 白名单中的IP不限速
nginx.ingress.kubernetes.io/limit-rps: 1 # 单个IP每秒的连接数
nginx.ingress.kubernetes.io/limit-rpm: 30 # 单个IP每分钟的连接数
spec:
rules:
- host: limit.weiyigeek.top
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: backend-svc
port:
number: 8080
status:
loadBalancer: {}
EOF (3) ConfigMap在Ingress Controller中实战
描述: 前面我们说到我们除了可以采用annotations方式配置ingress规则外也可以通过ConfigMap来存储相应的Ingress规则;Tips : 通过 Ingress ConfigMaps 查看详细的配置参数。
Ingress 规则存储配置清单:
# --configmap=
tee nginx-config.yaml <<'EOF'
kind: ConfigMap
apiVersion: v1
metadata:
name: ingress-nginx-controller # 注意此ConfigMap名称与/nginx-ingress-controller 中 `--configmap=$(POD_NAMESPACE)/ingress-nginx-controller` 对应
namespace: ingress-nginx
labels:
app: ingress-nginx
data:
proxy-connect-timeout: "15" #这里有个坑,到家一定要注意是'-'不是'_'
EOF
# --tcp-services-configmap=
---
kind: ConfigMap
apiVersion: v1
metadata:
name: tcp-services
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
# --udp-services-configmap
---
kind: ConfigMap
apiVersion: v1
metadata:
name: udp-services
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx nginx-ingress-controller 使用 Configmap 作为配置存在控制器:
# 可以在 nginx-ingress-controller 部署资源清单中看见`--configmap=`参数
vim +328 deploy.yaml
containers:
- name: controller
image: pollyduan/ingress-nginx-controller:v0.47.0
imagePullPolicy: IfNotPresent
lifecycle:
preStop:
exec:
command:
- /wait-shutdown
args:
- /nginx-ingress-controller
- --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
- --election-id=ingress-controller-leader
- --ingress-class=nginx
- --configmap=$(POD_NAMESPACE)/ingress-nginx-controller # 使用 confimap 配置文件
- --validating-webhook=:8443
- --validating-webhook-certificate=/usr/local/certificates/cert
- --validating-webhook-key=/usr/local/certificates/key 查看ingress-nginx名称空间中的ConfigMap配置
kubectl apply -f nginx-config.yaml
# configmap/ingress-nginx-controller configured
kubectl get cm -n ingress-nginx
# NAME DATA AGE
# ingress-controller-leader-nginx 0 2d8h
# ingress-nginx-controller 0 2d8h
# kube-root-ca.crt 1 2d8h
kubectl describe cm -n ingress-nginx ingress-nginx-controller
# Name: ingress-nginx-controller
# Namespace: ingress-nginx
# Labels: app.kubernetes.io/component=controller
# app.kubernetes.io/instance=ingress-nginx
# app.kubernetes.io/managed-by=Helm
# app.kubernetes.io/name=ingress-nginx
# app.kubernetes.io/version=0.47.0
# helm.sh/chart=ingress-nginx-3.33.0
# Annotations: <none>
# Data
# ====
# proxy-connect-timeout:
# ----
# 15
# Events:
# Type Reason Age From Message
# ---- ------ ---- ---- -------
# Normal UPDATE 25s nginx-ingress-controller ConfigMap ingress-nginx/ingress-nginx-controller 验证是否在ingress-nginx-controller中配置生效:
kubectl get pod -n ingress-nginx -l app.kubernetes.io/component=controller
# NAME READY STATUS RESTARTS AGE
# ingress-nginx-controller-5df4f79b95-6p8rr 1/1 Running 0 2d8h
# 在 ingress-nginx-controller-5df4f79b95-6p8r 的 Pod 中 查看 nginx.conf 文件中 proxy_connect_timeout 参数是否为 15s
root@k8s-master-1:~/k8s/ingress/deployment# kubectl -n ingress-nginx exec -it ingress-nginx-controller-5df4f79b95-6p8rr bash
bash-5.1$ grep "proxy_connect_timeout" nginx.conf
proxy_connect_timeout 15s; # 企业实战 1.利用Ingress访问后端的Nginx Web和Tomcat后端综合实践。 实验目标:
1) 在腾讯云创建test.weiyigeek.top以及demo.weiyigeek.top证书以供Ingress使用。2) 分别在kubernetes集群中创建Nginx Web与Tomcat 后端应用。3) 分别使用Ingress控制器创建以SSL访问/为NginxWeb而/tomcatTomcat 后端需要BasicAuth(基础认证)访问功能详细流程:
Step 1.在腾讯云中申请免费的SSL证书(TrustAsia TLS)有效期一年,验证时需要设置域名的TXT解析, 申请地址:https://console.cloud.tencent.com/ssl。
WeiyiGeek.SSL证书申请
Step 2.分别在kubernetes集群中创建Nginx Web与Tomcat 后端应用以及创建名称空间。tee sts-svc-nginx-tomcat.yaml<<'EOF'
apiVersion: v1
kind: Namespace
metadata:
name: demo
---
# Service 服务创建(服务是软件服务的命名抽象)。
# kubectl api-resources | grep "service"
apiVersion: v1
kind: Service
metadata:
name: front-svc
namespace: demo
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
spec:
selector:
app: nginx-web
ports:
- port: 80
targetPort: 80
protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
name: backend-svc
namespace: demo
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
spec:
selector:
app: tomcat-web
ports:
- port: 8080
targetPort: 8080
protocol: TCP
sessionAffinity: None
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: web-front
namespace: demo
spec:
replicas: 2
serviceName: front-svc
selector:
matchLabels:
app: nginx-web
template:
metadata:
labels:
app: nginx-web
spec:
initContainers:
- name: init-html
image: busybox:latest
imagePullPolicy: IfNotPresent
command: ['sh', '-c', "echo hostname-${HOSTNAME}-${MSG} > /usr/share/nginx/html/index.html"]
env:
- name: MSG
value: "WeiyiGeek-Nginx"
volumeMounts:
- name: web
mountPath: "/usr/share/nginx/html"
securityContext:
privileged: true
containers:
- name: nginx
image: nginx:latest
imagePullPolicy: IfNotPresent
env:
- name: TZ
value: "Asia/Shanghai"
ports:
- name: nginx
containerPort: 80
volumeMounts:
- name: web
mountPath: "/usr/share/nginx/html"
volumes:
- name: web
emptyDir: {}
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: web-backend
namespace: demo
spec:
replicas: 2
serviceName: backend-svc
selector:
matchLabels:
app: tomcat-web
template:
metadata:
labels:
app: tomcat-web
spec:
initContainers:
- name: init-html
image: busybox:latest
imagePullPolicy: IfNotPresent
command: ['sh', '-c', "echo hostname-${HOSTNAME}-${MSG} > /usr/local/tomcat/webapps/ROOT/index.html"]
env:
- name: MSG
value: WeiyiGeek-Tomcat
volumeMounts:
- name: web
mountPath: "/usr/local/tomcat/webapps/ROOT/"
securityContext:
privileged: true
containers:
- name: nginx
image: "tomcat:8.5.69-jdk8-openjdk-slim-buster"
imagePullPolicy: IfNotPresent
env:
- name: TZ
value: "Asia/Shanghai"
ports:
- name: nginx
containerPort: 8080
volumeMounts:
- name: web
mountPath: "/usr/local/tomcat/webapps/ROOT/"
volumes:
- name: web
emptyDir: {}
EOF
# 利用资源清单进行创建nginx、Tomcat应用
kubectl create -f sts-svc-nginx-tomcat.yaml
# namespace/demo created
# service/front-svc created
# service/backend-svc created
# statefulset.apps/web-front created
# statefulset.apps/web-backend created Step 3.验证SVC服务负载均衡和请求查看创建的应用# 查看 Service 控制器对象
$ kubectl get svc -n demo -o wide
# NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
# backend-svc ClusterIP None <none> 8080/TCP 12m name=tomcat-web
# front-svc ClusterIP None <none> 80/TCP 12m name=nginx-web
# 查看 StatefulSet 控制器对象
$ kubectl get sts -n demo -o wide
# NAME READY AGE CONTAINERS IMAGES
# web-backend 2/2 13m nginx tomcat:8.5.69-jdk8-openjdk-slim-buster
# web-front 2/2 13m nginx nginx:latest
# 查看 nginx 与 tomcat 相关 Pod 信息
$ kubectl get pod -n demo -o wide --show-labels
# NAME READY STATUS RESTARTS AGE IP NODE LABELS
# web-backend-0 1/1 Running 0 13m 192.168.109.90 k8s-node-1 app=tomcat-web,controller-reVisio n-hash=web-backend-776459fc9d,statefulset.kubernetes.io/pod-name=web-backend-0
# web-backend-1 1/1 Running 0 13m 192.168.109.93 k8s-node-1 app=tomcat-web,controller-revision-hash=web-backend-776459fc9d,statefulset.kubernetes.io/pod-name=web-backend-1
# web-front-0 1/1 Running 0 13m 192.168.109.91 k8s-node-1 app=nginx-web,controller-revision-hash=web-front-89f7fcc75,statefulset.kubernetes.io/pod-name=web-front-0
# web-front-1 1/1 Running 0 13m 192.168.109.92 k8s-node-1 app=nginx-web,controller-revision-hash=web-front-89f7fcc75,statefulset.kubernetes.io/pod-name=web-front-1
# 查看 SVC 服务发现利用CoreDNS进行域名解析
$ nslookup front-svc.demo.svc.cluster.local. 10.96.0.10
# Server: 10.96.0.10
# Address: 10.96.0.10#53
# Name: front-svc.demo.svc.cluster.local
# Address: 192.168.109.91
# Name: front-svc.demo.svc.cluster.local
# Address: 192.168.109.92
$ nslookup backend-svc.demo.svc.cluster.local. 10.96.0.10
# ...
# Name: backend-svc.demo.svc.cluster.local
# Address: 192.168.109.90
# Name: backend-svc.demo.svc.cluster.local
# 请求查看 Nginx 与 Tomcat 应用回显。
~/k8s/ingress/demo# curl front-svc.demo.svc.cluster.local
# hostname-web-front-0-WeiyiGeek-Nginx
~/k8s/ingress/demo# curl front-svc.demo.svc.cluster.local
# hostname-web-front-1-WeiyiGeek-Nginx
~/k8s/ingress/demo# curl backend-svc.demo.svc.cluster.local:8080
# hostname-web-backend-1-WeiyiGeek-Tomcat
~/k8s/ingress/demo# curl backend-svc.demo.svc.cluster.local:8080
# hostname-web-backend-0-WeiyiGeek-Tomcat Step 4.采用 secrets 存储我们创建的证书, 参考地址:https://github.com/kubernetes/ingress-nginx/blob/master/docs/examples/PREREQUISITES.md#tls-certificates# Tips: kubectl api-resources | grep "secret" 可查看apiversions以及namespace是否支持
# 假设你已经将证书上传到k8s集群目录中并解压
$ ls
demo.weiyigeek.top.zip test.weiyigeek.top.zip
$ unzip demo.weiyigeek.top.zip -d demo.weiyigeek.top
$ unzip test.weiyigeek.top.zip -d test.weiyigeek.top
# 创建 tls 类型的 secret
$ cd /tmp/demo.weiyigeek.top/Nginx
kubectl -n demo create secret tls demoweiyigeektop --key 2_demo.weiyigeek.top.key --cert 1_demo.weiyigeek.top_bundle.crt
# secret/demoweiyigeektop created
$ cd /tmp/test.weiyigeek.top/Nginx
kubectl -n demo create secret tls testweiyigeektop --key 2_test.weiyigeek.top.key --cert 1_test.weiyigeek.top_bundle.crt
# secret/testweiyigeektop created Step 4.创建Ingress控制器的配置清单文件及Ingress对应规则。
tee ingress-demo.yaml <<'EOF'
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-demo
namespace: demo
annotations:
# 指定 Ingress Controller 的类型
kubernetes.io/ingress.class: "nginx"
# 指定我们的 rules 的 path 可以使用正则表达式
nginx.ingress.kubernetes.io/use-regex: "true"
# 连接超时时间,默认为 5s
nginx.ingress.kubernetes.io/proxy-connect-timeout: "600"
# 后端服务器回转数据超时时间,默认为 60s
nginx.ingress.kubernetes.io/proxy-send-timeout: "600"
# 后端服务器响应超时时间,默认为 60s
nginx.ingress.kubernetes.io/proxy-read-timeout: "600"
# 客户端上传文件,最大大小,默认为 20m
nginx.ingress.kubernetes.io/proxy-body-size: "10m"
# URL 重写
nginx.ingress.kubernetes.io/rewrite-target: /
spec:
# 默认后端服务指定
defaultBackend:
service:
name: front-svc
port:
number: 80
tls:
- hosts:
- test.weiyigeek.top
secretName: testweiyigeektop
- hosts:
- demo.weiyigeek.top
secretName: demoweiyigeektop
rules:
- host: test.weiyigeek.top
http:
paths:
- pathType: Prefix
path: /tomcat
backend:
service:
name: backend-svc
port:
number: 8080
- pathType: Prefix
path: /nginx
backend:
service:
name: front-svc
port:
number: 80
- host: demo.weiyigeek.top
http:
paths:
- pathType: Prefix
path: /
backend:
service:
name: front-svc
port:
number: 80
EOF Step 5.创建Ingress并查看相关信息$ kubectl create -f ingress-demo.yaml
# ingress.networking.k8s.io/ingress-demo created
# 查看 ingress-nginx 的 SVC
kubectl get svc -n ingress-nginx
# NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
# ingress-nginx-controller LoadBalancer 10.104.171.212 <pending> 80:31122/TCP,443:32155/TCP 24h
# ingress-nginx-controller-admission ClusterIP 10.99.168.221 <none> 443/TCP 24h
# 查看 ingress-demo 对象相关信息
$ kubectl get ing -n demo ingress-demo
# NAME CLASS HOSTS ADDRESS PORTS AGE
# ingress-demo <none> test.weiyigeek.top,demo.weiyigeek.top 80, 443 24h
$ kubectl describe ing -n demo ingress-demo
# Name: ingress-demo
# Namespace: demo
# Address:
# Default backend: front-svc:80 (192.168.109.91:80,192.168.109.92:80)
# TLS:
# testweiyigeektop terminates test.weiyigeek.top
# demoweiyigeektop terminates demo.weiyigeek.top
# Rules:
# Host Path Backends
# ---- ---- --------
# test.weiyigeek.top /tomcat backend-svc:8080 (192.168.109.90:8080,192.168.109.93:8080)
# demo.weiyigeek.top / front-svc:80 (192.168.109.91:80,192.168.109.92:80)
# Annotations: kubernetes.io/ingress.class: nginx
# nginx.ingress.kubernetes.io/proxy-body-size: 10m
# nginx.ingress.kubernetes.io/proxy-connect-timeout: 600
# nginx.ingress.kubernetes.io/proxy-read-timeout: 600
# nginx.ingress.kubernetes.io/proxy-send-timeout: 600
# nginx.ingress.kubernetes.io/rewrite-target: /
# nginx.ingress.kubernetes.io/use-regex: true
# Events: <none> Step 6.验证Ingress规则配置的应用分别访问 https://demo.weiyigeek.top 与 https://test.weiyigeek.top 站点。$ curl 'https://10.10.107.221' -H 'host: demo.weiyigeek.top' -i -k
# HTTP/2 200
# date: Sat, 17 Jul 2021 04:39:37 GMT
# content-type: text/html
# content-length: 37
# last-modified: Thu, 15 Jul 2021 12:24:55 GMT
# etag: "60f02917-25"
# accept-ranges: bytes
# strict-transport-security: max-age=15724800; includeSubDomains
# hostname-web-front-1-WeiyiGeek-Nginx
$ curl 'https://10.10.107.221/tomcat' -H 'host: test.weiyigeek.top' -i -k
# HTTP/2 200
# date: Sat, 17 Jul 2021 04:39:50 GMT
# content-type: text/html
# content-length: 40
# accept-ranges: bytes
# etag: W/"40-1626351892000"
# last-modified: Thu, 15 Jul 2021 12:24:52 GMT
# strict-transport-security: max-age=15724800; includeSubDomains
# hostname-web-backend-0-WeiyiGeek-Tomcat
WeiyiGeek.Ingress 应用
