Pecemaker+Corosync+Haproxy高可用Openstack集群实战

时间：2022-10-13 10:20:19人气：次作者：快盘下载我要评论

一、DRBD简介

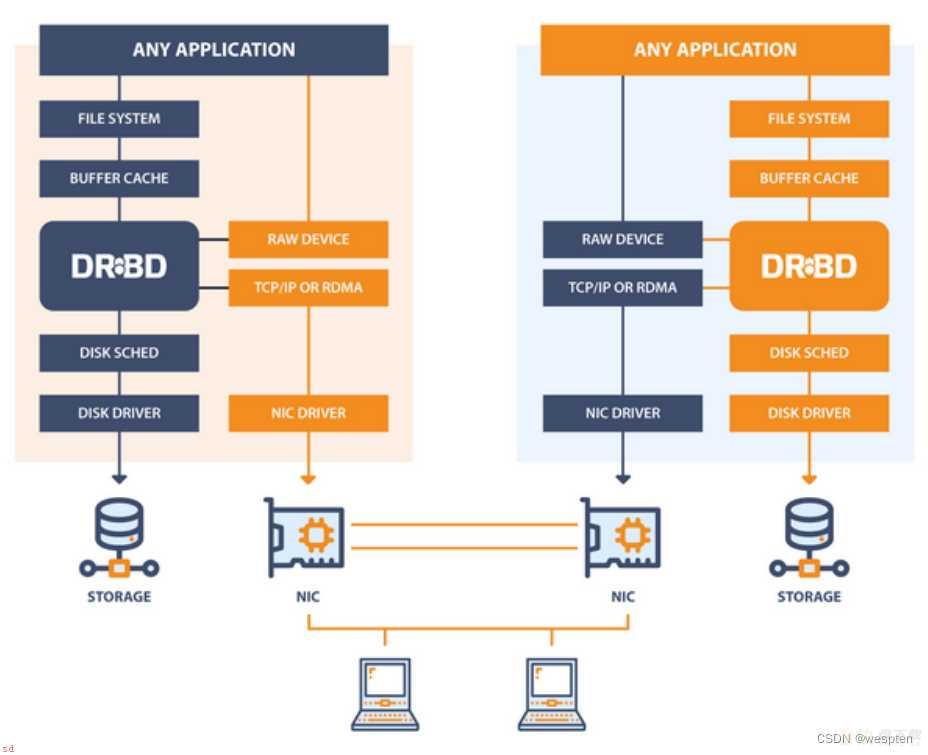

DRBD的全称为;Distributed Replicated Block Device (DRBD)分布式块设备复制;DRBD是由内核模块和相关脚本而构成;用以构建高可用性的集群。其实现方式是通过网络来镜像整个设备。它允许用户在远程机器上建立一个本地块设备的实时镜像。与心跳连接结合使用;也可以把它看作是一种网络RAID。

DRBD replication; DRBD synchronization DRBD负责接收数据;把数据写到本地磁盘;然后发送给另一个主机。另一个主机再将数据存到自己的磁盘中。目前;DRBD每次只允许对一个节点进行读写访问;这对于通常的故障切换高可用性集群来讲已经足够用了。以后的版本将支持两个节点进行读写存取。

一个DRBD系统由两个以上节点构成;与HA集群类似;也有主用节点和备用节点之分;在带有主要设备的节点上;应用程序和操作系统可以运行和访问DRBD设备。

在主节点写入的数据通过drbd设备存储到主节点的磁盘设备中;同时;这个数据也会自动发送到备用节点相应的drbd设备;最终写入备用节点的磁盘设备中;在备用节点上;drbd只是将数据从drbd设备写入到备用节点的磁盘设备中。

大部分现行高可用性集群都会使用共享存储;而DRBD也可以作为一个共享存储设备;使用DRBD不需要任何硬件的投资。因为它在IP网络中运行;IP SAN;;因此;利用DRBD作为共享存储设备;要节约很多成本;因为在价格上IP网络要比专用的存储网络经济的多。

在 DRBD 设备上创建文件系统之前;必须先设置DRBD设备。只能通过/dev/drbd设备;而非原始设备;操纵用户数据;因为DRBD使用原始设备的最后 128 MB 储存元数据。确保仅在 /dev/drbd设备上创建文件系统;而不在原始设备上创建。主机上的DRBD设备挂载到一个目录上进行使用.备机的DRBD设备无法被挂载,因为它是用来接收主机数据的;由DRBD负责操作。

DRBD是linux的内核的存储层中的一个分布式存储系统;可用使用DRBD在两台linux服务器之间共享块设备;共享文件系统和数据。类似于一个网络RAID1的功能;如图所示;

Pecemaker+Corosync+Haproxy高可用Openstack集群实战

官方网站;DRBD - LINBIT

文档;User Guides and Product Documentation - LINBIT

二、DRBD 安装配置

10.163.1.0/24;管理网络。

172.16.10.0/24;为存储网络(VLAN10) 。

1、基础配置

#防火墙和selinux
sed -i ;s/SELINUX=enforcing/SELINUX=permissive/; /etc/selinux/config
setenforce 0
systemctl disable firewalld --now

#drbd1
hostnamectl set-hostname drbd1
nmcli con add con-name bond1 ifname bond1 type bond mode active-backup
ipv4.method disabled ipv6.method ignore
nmcli con add con-name bond1-port1 ifname ens4 type bond-slave master bond1
nmcli con add con-name bond1-port2 ifname ens5 type bond-slave master bond1
nmcli con add con-name bond1-vlan10 ifname bond1-vlan10 type vlan id 10 dev
bond1 ipv4.address 172.16.10.1/24 ipv4.method man

#drbd2
hostnamectl set-hostname drbd2
nmcli con add con-name bond1 ifname bond1 type bond mode active-backup
ipv4.method disabled ipv6.method ignore
nmcli con add con-name bond1-port1 ifname ens4 type bond-slave master bond1
nmcli con add con-name bond1-port2 ifname ens5 type bond-slave master bond1
nmcli con add con-name bond1-vlan10 ifname bond1-vlan10 type vlan id 10 dev
bond1 ipv4.address 172.16.10.2/24 ipv4.method man

#drbd3 hostnamectl set-hostname drbd3
nmcli con add con-name bond1 ifname bond1 type bond mode active-backup
ipv4.method disabled ipv6.method ignore
nmcli con add con-name bond1-port1 ifname ens4 type bond-slave master bond1
nmcli con add con-name bond1-port2 ifname ens5 type bond-slave master bond1
nmcli con add con-name bond1-vlan10 ifname bond1-vlan10 type vlan id 10 dev
bond1 ipv4.address 172.16.10.3/24 ipv4.method man

#h3c-switch1
sys
int range ge1/0 ge2/0 ge3/0 ge4/0
p l b
p l t
p t p v a
vlan 10
exit
save

#h3c-switch2
sys int range ge1/0 ge2/0 ge3/0 ge4/0
p l b
p l t
p t p v a
vlan 10
exit s
ave

#drbd1~3软件仓库配置
#截止到2022年2月17号;centos8的软件仓库已经下架;所以将centos8的软件仓库切换成centos- stream8的软件仓库
rm -rf /etc/yum.repos.d/*
cat > /etc/yum.repos.d/iso.repo <<END
[AppStream]
name=AppStream
baseurl=http://mirrors.163.com/centos/8-stream/AppStream/x86_64/os/
enabled=1
gpgcheck=0
[BaseOS]
name=BaseOS
baseurl=http://mirrors.163.com/centos/8-stream/BaseOS/x86_64/os/
enabled=1
gpgcheck=0
[epel]
name=epel
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/8/everything/x86_64/
gpgcheck=0
END

yum clean all
yum makecache

#解析文件设置
cat > /etc/hosts <<END
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
172.16.10.1 drbd1
172.16.10.2 drbd2
172.16.10.3 drbd3
END

2、DRBD双节点部署

#drbd1~drbd2
yum -y group install ;Development Tools; && yum -y install drbd wget vim net- tools lvm2
wget https://pkg.linbit.com/downloads/drbd/9.0/drbd-9.0.32-1.tar.gz
tar xf drbd-9.0.32-1.tar.gz
yum update kernel -y && reboot -f
cd drbd-9.0.32-1 && make && make install
modprobe drbd
echo drbd > /etc/modules-load.d/drbd.conf
sed -i ;/options/aauto-promote yes;; /etc/drbd.d/global_common.conf
sed -i ;/net/aprotocol C;; /etc/drbd.d/global_common.conf

pvcreate /dev/vdb
vgcreate nfs /dev/vdb
lvcreate -n nfs -L 2G nfs

#resource配置文件
cat > /etc/drbd.d/nfs.res <<END
resource nfs {
meta-disk internal;
device /dev/drbd1;
net {
    verify-alg sha256;
}
on drbd1 {
    address 172.16.10.1:7788;
    disk /dev/nfs/nfs;
}
on drbd2 {
    address 172.16.10.2:7788;
    disk /dev/nfs/nfs;
    }
}
END

#创建drbd资源
drbdadm create-md nfs
drbdadm up nfs
drbdadm primary nfs --force

#格式化drbd1
mkfs.xfs /dev/drbd1

3、DRBD三节点部署

cat > /etc/drbd.d/nfs.res <<END
resource nfs {
meta-disk internal;
device /dev/drbd1;
net {
    verify-alg sha256;
}
on drbd1 {
    node-id 1;
    address 172.16.10.1:7788;
    disk /dev/nfs/nfs;
}
on drbd2 {
    node-id 2;
    address 172.16.10.2:7788;
    disk /dev/nfs/nfs;
}
on drbd3 {
    node-id 3;
    address 172.16.10.3:7788;
    disk /dev/nfs/nfs;
}
 connection {
    host drbd1 port 7001;
    host drbd2 port 7010;
}
connection {
    host drbd1 port 7012;
    host drbd3 port 7021;
}
connection {
    host drbd2 port 7002;
    host drbd3 port 7020;
}
END

三、Pacemaker 概述

1、集群管理软件介绍

集群资源管理软件种类众多;并有商业软件与开源软件之分。在传统业务系统的高可用架构中;商业集群管理软件的使用非常普遍;如IBM的集群系统管理器、PowerHA SystemMirror;也称为HACMP)以及针对DB2的 purescale数据库集群软件。

再如orcale的Solaris Cluster系列集群管理软件;以及Oracle数据库的ASM和RAC集群管理软件等商业高可用集群软件都在市场上占有很大的比例。此外;随着开源社区的发展和开源生态系统的扩大;很多商业集群软件也正在朝着开源的方向发展;如IBM开源的xCAT集软件而在Linux开源领域; Pacemaker/Corosync、 HAproxy/Keepalived等组合集群资源管理软件也有着极为广泛的应用。

2、Pacemaker简介

Pacemaker是Linux环境中使用最为广泛的开源集群资源管理器;Pacemaker利用集群基础架构(Corosync或者Heartbeat)提供的消息和集群成员管理功能;实现节点和资源级别的;故障检测;和;资源恢复;;从而最大程度保证集群服务的高可用。从逻辑功能而言;pacemaker在集群管理员所定义的;资源规则;驱动下;负责集群中;软件服务的全生命周期管理;;这种管理甚至包括整个软件系统以及软件系统彼此之间的交互。

Pacemaker在实际应用中可以管理任何规模的集群;由于其具备强大的资源依赖模型;这使得集群管理员能够精确描述和表达集群资源之间的关系;包括资源的顺序和位置等关系;。

同时;对于任何形式的软件资源;通过为其自定义资源启动与管理脚本;;资源代理;;;几乎都能作为资源对象而被Pacemaker管理。此外;需要指出的是;Pacemaker仅是资源管理器;;并不提供集群心跳信息;;由于任何高可用集群都必须具备心跳监测机制;因而很多初学者总会误以为Pacemaker本身具有心跳检测功能;而事实上Pacemaker的心跳机制主要基于Corosync或Heartbeat来实现。

从起源上来看;Pacemaker是为Heartbeat项目而开发的CRM项目的延续;CRM最早出现于2003年;是专门为Heartbeat项目而开发的集群资源管理器;而在2005年;随着Heartbeat2.0版本的发行才正式推出第一版本的CRM,即Pacemaker的前身。在2007年末;CRM正式从Heartbeat2.1.3版本中独立;之后于2008年Pacemaker0.6稳定版本正式发行;随后的2010年3月CRM项目被终止;作为CRM项目的延续;Pacemaker被继续开发维护;如今Pacemaker已成为开源集群资源管理器的事实标准而被广泛使用。

3、Hearteat子项目

Heartbeat到了3.0版本后已经被拆分为几个子项目了;这其中便包括Pacemaker、Heartbeat3.0、 Cluster Glue和 Resource Agent。

1. Heartbeat

Heartbeat项目最初的消息通信层被独立为新的Heartbeat项目;新的Heartbeat只负责维护集群各节点的信息以及它们之间的心跳通信;通常将Pacemaker与Heartbeat或者Corosync共同组成集群管理软件;Pacemaker利用Heartbeat或者Corosync提供的节点及节点之间的心跳信息来判断节点状态。

2. Cluster Clue

Cluster Clue相当于一个中间层;它用来将Heartbeat和Pacemaker关联起来;主要包含两个部分;即本地资源管理器;Local Resource Manager;LRM;和Fencing设备;Shoot The Other Node In The Head;STONITH;

3. Resource Agent

资源代理;Resource Agent;RA;是用来控制服务的启停;监控服务状态的脚本集合;这些脚本会被位于本节点上的LRM调用从而实现各种资源的启动、停止、监控等操作。

4. Pacemaker

Pacemaker是整个高可用集群的控制中心;用来管理整个集群的资源状态行为;客户端通过pacemaker来配置、管理、监控整个集群的运行状态。Pacemaker是一个功能非常强大并支持众多操作系统的开源集群资源管理器;Pacemaker支持主流的Linux系统;如Redhat的 RHEL系列、Fedora系列、 openSUSE系列、 Debian系列、 Ubuntu系列和 centos系列;这些操作系统上都可以运行Pacemaker并将其作为集群资源管理器。

4、Pacemaker功能

pacemaker的主要功能包括以下几方面;

1. 监测并恢复节点和服务级别的故障。

2. 存储无关;并不需要共享存储。

3. 资源无关;任何能用脚本控制的资源都可以作为集群服务。

4. 支持节点STONITH功能以保证集群数据的完整性和防止集群脑裂。

5. 支持大型或者小型集群。

6. 支持Quorum机制和资源驱动类型的集群。

7. 支持几乎是任何类型的冗余配置。

8. 自动同步各个节点的配置文件。

9. 可以设定集群范围内的Ordering、 Colocation and Anti-colocation等约束。

10. 高级服务类型支持;例如;

;1;Clone功能;即那些要在多个节点运行的服务可以通过Clone功能实现;Clone功能将会在多个节点上启动相同的服务;

;2;Multi-state功能;即那些需要运行在多状态下的服务可以通过Multi-state实现;在高可用集群的服务中;有很多服务会运行在不同的高可用模式下;如;Active/Active模式或者 Active/passive模式等;并且这些服务可能会在Active与standby(Passive)之间切换。

11. 具有统一的、脚本化的集群管理工具。

5、Pacemaker服务类型

Pacemaker对用户的环境没有特定的要求;这使得它支持任何类型的高可用节点冗余配置;包括Active/Active、Active/Passive、N;1、N;M、N-to-1 and N-to-N模式的高可用集群;用户可以根据自身对业务的高可用级别要求和成本预算;通过Pacemaker部署适合自己的高可用集群。

1. Active/Active模式

在这种模式下;故障节点上的访问请求或自动转到另外一个正常运行节点上;或通过负载均衡器在剩余的正常运行的节点上进行负载均衡。这种模式下集群中的节点通常部署了相同的软件并具有相同的参数配置;同时各服务在这些节点上并行运行。

Pecemaker

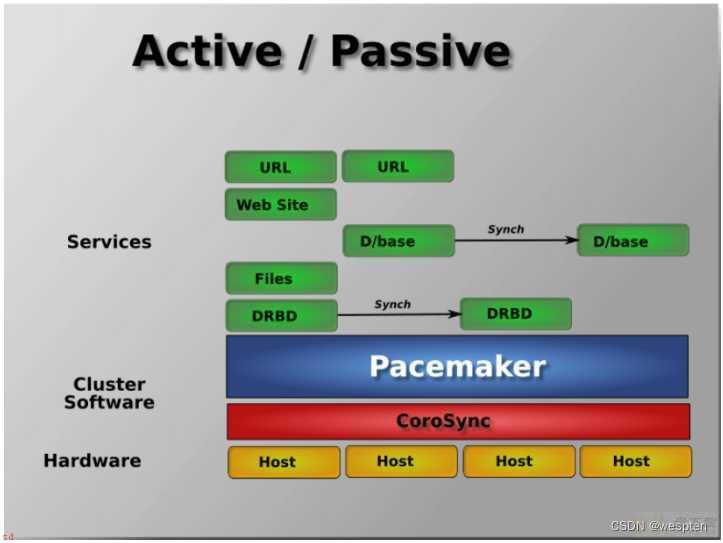

2. Active/Passive模式

在这种模式下;每个节点上都部署有相同的服务实例;但是正常情况下只有一个节点上的服务实例处于激活状态;只有当前活动节点发生故障后;另外的处于standby状态的节点上的服务才会被激活;这种模式通常意味着需要部署额外的且正常情况下不承载负载的硬件。

Haproxy

3. N;1模式

所谓的N;1就是多准备一个额外的备机节点;当集群中某一节点故障后该备机节点会被激活从而接管故障节点的服务。在不同节点安装和配置有不同软件的集群中;即集群中运行有多个服务的情况下;该备机节点应该具备接管任何故障服务的能力;而如果整个集群只运行同一个服务;则N;1模式便退变为Active/Passive模式。

4. N;M模式

在单个集群运行多种服务的情况下;N;1模式下仅有的一个故障接管节点可能无法提供充分的冗余;因此;集群需要提供M;M>l;个备机节点以保证集群在多个服务同时发生故障的情况下仍然具备高可用性;M的具体数目需要根据集群高可用性的要求和成本预算来权衡。

5. N-to-1模式

在N-to-1模式中;允许接管服务的备机节点临时成为活动节点;此时集群已经没有备机节点;;但是;当故障主节点恢复并重新加入到集群后(failover);备机节点上的服务会转移到主节点上运行;同时该备机节点恢复standby状态以保证集群的高可用。

6. N-to-N模式

N-to-N是Active/Active模式和N;M模式的结合;N-to-N集群将故障节点的服务和访问请求分散到集群其余的正常节点中;在N-to-N集群中并不需要有Standby节点的存在、但是需要所有Active的节点均有额外的剩余可用资源。

Pecemaker

6、Pacemaker架构

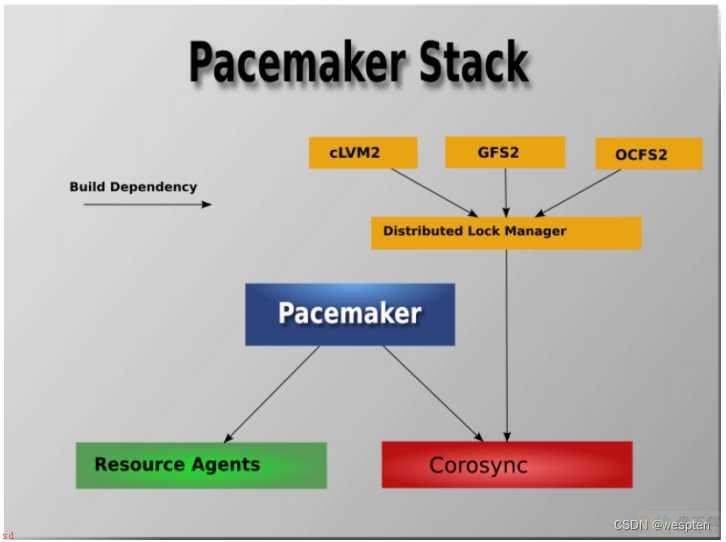

从高层次的集群抽象功能来看;Pacemaker的核心架构主要由集群;不相关组件;、;集群资源管理组件;和;集群底层基础模块;三个部分组成。

1. 底层基础模块;corosync;

底层的基础架构模块主要向集群提供可靠的消息通信、集群成员关系和等功能;底层基础模块主要包括像corosync、CMAN和Heartbeat等项目组件。

2. 集群无关组件;RA;

在Pacemaker架构中;这部分组件主要包括资源本身以及用于;启动;、;关闭;以及;监控;资源状态的脚本;同时还包括用于屏蔽和消除实现这些脚本所采用的不同标准之间差异的本地进程。虽然在运行多个实例时;资源彼此之间的交互就像一个分布式的集群系统;但是;这些实例服务之间仍然缺乏恰当的HA机制和独立于资源的集群治理能力;因此还需要后续集群组件的功能支持。

3. 资源管理

Pacemaker就像集群大脑;专门负责;响应;和;处理;与集群相关的事件;这些事件主要包括集群节点的;加入;、集群节点;脱离;;以及由资源故障、维护、计划的资源相关操作所引起的资源事件;同时还包括其他的一些管理员操作事件;如对配置文件的修改和服务重启等操作。在对所有这些事件的响应过程中;Pacemaker会计算出当前集群应该实现的最佳理想状态并规划出实现该理想状态后续需要进行的各种集群操作;这些操作可能包括了资源移动、节点停止;甚至包括使用远程电源管理模块来强制节点下线等。

当Pacemaker与Corosync集成时;Pacemaker也支持常见的主流开源集群文件系统;而根据集群文件系统社区过去一直从事的标准化工作;社区使用了一种通用的分布式锁管理器来实现集群文件系统的并行读写访问;这种分布式锁控制器利用了Corosync所提供的集群消息和集群成员节点处理能力;节点是在线或离线的状态;来实现文件系统集群;同时使用Pacemaker来对服务进行隔离。

Openstack

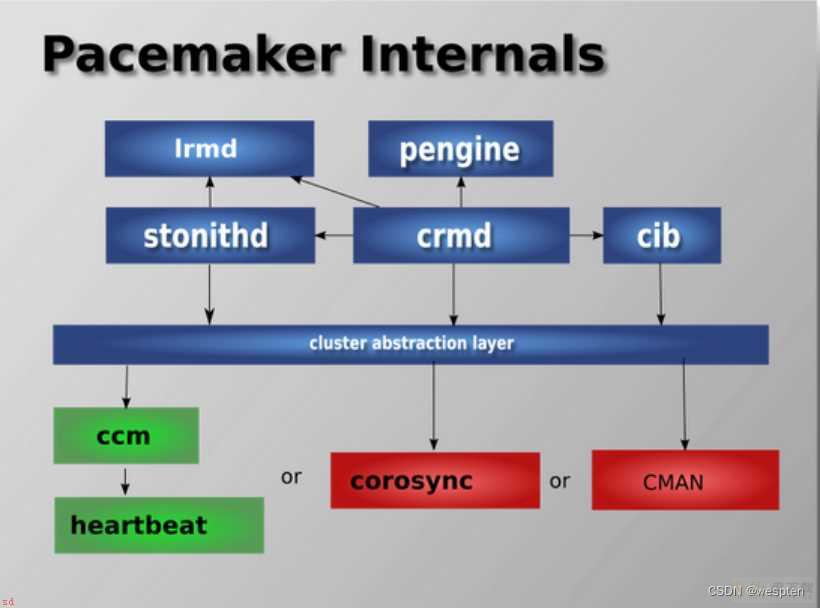

7、Pacemaker组件

Pacemaker作为一个独立的集群资源管理器项目;其本身由多个内部组件构成;这些内部组件彼此之间相互通信协作并最终实现了集群的资源管理;Pacemaker项目由五个内部组件构成;各个组件之间的关系如右图所示。

CIB;集群信息基础; Cluster Information Base;。

CRMd;集群资源管理进程;Cluster Resource Manager deamon;。

LRMd;本地资源管理进程(Local Resource Manager deamon;。

PEngine(PE);策略引擎(PolicyEngine;。

STONITHd;集群Fencing进程;Shoot The Other Node In The Head deamon;。

Corosync

CIB主要负责集群最基本的信息配置与管理;Pacemaker中的CIB主要使用;XML;的格式来显示集群的配置信息和集群所有资源的当前状态信息。CIB所管理的配置信息会自动在集群节点之间进行同步;PE将会使用CIB所提供的集群信息来规划集群的最佳运行状态。并根据当前CIB信息规划出集群应该如何控制和操作资源才能实现这个最佳状态;在PE做出决策之后;会紧接着发出资源操作指令;而PE发出的指令列表最终会被转交给集群最初选定的控制器节点;Designated controller;DC);通常DC便是运行Master CRMd的节点。

在集群启动之初;pacemaker便会选择某个节点上的CRM进程实例来作为集群Master CRMd,然后集群中的CRMd便会集中处理PE根据集群CIB信息所决策出的全部指令集。在这个过程中;如果作为Master的 CRM进程出现故障或拥有 Master CRM进程的节点出现故障;则集群会马上在其他节点上重新选择一个新的Master CRM进程。

在PE的决策指令处理过程中;DC会按照指令请求的先后顺序来处理PEngine发出的指令列表;简单来说;DC处理指令的过程就是把指令发送给本地节点上的LRMd;当前节点上的CRMd已经作为Master在集中控制整个集群;不会再并行处理集群指令;或者通过集群消息层将指令发送给其他节点上的CRMd进程;然后这些节点上的CRMd再将指令转发给当前节点的LRMd去处理。

当集群节点运行完指令后;运行有CRMd进程的其他节点会把他们接收到的全部指令执行结果以及日志返回给DC;即DC最终会收集全部资源在运行集群指令后的结果和状态;;然后根据执行结果的实际情况与预期的对比;从而决定当前节点是应该等待之前发起的操作执行完成再进行下一步的操作;还是直接取消当前执行的操作并要求PEngine根据实际执行结果再重新规划集群的理想状态并发出操作指令。

在某些情况下;集群可能会要求节点关闭电源以保证共享数据和资源恢复的完整性;为此;Pacemaker引入了节点隔离机制;而隔离机制主要通过STONITH进程实现。STONITH是一种强制性的隔离措施;STONINH功能通常是依靠控制远程电源开关以关闭或开启节点来实现。在Pacemaker中;STONITH设备被当成资源模块并被配置到集群信息CIB中;从而使其故障情况能够被轻易地监控到。

同时;STONITH进程;STONITHd)能够很好地理解STONITH设备的拓扑情况;因此;当集群管理器要隔离某个节点时;只需STONITHd的客户端简单地发出Fencing某个节点的请求;STONITHd就会自动完成全部剩下的工作;即配置成为集群资源的STONITH设备最终便会响应这个请求;并对节点做出Fenceing操作;而在实际使用中;根据不同厂商的服务器类型以及节点是物理机还是虚拟机;用户需要选择不同的STONITH设备。

四、Pacemaker集群资源管理

1、Pacemaker集群管理工具pcs

可以用用cibadmin命令行工具来查看和管理pacemaker的集群配置信息;集群CIB中的配置信息量非常大而且以XML语言呈现;对于仅由极少数节点和资源所组成的集群;cibadmin也许是个可行方案。

但是;对于拥有大量节点和资源的大规模集群;通过编辑XML文件来查看修改集群配置显然是非常艰难而且极为不现实的工作由于XML文件内容条目极多;因此用户在修改XML文件的过程中极易出现人为错误。而在开源社区里;简单实用才是真正开源精神的体现;对于开源系统中任何文件配置参数的修改;简化统一的命令行工具才是最终的归宿。

随着开源集群软件Pacemaker版本的不断更新;社区推出了两个常用的集群管理命令行工具;即集群管理员最为常用的;pcs;和;crmsh;命令。本文使用的是pcs命令行工具;关于crmsh的更多使用方法和手册可以参考Pacemaker的官方网站。

在pacemaker集群中PCS命令行工具几乎可以实现集群管理的各种功能;例如;全部受控的pacemaker和配置属性的变更管理都可以通过pcs实现。此外;需要注意的是;pcs命令行的使用对系统中安装的pacemaker和corosync软件版本有一定要求;即Pacemaker1.1.8及其以上版本; Corosync 2.0及其以上版本才能使用pcs命令行工具进行集群管理。

2、Pacemaker集群资源管理

1. 集群资源代理介绍

在pacemaker高可用集群中;资源就是集群所维护的高可用服务对象。根据用户的配置;资源有不同的种类;其中最为简单的资源是原始资源(primitive Resource),此外还有相对高级和复杂的资源组(Resource Group)和克隆资源(Clone Resource)等集群资源概念。

在Pacemaker集群中;每一个原始资源都有一个资源代理(Resource Agent, RA);RA是一个与资源相关的外部脚本程序;该程序抽象了资源本身所提供的服务并向集群呈现一致的视图以供集群对该资源进行操作控制。通过RA;几乎任何应用程序都可以成为Pacemaker集群的资源从而被集群资源管理器和控制。

RA的存在;使得集群资源管理器可以对其所管理的资源;不求甚解;;即集群资源管理器无需知道资源具体的工作逻辑和原理;RA已将其封装;;资源管理器只需向RA发出start、stop、Monitor等命令;RA便会执行相应的操作。从资源管理器对资源的控制过程来看;集群对资源的管理完全依赖于该资源所提供的;即资源的RA脚本功能直接决定了资源管理器可以对该资源进行何种控制;因此一个功能完善的RA在发行之前必须经过充分的功能测试。

在多数情况下;资源RA以shell脚本的形式提供;当然也可以使用其他比较流行的如c、python、perl等语言来实现RA。

在pacemaker集群中;资源管理器支持不同种类的资源代理;这些受支持的资源代理包括OCF、LSB、 Upstart、 systemd、 service、 Fencing、 Nagios Plugins;而在Linux系统中;最为常见的有 OCF(open Cluster Framework)资源代理 LSB;Linux standard Base)资源代理、systemd和 service资源代理。

1;OCF

OCF是开放式集群框架的简称;从本质上来看;OCF标准其实是对LSB标准约定中init脚本的一种延伸和扩展。OCF标准支持参数传递、自我功能描述以及可扩展性;此外;OCF标准还严格定义了操作执行后的返回代码;集群资源管理器将会根据0资源代理返回的执行代码来对执行结果做出判断。

因此;如果OCF脚本错误地提供了与操作结果不匹配的返回代码;则执行操作后的集群资源行为可能会变得莫名其妙;而对于不熟悉OCF脚本的用户;这将会是个非常困惑和不解的问题;尤其是当集群依赖于OCF返回代码来在资源的完全停止状态、错误状态和不确定状态之间进行判断的时候。因此;在OCF脚本发行使用之前一定要经过充分的功能测试;否则有问题的OCF脚本将会扰乱整个集群的资源管理。在Pacemaker集群中;OCF作为一种可以自我描述和高度灵活的行业标准;其已经成为使用最多的资源类别。

2;LSB

LSB是最为传统的Linux“资源标准之一;例如在Redhat的RHEL6及其以下版本中;或者对应的centos版本中;;经常在/etc/init.d目录下看到的资源启动脚本便是LSB标准的资源控制脚本。

通常;LSB类型的脚本是由操作系统的发行版本提供的;而为了让集群能够使用这些脚本;它们必须遵循LSB的规定;LSB类型的资源是可以配置为系统启动时自动启动的;但是如果需要通过集群资源管理器来控制这些资源;则不能将其配置为自动启动;而是由集群根据策略来自行启动。

3;Systemd

在很多Linux的最新发行版本中;systemd被用以替换传统;sysv;风格的系统启动初始化进程和脚本;如在Redhat的RHEL7和对应的centos7操作系统中;systemd已经完全替代了sysvinit启动系统;同时systemd提供了与sysvinit以及LSB风格脚本兼容的特性;因此老旧系统中已经存在的服务和进程无需修改便可使用systemd在systemd中;服务不再是/etc/init.d目录下的shell脚本;而是一个单元文件;unit-file;;Systemd通过单元文件来启停和控制服务;Pacemaker提供了管理Systemd类型的应用服务的功能。

4;Service

Service是Pacemaker支持的一种特别的服务别名;由于系统中存在各种类型的服务;如LSB、Systemd和OCF);Pacemaker使用服务别名的方式自动识别在指定的集群节点上应该使用哪一种类型的服务。当一个集群中混合有Systemd、LSB和OCF类型资源的时候;Service类型的资源代理别名就变得非常有用;例如在存在多种资源类别的情况下;Pacemaker将会自动按照LSB、Systemd、Upstart的顺序来查找启动资源的脚本。

在pacemaker中;每个资源都具有属性;资源属性决定了该资源RA脚本的位置;以及该资源隶属于哪种资源标准。例如;在某些情况下;用户可能会在同一系统中安装不同版本或者不同来源的同一服务;如相同的RabbitMQ Cluster安装程序可能来自RabbitMQ官方社区也可能来自Redhat提供的RabbitMQ安装包;;在这个时候;就会存在同一服务对应多个版本资源的情况;为了区分不同来源的资源;就需要在定义集群资源的时候通过资源属性来指定具体使用哪个资源。

在pacemaker集群中;资源属性由以下几个部分构成;

Resource_id;用户定义的资源名称。

Standard;脚本遵循的标准;允许值为OCF、Service、Upstart、Systemd、LSB、Stonith。

Type;资源代理的名称;如常见的IPaddr便是资源的。

Provider;OCF规范允许多个供应商提供同一资源代理;Provider即是指资源脚本的提供者;多数OCF规范提供的资源代均使用Heartbeat作为Provider。

2. 集群资源约束

集群是由众多具有特定功能的资源组成的集合;集群中的每个资源都可以对外提供独立服务;但是资源彼此之间存在依赖与被依赖的关系。

如资源B的启动必须依赖资源A的存在;因此资源A必须在资源B之前启动;再如资源A必须与资源B位于同一节点以共享某些服务;则资源B与A在故障切换时必须作为一个逻辑整体而同时迁移到其他节点;在pacemaker中;资源之间的这种关系通过资源约束或限制;Resource constraint)来实现。pacemaker集群中的资源约束可以分为以下几类;

1.位置约束(Location);位置约束限定了资源应该在哪个集群节点上启动运行。

2.顺序约束(Order);顺序约束限定了资源之间的启动顺序。

3.资源捆绑约束(Colocation);捆绑约束将不同的资源捆绑在一起作为一个逻辑整体;即资源A位于c节点;则资源B也必须位于c节点;并且资源A、B将会同时进行故障切换到相同的节点上。

localtion示例;

在资源配置中;Location约束在限定运行资源的节点时非常有用;例如在Openstack高可用集群配置中;我们希望Nova-ompute资源仅运行在计算节点上;而nova-api和Neutron-sever等资源仅运行在控制节点上;这时便可通过资源的Location约束来实现。

例如;我们先给每一个节点设置不同的osprole(openstack role)属性;属性名称可自定义;;计算节点中该值设为compute;控制节点中该值设为controller;如下;

pcs property set --node computel osprole=compute
pcs property set --node computel osprole=compute
pcs property set --node controller1 osprole=controller
pcs property set --node controller2 osprole=controller
pcs property set --node controller3 osprole=controller

然后;通过为资源设置Location约束;便可将Nova-compute资源仅限制在计算节点上运行;Location约束的设置命令如下;

pcs constraint location nova-compute-clone rule resource-discovery=exclusive score=0 osprole eq compute

即资源nova-compute-clone仅会在osprole等于compute的节点上运行;也即计算节点上运行。

order示例;

在pacemaker集群中;order约束主要用来解决资源的启动依赖关系;资源启动依赖在Linux系统中非常普遍。例如在Openstack高可用集群配置中;需要先启动基础服务如RabbitMQ和mysql等;才能启动Openstack的核心服务;因为这些服务都需要使用消息队列和数据库服务。

再如在网络服务Neutron中;必须先启动Neutron-server服务;才能启动Neutron的其他Agent服务;因为这些Agent在启动时均会到Neutron-sever中进行服务注册。Pacemaker集群中解决资源启动依赖的方案便是order约束。

例如;在openstack的网络服务Neutron配置中;与Neutron相关的资源启动顺序应该如下;Keystone->Neutron-server->Neutron-ovs-cleanup->Neutron-netns-cleanup->Neutron-openvswitch-agent->Neutron-dncp-agent->Neutron-l3-agent。

上述依赖关系可以通过如下Order约束实现;

pcs constraint order start keystone-clone then neutron-server-api-clone
pcs constraint order start neutron-server-api-clone then neutron-ovs-cleanup-clone
pcs constraint order start neutron-ovs-cleanup-clone then Neutron-netns-cleanup-clone
pcs constraint order start Neutron-netns-cleanup-clonethen Neutron-openvswitch-agent-clone
pcs constraint order start Neutron-openvswitch-agent-clone then Neutron-dncp-agent-clone
pcs constraint order start Neutron-dncp-agent-clone then Neutron-l3-agent-clone

colocation示例;

Colocation约束主要用于根据资源A的节点位置来决定资源B的位置;即在启动资源B的时候;会依赖资源A的节点位置。例如将资源A与资源B进行Colocation约束;假设资源A已经运行在node1上;则资源B也会在node1上启动;而如果node1故障;则资源B与A会同时切换到node2而不是其中某个资源切换到node3。

在Openstack高可用集群配置中;通常需要将Libvirtd-compute与Neutron-openvswitch-agent进行资源捆绑;要将Nova-compute与Libvirtd-compute进行资源捆绑;则 Colocation约束的配置如下;

pcs constraint colocation add nova-compute-clone with libvirtd-compute-clone
pcs constraint colocation add libvirtd-compute-clone with neutron-openvswitch-agent-compute-clone

Location约束、Order约束和Colocation约束是Pacemaker集群中最为重要的三个约束通过这几个资源约束设置;集群中看起来彼此独立的资源就会按照预先设置有序运行。

3. 集群资源类型

在Pacemaker集群中;各种功能服务通常被配置为集群资源;从而接受资源管理器的调度与控制;资源是集群管理的最小单位对象。在集群资源配置中;由于不同高可用模式的需求;资源通常被配置为不同的运行模式;例如Active/Active模式、Active/Passive模式以及Master/Master模式和Master/Slave模式;而这些不同资源模式的配置均需要使用Pacemaker提供的高级资源类型;这些资源类型包括资源组、资源克隆和资源多状态等。

1;资源组

在Pacemaker集群中;经常需要将多个资源作为一个资源组进行统一操作;例如将多个相关资源全部位于某个节点或者同时切换到另外的节点;并且要求这些资源按照一定的先后顺序启动;然后以相反的顺序停止;为了简化同时对多个资源进行配置;供了高级资源类型一资源组。通过资源组;用户便可并行配置多个资源。

2;资源克隆

克隆资源是Pacemaker集群中的高级资源类型之一;通过资源克隆;集群管理员可以将资源克隆到多个节点上并在启动时使其并行运行在这些节点上;例如可以通过资源克隆的形式在集群中的多个节点上运行冗余IP资源实例;并在多个处于Active状态的资源之间实现负载均衡。通常而言;凡是其资源代理支持克隆功能的资源都可以实现资源克隆;但需要注意的是;只有己经规划为可以运行在Active/Active高可用模式的资源才能在集群中配置为克隆资源。

配置克隆资源很简单;通常在创建资源的过程中同时对其进行资源克隆;克隆后的资源将会在集群中的全部节点上存在;并且克隆后的资源会自动在其后添加名为clone的后缀并形成新的资源ID;资源创建并克隆资源的语法如下;

pcs resource create resource_id standard:provider: type| type [resource options] --clone[meta clone_options]

克隆后的资源ID不再是语法中指定的Resource_id;而是Resource_id-clone并且该资源会在集群全部节点中存在。

在Pacemaker集群中;资源组也可以被克隆;但是资源组克隆不能由单一命令完成;必须先创建资源组然后再对资源组进行克隆;资源组克隆的命令语法如下;

pcs resource clone resource_id group_name [clone_optione] ...

克隆后资源的名称为Resource_id-clone或Group_name-clone在资源克隆命令中;可以指定资源克隆选项(clone_options),如下是常用的资源克隆选项及其意义。

Priority/Target-role/ls-manage;这三个克隆资源属性是从被克隆的资源中继承而来的。

Clone-max;该选项值表示需要存在多少资源副本才能启动资源;默认为该集群中的节点数。

Clone-node-max;表示在单一节点上能够启动多少个资源副本;默认值为1。

Notify;表示在停止或启动克隆资源副本时;是否在开始操作前和操作完成后告知其他所有资源副本;允许值为False和True;默认值为False。

Globally-unique;表示是否允许每个克隆副本资源执行不同的功能;允许值为False和True。如果其值为False,则不管这些克隆副本资源运行在何处;它们的行为都是完全和同的;因此每个节点中有且仅有一个克隆副本资源处于Active状态。其值为True,则运行在某个节点上的多个资源副本实例或者不同节点上的多个副本实例完全不一样。如果Clone-node-max取值大于1;即一个节点上运行多个资源副本;那么Globally-unique的默认值为True;否则为False。Ordered;表示是否顺序启动位于不同节点上的资源副本;True为顺序启动;False为并行启动;默认值是False。

Interleave;该属性值主要用于改变克隆资源或者Masters资源之间的ordering约束行为;Interleave可能的值为True和False,如果其值为False,则位于相同节点上的后一个克隆资源的启动或者停止操作需要等待前一个克隆资源启动或者停止完成才能进行;而如果其值为 True;则后一个克隆资源不用等待前一个克隆资源启动或者停止完成便可进行启动或者停止操作。 Interleave的默认值为False。

在通常情况下;克隆资源会在集群中的每个在线节点上都存在一个副本;即资源副本数目与集群节点数目相等;但是;集群管理员可以通过资源克隆选项Clone-max将资源副本数目设为小于集群节点数目;如果通过设置使得资源副本数目小于节点数目;则需要通过资源位置约束; Location Constraint)将资源副本指定到相应的节点上;设置克隆资源的位置约束与设置常规资源的位置约束类似。

例如要将克隆资源Web-clone限制在node1节点上运行;则命令语法如下;

 pcs constraint location web-clone prefers node1

4. 资源多态

多状态资源是Pacemaker集群中实现资源Master/Master或Master/Slave高可用模式的机制;并且多态资源是一种特殊的克隆资源;多状态资源机制允许资源实例在同一时刻仅处于Master状态或者Slave状态。

多状态资源的创建只需在普通资源创建的过程中指定一Master参数即可;Master/Slave多状态类型资源的创建命令语法如下;

pcs resource create resource_id standard;provider: type| type [resource options] --master [meta master_options]

多状态资源是一种特殊的克隆资源;默认情况下;多状态资源创建后也会在集群的全部节点中存在;多状态资源创建后在集群中的资源名称形如Resource_id-master。

需要指出的是;在Master/Slave高可用模式下;尽管在集群中仅有一个节点上的资源会处于Master状态;其他节点上均为Slave状态;但是全部节点上的资源在启动之初均为Slave状态;之后资源管理器会选择将某个节点的资源提升为Master。

另外;用户还可以将已经存在的资源或资源组创建为多状态资源;命令语法如下;

pcs resource master master/slave_name resource_id group_name [master_options]

在多状态资源的创建过程中;可以通过Master选项;Master_options)来设置多状态资源的属性;Master_options主要有以下两种属性值;

Master-max;其值表示可将多少个资源副本由Slave状态提升至Master状态;默认值为1;即仅有一个Master。

Master-node-max;其值表示在同一节点中可将多少资源副本提升至Master状态;默认值为1。

在通常情况下;多状态资源默认会在每个在线的集群节点中分配一个资源副本;如果希望资源副本数目少于节点数目;则可通过资源的Location约束指定运行资源副本的集群节点;多状态资源的Location约束在实现的命令语法上与常规资源没有任何不同。此外;在配置多状态资源的Ordering约束时;可以指定对资源进行的操作是提升;Promote;还是降级(Demote)操作;

pcs constraint order [action] resource_id then [action] resource_id [options]

Promote操作即是将对应的资源;resource_id)提升为Master状态;Demote操作即是将资源(resource_id)降级为Slave状态;通过ordering约束即可设定被提升或降级资源的顺序。

五、Pacemaker集群部署

参考;ClusterLabs > Pacemaker Documentation

Pecemaker

1、Pacemaker集群基础安装配置

#CentOS-Stream8
hostnamectl set-hostname pcs1
hostnamectl set-hostname pcs2

#防火墙和selinux
sed -i ;s/SELINUX=enforcing/SELINUX=permissive/; /etc/selinux/config
setenforce 0
systemctl disable firewalld --now

rm -rf /etc/yum.repos.d/*
cat > /etc/yum.repos.d/iso.repo <<END
[AppStream]
name=AppStream
baseurl=http://mirrors.163.com/centos/8-stream/AppStream/x86_64/os/
enabled=1
gpgcheck=0
[BaseOS]
name=BaseOS
baseurl=http://mirrors.163.com/centos/8-stream/BaseOS/x86_64/os/
enabled=1
gpgcheck=0
[epel]
name=epel
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/8/Everything/x86_64/
gpgcheck=0
[HA]
name=HA
baseurl=http://mirrors.163.com/centos/8-stream/HighAvailability/x86_64/os/
gpgcheck=0
END

yum clean all
yum makecache

#yum update

#yum install -y pacemaker pcs psmisc policycoreutils-python3

#启动服务
systemctl enable pcsd.service --now

#给hacluster用户设置密码
echo ;yydsmm; | passwd hacluster --stdin

#添加解析文件
cat > /etc/hosts <<END
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.188.133 pcs1
192.168.188.131 pcs2
END

#配置集群使corosync生效(在一个节点上做就可以)
pcs host auth pcs1 pcs2 -u hacluster -p yydsmm
pcs cluster setup mycluster pcs1 pcs2

#启动集群(在一个节点上做就可以);相当于启动pacemaker和corosync的服务,但是不会开机自启动;
pcs cluster start --all

#由于开机自启动有可能发生脑裂;所以不设置开机自启动

#查看集群状态
pcs status

#关掉fencing功能
pcs property set stonith-enabled=false


2、Pacemaker部署Active/Passive模式
pcs resource create liuzong ocf:heartbeat:IPaddr2 ip=192.168.188.200 cidr_netmask=24 op monitor interval=30s

#设置资源的粘性
pcs resource defaults update resource-stickiness=100

3、部署httpd
#两个节点安装httpd
yum install -y httpd

#设置网页内容
cat <<-END >/var/www/html/index.html
<html>
<body>My Test Site - $(hostname)</body>
</html>
END

#开启apache的URL状态
cat <<-END >/etc/httpd/conf.d/status.conf
<Location /server-status>
 SetHandler server-status
Require local
</Location>
END

#pacemaker接管apache
pcs resource create WebSite ocf:heartbeat:apache
configfile=/etc/httpd/conf/httpd.conf
statusurl=;http://localhost/server-status;
op monitor interval=1min

pcs constraint colocation add WebSite with liuzong INFINITY
pcs constraint order liuzong then WebSite
pcs constraint location WebSite prefers pcs2=50
pcs resource move WebSite pcs2

4、Pacemaker;DRBD;NFS部署
pcs property set stonith-enabled=false

pcs resource defaults resource-stickiness=100

yum -y install drbd-pacemaker

#获取集群当前的配置文件
pcs cluster cib drbd_cfg

pcs -f drbd_cfg resource create nfsdrbd ocf:linbit:drbd drbd_resource=nfs op monitor interval=;29s; role=;Master; op monitor interval=;31s; role=;Slave; op start interval=;0s; timeout=;240s; op stop interval=;0s; timeout=;100s;

pcs -f drbd_cfg resource promotable nfsdrbd promoted-max=1 promoted-node-max=1 clone-max=2 clone-node-max=1 notify=true

pcs -f drbd_cfg resource create drbdfsnfs Filesystem device=;/dev/drbd1; directory=;/mnt/nfs/; fstype=;xfs; op start interval=;0s; timeout=;60s; op stop interval=;0s; timeout=;60s; op monitor interval=;20s; timeout=;40s;

pcs -f drbd_cfg constraint colocation add drbdfsnfs with nfsdrbd-clone INFINITY with-rsc-role=Master

pcs -f drbd_cfg constraint order promote nfsdrbd-clone then start drbdfsnfs

pcs -f drbd_cfg resource create NFS-Server systemd:nfs-server op monitor interval=;20s; op start interval=;0s; timeout=;40s; op stop interval=;0s; timeout=;20s; pcs -f drbd_cfg constraint colocation add NFS-Server with drbdfsnfs

pcs -f drbd_cfg constraint order drbdfsnfs then NFS-Server

pcs -f drbd_cfg resource create exportfsdir ocf:heartbeat:exportfs directory=;/mnt/nfs; fsid=;1; clienTSPec=;192.168.188.0/24; unlock_on_stop=;1; options=;rw,sync,no_root_squash; op start interval=;0s; timeout=;40s; op stop interval=;0s; timeout=;120s; op monitor interval=;10s; timeout=;20s;

pcs -f drbd_cfg constraint colocation add NFS-Server with exportfsdir

pcs -f drbd_cfg constraint order exportfsdir then NFS-Server

pcs -f drbd_cfg resource create nfsClusterIP ocf:heartbeat:IPaddr2 ip=192.168.188.200 cidr_netmask=24 op monitor interval=30s

pcs -f drbd_cfg constraint order exportfsdir then nfsClusterIP

pcs -f drbd_cfg constraint colocation add nfsClusterIP with exportfsdir

pcs -f drbd_cfg constraint location nfsdrbd-clone prefers pcs1=INFINITY pcs2=50

pcs cluster cib-push drbd_cfg --config


七、Pacemaker实现KVM HA
网络拓扑;

1、磁盘分配和drbd创建
pvcreate /dev/sdc
vgcreate vm /dev/sdc
lvcreate -n master -l50%free vm
lvcreate -n worker -l100%free vm

#resource配置文件
cat > /etc/drbd.d/master.res <<END
resource master {
meta-disk internal;
device /dev/drbd2;
net {
     verify-alg sha256;
}
on pcs1 {
    address 192.168.188.133:7791;
    disk /dev/vm/master;
}
on pcs2 {
     address 192.168.188.131:7791;
     disk /dev/vm/master;
}
}
END

cat > /etc/drbd.d/worker.res <<END
resource worker {
meta-disk internal;
device /dev/drbd3;
net {
    verify-alg sha256;
    }
on pcs1 {
    address 192.168.188.133:7792;
    disk /dev/vm/worker;
}
on pcs2 {
    address 192.168.188.131:7792;
    disk /dev/vm/worker;
}
}
END

drbdadm create-md master
drbdadm create-md worker
drbdadm up master
drbdadm up worker

#pcs1
drbdadm primary master --force
drbdadm primary worker --force

#格式化
mkfs.xfs /dev/drbd2
mkfs.xfs /dev/drbd3

2、Pacemaker接管drbd
mkdir /mnt/master /mnt/worker

#挂载点需要在两个节点上都创建
pcs cluster cib drbd_cfg

pcs -f drbd_cfg resource create masterdrbd ocf:linbit:drbd drbd_resource=master op monitor interval=;29s; role=;Master; op monitor interval=;31s; role=;Slave; op start interval=;0s; timeout=;240s; op stop interval=;0s; timeout=;100s;

pcs -f drbd_cfg resource promotable masterdrbd promoted-max=1 promoted-node- max=1 clone-max=2 clone-node-max=1 notify=true

pcs -f drbd_cfg resource create drbdfsmaster Filesystem device=;/dev/drbd2; directory=;/mnt/master/; fstype=;xfs; op start interval=;0s; timeout=;60s; op stop interval=;0s; timeout=;60s; op monitor interval=;20s; timeout=;40s;

pcs -f drbd_cfg constraint colocation add drbdfsmaster with masterdrbd-clone INFINITY with-rsc-role=Master

pcs -f drbd_cfg constraint order promote masterdrbd-clone then start drbdfsmaster pcs cluster cib-push drbd_cfg --config

pcs cluster cib drbd_cfg pcs -f drbd_cfg resource create workerdrbd ocf:linbit:drbd drbd_resource=worker op monitor interval=;29s; role=;Master; op monitor interval=;31s; role=;Slave; op start interval=;0s; timeout=;240s; op stop interval=;0s; timeout=;100s;

pcs -f drbd_cfg resource promotable workerdrbd promoted-max=1 promoted-node- max=1 clone-max=2 clone-node-max=1 notify=true

pcs -f drbd_cfg resource create drbdfsworker Filesystem device=;/dev/drbd3; directory=;/mnt/worker/; fstype=;xfs; op start interval=;0s; timeout=;60s; op stop interval=;0s; timeout=;60s; op monitor interval=;20s; timeout=;40s;

pcs -f drbd_cfg constraint colocation add drbdfsworker with workerdrbd-clone INFINITY with-rsc-role=Master

pcs -f drbd_cfg constraint order promote workerdrbd-clone then start drbdfsworker

pcs cluster cib-push drbd_cfg --config

pcs constraint location masterdrbd-clone prefers pcs1=INFINITY pcs2=50

pcs constraint location workerdrbd-clone prefers pcs1=INFINITY pcs2=50

3、在pcs1上部署VM
#安装KVM(两个节点;必须开启cpu虚拟化)
yum -y install qemu-kvm libvirt libvirt-client libguestfs-tools virt-install
systemctl enable libvirtd --now

#primary节点
wget https://cloud.centos.org/centos/8-stream/x86_64/images/CentOS-Stream-GenericCloud-8-20220125.1.x86_64.qcow2
[root;pcs1 ~]# mv CentOS-Stream-GenericCloud-8-20220125.1.x86_64.qcow2 /mnt/master/
[root;pcs1 ~]# cd /mnt/master/

virt-customize -a ./CentOS-Stream-GenericCloud-8-20220125.1.x86_64.qcow2  --root-password password:redhat123 --selinux-relabel

[root;pcs1 master]# mv CentOS-Stream-GenericCloud-8-20220125.1.x86_64.qcow2 os.qcow2

for i in {1..3}
do
cp /mnt/master/os.qcow2 /mnt/master/master${i}.qcow2
cp /mnt/master/os.qcow2 /mnt/worker/worker${i}.qcow2
done

#创建bridge
nmcli con add con-name vm-bridge ifname vm-bridge type bridge ipv4.method disable ipv6.method ignore
nmcli con add con-name ens33-slave ifname ens33 type ethernet slave-type bridge master vm-bridge
nmcli con up

[root;pcs1 ~]# bridge link
4: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master vm-bridge state
learning priority 32 cost 100

nmcli con add con-name vm-bridge ifname vm-bridge type bridge ipv4.method disable ipv6.method ignore

nmcli con add con-name ens38-slave ifname ens38 type ethernet slave-type bridge master vm-bridge

nmcli con up ens38-slave

#master虚拟机分配1C2G;worker虚拟机分配1C1G
for i in {1..3}
do
virt-install --name master${i} --memory 2048 --vcpus 1 --import --os-variant centos-stream8
--disk path=/mnt/master/master${i}.qcow2,bus=virtio
--network bridge=vm-bridge,model=virtio --noautoconsole
done
for i in {1..3}
do
virt-install --name worker${i} --memory 1024 --vcpus 1 --import --os-variant centos-stream8
--disk path=/mnt/worker/worker${i}.qcow2,bus=virtio
--network bridge=vm-bridge,model=virtio --noautoconsole
done

#由于部署完vm之后;会产生xml的qemu虚拟机描述文件;我们需要保存这个xml文件
[root;pcs1 ~]# ls /etc/libvirt/qemu/
master1.xml master2.xml master3.xml networks
worker1.xml worker2.xml worker3.xml

#如果你不保存这些xml文件;那么当你destroy之后;再undefine;xml文件就会被删除
for i in {1..3}
do
cp /etc/libvirt/qemu/master${i}.xml /mnt/master/
cp /etc/libvirt/qemu/worker${i}.xml /mnt/worker/
done

for i in ;virsh list | grep -i running | awk ;{print $2};;
do
virsh destroy $i
virsh undefine $i
done

[root;pcs1 ~]# ls /etc/libvirt/qemu/
networks

4、Pacemaker接管KVM虚拟机
pcs resource describe ocf:heartbeat:VirtualDomain

pcs cluster cib drbd_cfg

pcs -f drbd_cfg resource create k8s-master1 ocf:heartbeat:VirtualDomain hypervisor=;qemu:///system; config=;/mnt/master/master1.xml; op start timeout=;240s; on-fail=restart op stop timeout=;120s; op monitor timeout=;30s; interval=;30;

pcs -f drbd_cfg constraint colocation add k8s-master1 with drbdfsmaster

pcs -f drbd_cfg constraint order drbdfsmaster then start k8s-master1

pcs -f drbd_cfg resource create k8s-master2 ocf:heartbeat:VirtualDomain hypervisor=;qemu:///system; config=;/mnt/master/master2.xml; op start timeout=;240s; on-fail=restart op stop timeout=;120s; op monitor timeout=;30s; interval=;30;

pcs -f drbd_cfg constraint colocation add k8s-master2 with drbdfsmaster

pcs -f drbd_cfg constraint order drbdfsmaster then start k8s-master2

pcs -f drbd_cfg resource create k8s-master3 ocf:heartbeat:VirtualDomain hypervisor=;qemu:///system; config=;/mnt/master/master3.xml; op start timeout=;240s; on-fail=restart op stop timeout=;120s; op monitor timeout=;30s; interval=;30;

pcs -f drbd_cfg constraint colocation add k8s-master3 with drbdfsmaster

pcs -f drbd_cfg constraint order drbdfsmaster then start k8s-master3

pcs -f drbd_cfg resource create k8s-worker1 ocf:heartbeat:VirtualDomain hypervisor=;qemu:///system; config=;/mnt/worker/worker1.xml; op start timeout=;240s; on-fail=restart op stop timeout=;120s; op monitor timeout=;30s; interval=;30;

pcs -f drbd_cfg constraint colocation add k8s-worker1 with drbdfsworker

pcs -f drbd_cfg constraint order drbdfsworker then start k8s-worker1

pcs -f drbd_cfg resource create k8s-worker2 ocf:heartbeat:VirtualDomain hypervisor=;qemu:///system; config=;/mnt/worker/worker2.xml; op start timeout=;240s; on-fail=restart op stop timeout=;120s; op monitor timeout=;30s; interval=;30;

pcs -f drbd_cfg constraint colocation add k8s-worker2 with drbdfsworker

pcs -f drbd_cfg constraint order drbdfsworker then start k8s-worker2

pcs -f drbd_cfg resource create k8s-worker3 ocf:heartbeat:VirtualDomain hypervisor=;qemu:///system; config=;/mnt/worker/worker3.xml; op start timeout=;240s; on-fail=restart op stop timeout=;120s; op monitor timeout=;30s; interval=;30;

pcs -f drbd_cfg constraint colocation add k8s-worker3 with drbdfsworker

pcs -f drbd_cfg constraint order drbdfsworker then start k8s-worker3

pcs cluster cib-push drbd_cfg --config

pcs resource delete k8s-master1 --force

pcs resource delete k8s-master2 --force

pcs resource delete k8s-master3 --force

pcs resource delete k8s-worker1 --force

pcs resource delete k8s-worker2 --force

pcs resource delete k8s-worker3 --force

[root;pcs1 ~]# pcs resource debug-start k8s-master1

八、Pecemaker;Corosync;Haproxy实现Openstack HA
1、高可用集群环境准备
pecemaker&&corosync&&haproxy
mariadb&&rabbitmq
openstack controller&&compute&&cinder
机器准备工作;
物理主机集群a (172.27.10.11, 172.27.10.12, 172.27.10.13)
pecemaker&&corosync&&haproxy HA cluster
mariadb&&rabbitmq HA cluster
物理主机集群b (172.27.10.21, 172.27.10.22, 172.27.10.23)
openstack controller HA cluster
物理主机集群c (172.27.10.31, 172.27.10.32)
openstack compute HA cluster
物理主机集群d (172.27.10.41, 172.27.10.42)
openstack cinder HA cluster
Vip (172.27.10.51)
2、非openstack集群搭建
环境准备 (172.27.10.11, 172.27.10.12, 172.27.10.13)
system: centos7
1. 关闭 selinux 防火墙
systemctl stop firewalld.service
systemctl disable firewalld.service
firewall-cmd --state
sed -i ;/^SELINUX=.*/c SELINUX=disabled; /etc/selinux/config
sed -i ;s/^SELINUXTYPE=.*/SELINUXTYPE=disabled/g; /etc/selinux/config
grep --color=auto ;^SELINUX; /etc/selinux/config
setenforce 0

2. 分别修改主机名称
# hostnamectl set-hostname ha1

3. 时间同步
/usr/sbin/ntpdate ntp6.aliyun.com
echo ;*/3 * * * * /usr/sbin/ntpdate ntp6.aliyun.com  &> /dev/null; > /tmp/crontab
crontab /tmp/crontab

# ssh免密验证
#############################
#配置/etc/hosts;
172.27.10.11 ha1
172.27.10.12 ha2
172.27.10.13 ha3

#ha1设置
ssh-keygen -t rsa -P ;; -f ~/.ssh/id_dsa
ssh-copy-id -i ~/.ssh/id_dsa.pub root;ha2
ssh-copy-id -i ~/.ssh/id_dsa.pub root;ha3

4. 升级系统至最新版本
yum update -y

5. Corosync&&Pecemaker集群搭建
#下载pacemaker组件的repo文件;
cd /etc/yum.repos.d
wget http://download.opensuse.org/repositories/network:/ha-clustering:/Stable/CentOS_CentOS-7/network:ha-clustering:Stable.repo
#安装相关软件;
yum install -y wget
yum install -y yum-plugin-priorities
yum install -y openstack-selinux
yum install -y ntp
yum install -y pacemaker corosync resource-agents
yum install -y crmsh cluster-glue

配置corosync。
corosync.conf请备份再编辑;
# vi /etc/corosync/corosync.conf

totem {
        version: 2

        token: 10000
        token_retransmits_before_loss_const: 10
        secauth: off
        rrp_mode: active

        interface {
                ringnumber: 0
                bindnetaddr: 172.27.10.0
                broadcast: yes
                mcastport: 5405
                ttl: 1
        }
        transport: udpu
}

nodelist {
        node {
                ring0_addr: 172.27.10.11
        }
        node {
                ring0_addr: 172.27.10.12
        }
        node {
                ring0_addr: 172.27.10.13
        }
}

logging {
        fileline: off
        to_stderr: no
        to_logfile: yes
        logfile: /var/log/cluster/corosync.log
        to_syslog: yes
        debug: off
        timestamp: on
        logger_subsys {
                subsys: QUORUM
                debug: off
        }
}

quorum {
        provider: corosync_votequorum
        two_node: 1
        wait_for_all: 1
        last_man_standing: 1
        last_man_standing_window: 10000
}

每个节点都要编辑corosync.conf;在每个节点上都启动corosync服务;
systemctl enable corosync.service
systemctl start corosync.service

在任一节点查看corosync服务的状态;
corosync-cmapctl runtime.totem.pg.mrp.srp.members
runtime.totem.pg.mrp.srp.members.167772172.config_version (u64) = 0
runtime.totem.pg.mrp.srp.members.167772172.ip (str) = r(0) ip(172.27.10.11)
runtime.totem.pg.mrp.srp.members.167772172.join_count (u32) = 1
runtime.totem.pg.mrp.srp.members.167772172.status (str) = joined
runtime.totem.pg.mrp.srp.members.167772173.config_version (u64) = 0
runtime.totem.pg.mrp.srp.members.167772173.ip (str) = r(0) ip(172.27.10.12)
runtime.totem.pg.mrp.srp.members.167772173.join_count (u32) = 2
runtime.totem.pg.mrp.srp.members.167772173.status (str) = joined
runtime.totem.pg.mrp.srp.members.167772174.config_version (u64) = 0
runtime.totem.pg.mrp.srp.members.167772174.ip (str) = r(0) ip(172.27.10.13)
runtime.totem.pg.mrp.srp.members.167772174.join_count (u32) = 2
runtime.totem.pg.mrp.srp.members.167772173.status (str) = joined
#167772172是member id;其IP是172.27.10.11;状态是joined
#167772173是member id;其IP是172.27.10.12;状态是joined
#167772173是member id;其IP是172.27.10.13;状态是joined
#corosync服务状态正确

在两个节点上都启动pacemaker服务;
systemctl enable pacemaker.service
systemctl start pacemaker.service

查看服务启动状态;
crm_mon
Stack: corosync
Current DC: ha1 (167772173) - partition with quorum
Version: 1.1.12-a14efad
3 Nodes configured
0 Resources configured

Online: [ ha1 ha2 ha3 ]
#pacemaker服务状态很好。如果状态不好;会出现“脑裂”现象。
#即在ha1 ha2 ha3分别运行crm_mon;看到的Current DC不是统一的;而是各自本身。
#出现此问题其中一种可能的原因是开启了防火墙。
#配置corosync和pecemaker
#在任一节点执行“crm configure”命令;
crm configure property no-quorum-policy=;ignore; pe-warn-series-max=;1000; pe-input-series-max=;1000; pe-error-series-max=;1000; cluster-recheck-interval=;5min;
#默认的表决规则建议集群中的节点个数为奇数且不低于3。当集群只有2个节点;其中1个节点崩坏;由于不符合默认的表决规则;集群资源不发生转移;集群整体仍不可用。
#no-quorum-policy=;ignore;可以解决此双节点的问题;但不要用于生产环境。换句话说;生产环境还是至少要3节点。
#pe-warn-series-max、pe-input-series-max、pe-error-series-max代表日志深度。
#cluster-recheck-interval是节点重新检查的频率。

#禁用stonith;
crm configure property stonith-enabled=false
#stonith是一种能够接受指令断电的物理设备;测试环境无此设备;如果不关闭该选项;执行crm命令总是含其报错信息。
#查看配置;
crm configure show
# corosync和pacemaker状态无误;就能创建VIP资源了。我的VIP是“172.27.10.51”;
crm configure primitive myvip ocf:heartbeat:IPaddr2 params ip=;172.27.10.51; cidr_netmask=;24; op monitor interval=;30s;

6. Haproxy集群搭建
# yum install -y haproxy

haproxy.cfg请备份再编辑;
# vi /etc/haproxy/haproxy.cfg

global
    chroot /var/lib/haproxy
    daemon
    group haproxy
    maxconn 4000
    pidfile /var/run/haproxy.pid
    user haproxy

defaults
    log global
    maxconn 4000
    option redispatch
    retries 3
    timeout http-request 10s
    timeout queue 1m
    timeout connect 10s
    timeout client 1m
    timeout server 1m
    timeout check 10s

listen haproxy_status
        bind 172.27.105.191:6677
        mode http
        log global
        stats enable
        stats refresh 5s
        stats realm Haproxy Statistics
        stats uri /haproxy_stats
        stats hide-version
        stats auth admin:admin

每个节点都要编辑haproxy.cfg。
由于需要将集群资源绑定到VIP;需要修改各节点的内核参数;
echo ;net.ipv4.ip_nonlocal_bind = 1;>>/etc/sysctl.conf

sysctl -p

如果在启动haproxy时出现了无法绑定vip端口的情况请执行;
setsebool -P haproxy_connect_any=1

在集群中增加haproxy服务资源;
# crm configure primitive haproxy lsb:haproxy op monitor interval=;30s;
;lsb:haproxy;表示haproxy服务。

ERROR:lsb:haproxy:got no meta-data, does this RA exist?
ERROR:lsb:haproxy:got no meta-data, does this RA exist?
ERROR:lsb:haproxy:no such resource agent
Do you still want to commit (y/n)? n

#似乎crm命令不识别“haproxy”服务。查看crm目前能识别哪些服务;
# crm ra list lsb
netconsole  network

#netconsole和network位于/etc/rc.d/init.d目录中;是centos7默认情况下仅有的服务脚本;推测在此目录创建haproxy的服务脚本即可;每个节点均要;;
# vi /etc/rc.d/init.d/haproxy

#内容如下;
#!/bin/bash

case ;$1; in
  start)
        systemctl start haproxy.service
        ;;
  stop)
        systemctl stop haproxy.service
        ;;
  status)
        systemctl status -l haproxy.service
        ;;
  restart)
        systemctl restart haproxy.service
        ;;
  *)
        echo ;$1 = start|stop|status|restart;
        ;;
esac


#记得授予可执行权限;
chmod 755 /etc/rc.d/init.d/haproxy


#再次确认crm命令是否能识别“haproxy”;
# crm ra list lsb
haproxy     netconsole  network
#已经有了haproxy;“service haproxy status”命令也能用了;请再次尝试创建haproxy服务资源。


#查看资源状态;
# crm_mon
Stack: corosync
Current DC: ha1 (167772172) - partition with quorum
Version: 1.1.12-a14efad
3 Nodes configured
2 Resources configured


Online: [ ha1 ha2 ha3 ]

myvip   (ocf::heartbeat:IPaddr2):       Started ha1
haproxy (lsb:haproxy):  Started ha2

#目前haproxy资源在节点ha2上;在ha2上查看haproxy服务状态;已是active;
# systemctl status -l haproxy.service


#定义HAProxy和VIP必须在同一节点上运行;
# crm configure colocation haproxy-with-vip INFINITY: haproxy myvip

#定义先接管VIP之后才启动HAProxy;
# crm configure order haproxy-after-vip mandatory: myvip haproxy
#再次查看配置发现vip资源和haproxy已经在一个节点
Stack: corosync
Current DC: controller2 (167772172) - partition with quorum
Version: 1.1.12-a14efad
3 Nodes configured
2 Resources configured


Online: [ ha1 ha2 ha3 ]

myvip   (ocf::heartbeat:IPaddr2):       Started ha1
haproxy (lsb:haproxy):  Started ha1

#测试haproxy和vip的宕机节点漂移
crm node standby    #standby node
crm node online     #online node

7. Mariadb galera集群搭建

Index of /10.0-galera/centos7-amd64/rpms/ 我并没有给centos配置yum源而是直接去mariadb源上下载了需要的rpm包,我选择的版本是10.0.0
主要需要的包为:
MariaDB-10.0.33-centos7-x86_64-client.rpm
MariaDB-10.0.33-centos7-x86_64-common.rpm
MariaDB-10.0.33-centos7-x86_64-devel.rpm
galera-25.3.20-1.rhel7.el7.centos.x86_64.rpm
MariaDB-Galera-10.0.32-centos7-x86_64-server.rpm
安装前请更新本地yum,因为安装common时centos自带的mariadb-libs版本比较低;
yum install -y xinetd rsync expect
yum update -y || yum remove mariadb-libs
yum install -y MariaDB-10.0.33-centos7-x86_64-common.rpm
yum install -y MariaDB-10.0.33-centos7-x86_64-client.rpm
yum install -y MariaDB-10.0.33-centos7-x86_64-devel.rpm
yum install -y galera-25.3.20-1.rhel7.el7.centos.x86_64.rpm
yum install -y MariaDB-Galera-10.0.32-centos7-x86_64-server.rpm
#启动mariadb 在3个节点初始化
service mysql start
mysql_secure_installation
[[ -f /usr/bin/expect ]] || { yum install expect -y; }
/usr/bin/expect << EOF
set timeout 30
spawn mysql_secure_installation
expect {
    ;enter for none; { send ;
;; exp_continue}
    ;Y/n; { send ;Y
; ; exp_continue}
    ;password:; { send ;root
;; exp_continue}
    ;new password:; { send ;root
;; exp_continue}
    ;Y/n; { send ;Y
; ; exp_continue}
    eof { exit }
}
EOF
#给mysql建立haproxy用户 密码是空
#编辑mariadb配置文件,支持galera, 在server.cnf [mysqld]追加配置
vi /etc/my.cnf.d/server.cnf
################################
......
[mysqld]
......
binlog_format=ROW
default-storage-engine=innodb
innodb_autoinc_lock_mode=2
innodb_locks_unsafe_for_binlog=1
query_cache_size=0
query_cache_type=0
bind-address=ha1
wsrep_provider=/usr/lib64/galera/libgalera_smm.so
wsrep_cluster_name=;my_wsrep_cluster;
wsrep_cluster_address=;gcomm://ha1,ha2,ha3;
wsrep_slave_threads=1
wsrep_certify_nonPK=1
wsrep_max_ws_rows=131072
wsrep_max_ws_size=1073741824
wsrep_debug=0
wsrep_convert_LOCK_to_trx=0
wsrep_retry_autocommit=1
wsrep_auto_increment_control=1
wsrep_drupal_282555_workaround=0
wsrep_causal_reads=0
wsrep_notify_cmd=
wsrep_sst_method=rsync
wsrep_sst_auth=root:root
......
################################
#在其中一个节点以--wsrep-new-cluster方式启动mariadb
mysqld_safe --defaults-file=/etc/my.cnf.d/server.cnf --user=mysql  --wsrep-new-cluster &
#在其他节点启动mariadb
mysqld_safe --defaults-file=/etc/my.cnf.d/server.cnf --user=mysql  &

#在任意节点查看集群状态wsrep_cluster_size = 3 表示正常
MariaDB [(none)]> SHOW STATUS LIKE ;wsrep_cluster_size;;
;--------------------;-------;
| Variable_name      | Value |
;--------------------;-------;
| wsrep_cluster_size | 3     |
;--------------------;-------;

#新建openstack数据库和用户
create database keystone;
grant all privileges on keystone.* to ;keystone;;;localhost; identified by ;keystone;;
grant all privileges on keystone.* to ;keystone;;% identified by ;keystone;;

create database glance;
grant all privileges on glance.* to ;glance;;;localhost; identified by ;glance;;
grant all privileges on glance.* to ;glance;;% identified by ;glance;;

create database nova;
grant all privileges on nova.* to ;nova;;;localhost; identified by ;nova;;
grant all privileges on nova.* to ;nova;;% identified by ;nova;;

create database nova_api;
grant all privileges on nova_api.* to ;nova;;;localhost; identified by ;nova;;
grant all privileges on nova_api.* to ;nova;;% identified by ;nova;;

create database nova_cell0;
grant all privileges on nova_cell0.* to ;nova;;;localhost; identified by ;nova;;
grant all privileges on nova_cell0.* to ;nova;;% identified by ;nova;;

create database neutron;
grant all privileges on neutron.* to ;neutron;;;localhost; identified by ;neutron;;
grant all privileges on neutron.* to ;neutron;;% identified by ;neutron;;

create database cinder;
grant all privileges on cinder.* to ;cinder;;;localhost; identified by ;cinder;;
grant all privileges on cinder.* to ;cinder;;% identified by ;cinder;;

flush privileges;

#配置haproxy
#修改每个节点的haproxy的配置文件 支持mysql
echo ;
# mariadb galera
listen mariadb_cluster
  mode tcp
  bind myvip:3306
  balance leastconn
  option mysql-check user haproxy
  server ha1 ha1:3306 weight 1 check inter 2000 rise 2 fall 5
  server ha2 ha2:3306 weight 1 check inter 2000 rise 2 fall 5
  server ha3 ha3:3306 weight 1 check inter 2000 rise 2 fall 5
;>>/etc/haproxy/haproxy.cfg

#如果出现;脑裂;问题:
ERROR 1047 (08S01): WSREP has not yetprepared node for application use
# 执行:
set global wsrep_provider_options=;pc.bootstrap=true;;

8. Rabbit MQ集群搭建
#RabbitMQ Cluster群集安装配置
yum install rabbitmq-server erlang socat -y
#systemctl enable rabbitmq-server.service
# echo ;
# NODE_PORT=5672
# NODE_IP_ADDRESS=0.0.0.0;>/etc/rabbitmq/rabbitmq-env.conf #指定端口
systemctl start rabbitmq-server.service
rabbitmq-plugins enable rabbitmq_management  #启动web插件端口15672
netstat -antp|egrep ;567;

#ha1节点
#拷贝到其它节点;统一认证的Erlang Cookie
scp /var/lib/rabbitmq/.erlang.cookie ha2:/var/lib/rabbitmq/
scp /var/lib/rabbitmq/.erlang.cookie ha3:/var/lib/rabbitmq/
#rabbitmqctl status
#使用Disk模式
systemctl stop rabbitmq-server.service
pkill beam.smp
rabbitmqctl stop
rabbitmq-server -detached
rabbitmqctl cluster_status #查看状态

#ha2、ha3执行加入节点ha1
systemctl stop rabbitmq-server.service
pkill beam.smp
rabbitmq-server -detached
rabbitmqctl stop_app
rabbitmqctl join_cluster rabbit;ha1
rabbitmqctl start_app
rabbitmqctl cluster_status

#任意一个节点上执行
rabbitmqctl set_policy ha-all ;^; ;{;ha-mode;:;all;};  #设置镜像队列
rabbitmqctl set_cluster_name RabbitMQ-Cluster #更改群集名称
[root;ha1~]# rabbitmqctl cluster_status #查看群集状态
Cluster status of node rabbit;ha1...
[{nodes,[{disc,[rabbit;ha1,rabbit;ha2,rabbit;ha3]}]},
 {running_nodes,[rabbit;ha3,rabbit;ha2,rabbit;ha1]},
; {cluster_name,<<;RabbitMQ-Cluster;>>},;
 {partitions,[]},
 {alarms,[{rabbit;ha3,[]},
          {rabbit;ha2,[]},
          {rabbit;ha1,[]}]}]


#重置: rabbitmqctl stop_app ; rabbitmqctl reset
#rabbitmq-plugins list  #查看支持的插件
#systemctl restart rabbitmq-server.service

#配置haproxy
#修改每个节点的haproxy的配置文件 支持rabbitmq
echo ;
#RabbitMQ
listen RabbitMQ-Server
  bind myvip:5673
  mode tcp
  balance roundrobin
  option tcpka
  timeout client  3h
  timeout server  3h
  option          clitcpka
  server controller2 ha1:5672 check inter 5s rise 2 fall 3
  server controller3 ha2:5672 check inter 5s rise 2 fall 3
  server controller4 ha3:5672 check inter 5s rise 2 fall 3

listen RabbitMQ-Web
  bind myvip:15673
  mode tcp
  balance roundrobin
  option tcpka
  server controller2 ha1:15672 check inter 5s rise 2 fall 3
  server controller3 ha2:15672 check inter 5s rise 2 fall 3
  server controller4 ha3:15672 check inter 5s rise 2 fall 3
;>>/etc/haproxy/haproxy.cfg

9. Keystone Controller Cluser集群
#SQL上创建数据库并授权
################################################
##以下在所有controller节点执行(172.27.10.21,172.27.10.22,172.27.10.23)
# ssh免密验证
#############################
#配置/etc/hosts;
172.27.10.21 controller1
172.27.10.22 controller2
172.27.10.23 controller3

#ha1设置
ssh-keygen -t rsa -P ;; -f ~/.ssh/id_dsa
ssh-copy-id -i ~/.ssh/id_dsa.pub root;controller2
ssh-copy-id -i ~/.ssh/id_dsa.pub root;controller3

#Keystone安装
yum install -y openstack-keystone httpd mod_wsgi memcached python-memcached
yum install apr apr-util -y

#memcached启动
cp /etc/sysconfig/memcached{,.bak}
sed -i ;s/127.0.0.1/0.0.0.0/; /etc/sysconfig/memcached
systemctl enable memcached.service
systemctl start memcached.service
netstat -antp|grep 11211

#apache配置
#cp /etc/httpd/conf/httpd.conf{,.bak}
#echo ;ServerName controller1;>>/etc/httpd/conf/httpd.conf
ln -s /usr/share/keystone/wsgi-keystone.conf /etc/httpd/conf.d/

#群集设置;修改默认端口5000,35357(默认端口给群集vip使用)
cp /usr/share/keystone/wsgi-keystone.conf{,.bak}
sed -i ;s/5000/4999/; /usr/share/keystone/wsgi-keystone.conf
sed -i ;s/35357/35356/; /usr/share/keystone/wsgi-keystone.conf

#Apache HTTP 启动并设置开机自启动
systemctl enable httpd.service
systemctl restart httpd.service
netstat -antp|egrep ;httpd;
# systemctl disable

#haproxy高可用
echo ;
#keystone
listen keystone_admin_cluster
bind myvip:35357
#balance  source
option  tcpka
option  httpchk
option  tcplog
server controller1 controller1:35356 check inter 2000 rise 2 fall 5
server controller2 controller2:35356 check inter 2000 rise 2 fall 5
server controller3 controller3:35356 check inter 2000 rise 2 fall 5

listen keystone_public_cluster
bind myvip:5000
#balance  source
option  tcpka
option  httpchk
option  tcplog
server controller1 controller1:4999 check inter 2000 rise 2 fall 5
server controller2 controller2:4999 check inter 2000 rise 2 fall 5
server controller3 controller3:4999 check inter 2000 rise 2 fall 5
;>>/etc/haproxy/haproxy.cfg
systemctl restart haproxy.service
netstat -antp|egrep ;haproxy|httpd;
#登录haproxy web查看Keystone状态全部为down;下面配置后才UP


################################################
##以下在controller1节点执行

#Keystone 配置
cp /etc/keystone/keystone.conf{,.bak}  #备份默认配置
Keys=$(openssl rand -hex 10)  #生成随机密码
echo $Keys
echo ;kestone  $Keys;>~/openstack.log
echo ;
[DEFAULT]
admin_token = $Keys
verbose = true
[database]
connection = mysql;pymysql://keystone:keystone;myvip/keystone
[token]
provider = fernet
driver = memcache
[cache]
enabled = true
backend = oslo_cache.memcache_pool
memcached_servers = controller1:11211,controller2:11211,controller3:11211
;>/etc/keystone/keystone.conf

#初始化keystone数据库
su -s /bin/sh -c ;keystone-manage db_sync; keystone
#检查表是否创建成功
mysql -h myvip-ukeystone -pkeystone -e ;use keystone;show tables;;

#初始化Fernet密匙
keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone
#同步配置到其它节点(用scp会改变属性)
rsync -avzP -e ;ssh -p 22; /etc/keystone/* controller2:/etc/keystone/
rsync -avzP -e ;ssh -p 22; /etc/keystone/* controller3:/etc/keystone/

#重启http
systemctl restart httpd.service
ssh controller2 ;systemctl restart httpd.service;
ssh controller3 ;systemctl restart httpd.service;
# #检测服务否正常
curl http://controller3:35356/v3 #查看单个节点
curl http://myvip:35357/v3 #查看群集代理

#设置admin用户;管理用户;和密码,服务实体和API端点
keystone-manage bootstrap --bootstrap-password admin
--bootstrap-admin-url http://myvip:35357/v3/
--bootstrap-internal-url http://myvip:5000/v3/
--bootstrap-public-url http://myvip:5000/v3/
--bootstrap-region-id RegionOne

#配置haproxy
#修改每个节点的haproxy的配置文件 支持keystone
echo ;
#keystone
listen keystone_admin_cluster
   bind myvip:35357
   #balance  source
   option  tcpka
   option  httpchk
   option  tcplog
   server controller1 controller1:35356 check inter 2000 rise 2 fall 5
   server controller2 controller2:35356 check inter 2000 rise 2 fall 5
   server controller3 controller3:35356 check inter 2000 rise 2 fall 5

listen keystone_public_cluster
   bind myvip:5000
   #balance  source
   option  tcpka
   option  httpchk
   option  tcplog
   server controller1 controller1:4999 check inter 2000 rise 2 fall 5
   server controller2 controller2:4999 check inter 2000 rise 2 fall 5
   server controller3 controller3:4999 check inter 2000 rise 2 fall 5
;>>/etc/haproxy/haproxy.cfg

#创建 OpenStack 客户端环境脚本
#admin环境脚本
echo ;
export OS_PROJECT_DOMAIN_NAME=default
export OS_USER_DOMAIN_NAME=default
export OS_PROJECT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=admin
export OS_AUTH_URL=http://myvip:35357/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
;>./admin-openstack.sh
#测试脚本是否生效
source ./admin-openstack.sh
openstack token issue

#创建service项目,创建glance,nova,neutron用户;并授权
openstack project create --domain default --description ;Service Project; service
openstack user create --domain default --password=glance glance
openstack role add --project service --user glance admin
openstack user create --domain default --password=nova nova
openstack role add --project service --user nova admin
openstack user create --domain default --password=neutron neutron
openstack role add --project service --user neutron admin

#创建demo项目(普通用户密码及角色)
openstack project create --domain default --description ;Demo Project; demo
openstack user create --domain default --password=demo demo
openstack role create user
openstack role add --project demo --user demo user
#demo环境脚本
echo ;
export OS_PROJECT_DOMAIN_NAME=default
export OS_USER_DOMAIN_NAME=default
export OS_PROJECT_NAME=demo
export OS_USERNAME=demo
export OS_PASSWORD=demo
export OS_AUTH_URL=http://myvip:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
;>./demo-openstack.sh
#测试脚本是否生效
source ./demo-openstack.sh
openstack token issue

10. Glance Controller Cluser集群搭建
#Glance 镜像服务群集

###############以下在controller1节点执行

#Glance群集需要使用共享存储;用来存储镜像文件;这里以NFS为例
#先在controller1节点配置;然后拷贝配置到其它节点controller2,controller3
#创建Glance数据库、用户、认证;前面已设置

# keystone上服务注册 ,创建glance服务实体,API端点;公有、私有、admin;
source ./admin-openstack.sh || { echo ;加载前面设置的admin-openstack.sh环境变量脚本;;exit; }
openstack service create --name glance --description ;OpenStack Image; image
openstack endpoint create --region RegionOne image public http://myvip:9292
openstack endpoint create --region RegionOne image internal http://myvip:9292
openstack endpoint create --region RegionOne image admin http://myvip:9292

# Glance 安装
yum install -y openstack-glance python-glance
#配置
cp /etc/glance/glance-api.conf{,.bak}
cp /etc/glance/glance-registry.conf{,.bak}
# images默认/var/lib/glance/images/
Imgdir=/date/glance
mkdir -p $Imgdir
chown glance:nobody $Imgdir
echo ;镜像目录; $Imgdir;
echo ;#
[DEFAULT]
debug = False
verbose = True
bind_host = controller1
bind_port = 9292
auth_region = RegionOne
registry_client_protocol = http
[database]
connection = mysql;pymysql://glance:glance;myvip/glance
[keystone_authtoken]
auth_uri = http://myvip:5000/v3
auth_url = http://myvip:35357/v3
memcached_servers = controller1:11211,controller2:11211,controller3:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = glance
password = glance
[paste_deploy]
flavor = keystone
[glance_store]
stores = file,http
default_store = file
filesystem_store_datadir = /date/glance
[oslo_messaging_rabbit]
rabbit_userid =openstack
rabbit_password = openstack
rabbit_durable_queues=true
rabbit_ha_queues = True
rabbit_max_retries=0
rabbit_port = 5673
rabbit_hosts = myvip:5673
#;>/etc/glance/glance-api.conf
#
echo ;#
[DEFAULT]
debug = False
verbose = True
bind_host = controller1
bind_port = 9191
workers = 2
[database]
connection = mysql;pymysql://glance:glance;myvip/glance
[keystone_authtoken]
auth_uri = http://myvip:5000/v3
auth_url = http://myvip:35357/v3
memcached_servers = controller1:11211,controller2:11211,controller3:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = glance
password = glance
[paste_deploy]
flavor = keystone
[oslo_messaging_rabbit]
rabbit_userid =openstack
rabbit_password = openstack
rabbit_durable_queues=true
rabbit_ha_queues = True
rabbit_max_retries=0
rabbit_port = 5673
rabbit_hosts = myvip:5673
#;>/etc/glance/glance-registry.conf

#同步数据库,检查数据库
su -s /bin/sh -c ;glance-manage db_sync; glance
mysql -h controller -u glance -pglance -e ;use glance;show tables;;

#启动服务并设置开机自启动
systemctl enable openstack-glance-api openstack-glance-registry
systemctl restart openstack-glance-api openstack-glance-registry
sleep 3
netstat -antp|grep python2 #检测服务端口
#netstat -antp|egrep ;9292|9191; #检测服务端口

#配置haproxy
#修改每个节点的haproxy的配置文件 支持glance
echo ;
#glance_api_cluster
listen glance_api_cluster
   bind 172.27.105.191:9292
   #balance  source
   option  tcpka
   option  httpchk
   option  tcplog
   server controller1 controller1:9292 check inter 2000 rise 2 fall 5
   server controller2 controller2:9292 check inter 2000 rise 2 fall 5
   server controller3 controller3:9292 check inter 2000 rise 2 fall 5
;>>/etc/haproxy/haproxy.cfg

#镜像测试,下载有时很慢
wget http://download.cirros-cloud.net/0.3.5/cirros-0.3.5-x86_64-disk.img #下载测试镜像源
#使用qcow2磁盘格式;bare容器格式,上传镜像到镜像服务并设置公共可见
source ./admin-openstack.sh
openstack image create ;cirros;
  --file cirros-0.3.5-x86_64-disk.img
  --disk-format qcow2 --container-format bare
  --public

#检查是否上传成功
openstack image list
ls $Imgdir
#删除镜像 glance image-delete 镜像id


############### 配置其它节点controller2、controller3###############
#以下操作同样是在controller1执行

############
#把controller1节点的glance镜像通过NFS共享给其它节点(仅测试环境使用)
#NFS 服务端 (centos7)
yum install nfs-utils rpcbind -y
echo ;/date/glance 172.27.10.0/24(rw,no_root_squash,sync);>>/etc/exports
exportfs -r
systemctl enable rpcbind nfs-server
systemctl start rpcbind nfs-server
showmount -e localhost

#controller2、controller3 作为 NFS客户端
ssh controller2 ;systemctl enable rpcbind;systemctl start rpcbind;
ssh controller2 ;mkdir -p /date/glance;mount -t nfs controller1:/date/glance /date/glance;
ssh controller2 ;echo ;/usr/bin/mount -t nfs controller1:/date/glance /date/glance;>>/etc/rc.local;df -h;

ssh controller3 ;systemctl enable rpcbind;systemctl start rpcbind;
ssh controller3 ;mkdir -p /date/glance;mount -t nfs controller1:/date/glance /date/glance;
ssh controller3 ;echo ;/usr/bin/mount -t nfs controller1:/date/glance /date/glance;>>/etc/rc.local;df -h;
############

# Glance 安装
ssh controller2 ;yum install -y openstack-glance python-glance;
ssh controller3 ;yum install -y openstack-glance python-glance;
#同步controller1配置到其它节点(用scp会改变属性)
rsync -avzP -e ;ssh -p 22; /etc/glance/* controller2:/etc/glance/
rsync -avzP -e ;ssh -p 22; /etc/glance/* controller3:/etc/glance/
rsync -avzP -e ;ssh -p 22; /etc/haproxy/haproxy.cfg controller2:/etc/haproxy/
rsync -avzP -e ;ssh -p 22; /etc/haproxy/haproxy.cfg controller3:/etc/haproxy/

#更改配置
ssh controller2 ;sed -i ;1,10s/controller1/controller2/; /etc/glance/glance-api.conf /etc/glance/glance-registry.conf;
ssh controller3 ;sed -i ;1,10s/controller1/controller3/; /etc/glance/glance-api.conf /etc/glance/glance-registry.conf;

#启动服
ssh controller2 ;systemctl enable openstack-glance-api openstack-glance-registry;
ssh controller2 ;systemctl restart openstack-glance-api openstack-glance-registry;
ssh controller3 ;systemctl enable openstack-glance-api openstack-glance-registry;
ssh controller3 ;systemctl restart openstack-glance-api openstack-glance-registry;

11. Nova Controller Cluser集群搭建
#Nova控制节点集群
#########以下在controller1执行
#创建Nova数据库、用户、认证;前面已设置
source ./admin-openstack.sh || { echo ;加载前面设置的admin-openstack.sh环境变量脚本;;exit; }

# keystone上服务注册 ,创建nova用户、服务、API
# nova用户前面已建
openstack service create --name nova --description ;OpenStack Compute; compute
openstack endpoint create --region RegionOne compute public http://myvip:8774/v2.1
openstack endpoint create --region RegionOne compute internal http://myvip:8774/v2.1
openstack endpoint create --region RegionOne compute admin http://myvip:8774/v2.1
#创建placement用户、服务、API
openstack user create --domain default --password=placement placement
openstack role add --project service --user placement admin
openstack service create --name placement --description ;Placement API; placement
openstack endpoint create --region RegionOne placement public http://myvip:8778
openstack endpoint create --region RegionOne placement internal http://myvip:8778
openstack endpoint create --region RegionOne placement admin http://myvip:8778

## 安装nova控制节点
yum install -y openstack-nova-api openstack-nova-conductor
  openstack-nova-console openstack-nova-novncproxy
  openstack-nova-scheduler openstack-nova-placement-api
#
cp /etc/nova/nova.conf{,.bak}
# #nova控制节点配置
echo ;#
[DEFAULT]
my_ip = controller1
use_neutron = True
osapi_compute_listen = controller1
osapi_compute_listen_port = 8774
metadata_listen = controller1
metadata_listen_port=8775
firewall_driver = nova.virt.firewall.NoopFirewallDriver
enabled_apis = osapi_compute,metadata
transport_url = rabbit://openstack:openstack;myvip:5673

[api_database]
connection = mysql;pymysql://nova:nova;myvip/nova_api
[database]
connection = mysql;pymysql://nova:nova;myvip/nova

[api]
auth_strategy = keystone

[keystone_authtoken]
auth_uri = http://myvip:5000
auth_url = http://myvip:35357
memcached_servers = controller1:11211,controller2:11211,controller2:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = nova
password = nova

[vnc]
enabled = true
vncserver_listen = $my_ip
vncserver_proxyclient_address = $my_ip
novncproxy_host=$my_ip
novncproxy_port=6080

[glance]
api_servers = http://myvip:9292
[oslo_concurrency]
lock_path = /var/lib/nova/tmp

[placement]
os_region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://myvip:35357/v3
username = placement
password = placement

[scheduler]
discover_hosts_in_cells_interval = 300

[cache]
enabled = true
backend = oslo_cache.memcache_pool
memcache_servers = controller1:11211,controller2:11211,controller3:11211
#;>/etc/nova/nova.conf

echo ;

#Placement API
<Directory /usr/bin>
   <IfVersion >= 2.4>
      Require all granted
   </IfVersion>
   <IfVersion < 2.4>
      Order allow,deny
      Allow from all
   </IfVersion>
</Directory>
;>>/etc/httpd/conf.d/00-nova-placement-api.conf
systemctl restart httpd

#同步数据库
su -s /bin/sh -c ;nova-manage api_db sync; nova
su -s /bin/sh -c ;nova-manage cell_v2 map_cell0; nova
su -s /bin/sh -c ;nova-manage cell_v2 create_cell --name=cell1 --verbose; nova
su -s /bin/sh -c ;nova-manage db sync; nova

#检测数据
nova-manage cell_v2 list_cells
mysql -h controller -u nova -pnova -e ;use nova_api;show tables;;
mysql -h controller -u nova -pnova -e ;use nova;show tables;;
mysql -h controller -u nova -pnova -e ;use nova_cell0;show tables;;

#更改默认端口8774;8778给集群VIP使用
#sed -i ;s/8774/9774/; /etc/nova/nova.conf
sed -i ;s/8778/9778/; /etc/httpd/conf.d/00-nova-placement-api.conf; systemctl restart httpd

#haproxy高可用配置
echo ;
##nova_compute
listen nova_compute_api_cluster
bind controller:8774
balance source
option tcpka
option httpchk
option tcplog
server controller1 controller1:9774 check inter 2000 rise 2 fall 5
server controller2 controller2:9774 check inter 2000 rise 2 fall 5
server controller3 controller3:9774 check inter 2000 rise 2 fall 5
#Nova-api-metadata
listen Nova-api-metadata_cluster
bind controller:8775
balance source
option tcpka
option httpchk
option tcplog
server controller1 controller1:9775 check inter 2000 rise 2 fall 5
server controller2 controller2:9775 check inter 2000 rise 2 fall 5
server controller3 controller3:9775 check inter 2000 rise 2 fall 5
#nova_placement
listen nova_placement_cluster
bind controller:8778
balance source
option tcpka
option tcplog
server controller1 controller1:9778 check inter 2000 rise 2 fall 5
server controller2 controller2:9778 check inter 2000 rise 2 fall 5
server controller3 controller3:9778 check inter 2000 rise 2 fall 5
;>>/etc/haproxy/haproxy.cfg

#开机自启动
 systemctl enable openstack-nova-api.service
  openstack-nova-consoleauth.service openstack-nova-scheduler.service
  openstack-nova-conductor.service openstack-nova-novncproxy.service
#启动服务
systemctl start openstack-nova-api.service
  openstack-nova-consoleauth.service openstack-nova-scheduler.service
  openstack-nova-conductor.service openstack-nova-novncproxy.service

#查看节点
#nova service-list
openstack catalog list
nova-status upgrade check
openstack compute service list


#########在controller23节点安装配置
# 安装nova控制节点
yum install -y openstack-nova-api openstack-nova-conductor
  openstack-nova-console openstack-nova-novncproxy
  openstack-nova-scheduler openstack-nova-placement-api
#同步controller1配置并修改
rsync -avzP -e ;ssh -p 22; controller1:/etc/nova/* /etc/nova/
rsync -avzP -e ;ssh -p 22; controller1:/etc/httpd/conf.d/00-nova-placement-api.conf /etc/httpd/conf.d/
rsync -avzP -e ;ssh -p 22; controller1:/etc/haproxy/* /etc/haproxy/
sed -i ;1,9s/controller1/controller2/; /etc/nova/nova.conf

#开机自启动,启动服务nova服务 ;同上
#重启服务
systemctl restart httpd haproxy

#########controller23节点安装配置
#同controller2一样;只是替换不同 sed -i ;s/controller1/controller3/; /etc/nova/nova.conf

12. Neutron Controller Cluser集群搭建
#Neutron控制节点集群
#本实例网络配置方式是;公共网络(flat)
#官方参考 https://docs.openstack.org/neutron/pike/install/controller-install-rdo.html
#创建Neutron数据库、用户认证;前面已设置
############以下全部在controller1执行
source ./admin-openstack.sh
# 创建Neutron服务实体,API端点
openstack service create --name neutron --description ;OpenStack Networking; network
openstack endpoint create --region RegionOne network public http://myvip:9696
openstack endpoint create --region RegionOne network internal http://myvip:9696
openstack endpoint create --region RegionOne network admin http://myvip:9696

#安装
yum install -y openstack-neutron openstack-neutron-ml2
 openstack-neutron-linuxbridge python-neutronclient ebtables ipset

#Neutron 备份配置
cp /etc/neutron/neutron.conf{,.bak2}
cp /etc/neutron/plugins/ml2/ml2_conf.ini{,.bak}
ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini
cp /etc/neutron/plugins/ml2/linuxbridge_agent.ini{,.bak}
cp /etc/neutron/dhcp_agent.ini{,.bak}
cp /etc/neutron/metadata_agent.ini{,.bak}
cp /etc/neutron/l3_agent.ini{,.bak}

Netname=ens37 #网卡名称
#配置
echo ;
#
[neutron]
url = http://myvip:9696
auth_url = http://myvip:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = neutron
service_metadata_proxy = true
metadata_proxy_shared_secret = metadata
#;>>/etc/nova/nova.conf
#
echo ;
[DEFAULT]
nova_metadata_ip = myvip
metadata_proxy_shared_secret = metadata
#;>/etc/neutron/metadata_agent.ini
#
echo ;#
[ml2]
tenant_network_types =
type_drivers = vlan,flat
mechanism_drivers = linuxbridge
extension_drivers = port_security
[ml2_type_flat]
flat_networks = provider
[securitygroup]
enable_ipset = True
#vlan
# [ml2_type_valn]
# network_vlan_ranges = provider:3001:4000
#;>/etc/neutron/plugins/ml2/ml2_conf.ini
# provider:网卡名
echo ;#
[linux_bridge]
physical_interface_mappings = provider:;$Netname;
[vxlan]
enable_vxlan = false
#local_ip = 10.2.1.20
#l2_population = true
[agent]
prevent_arp_spoofing = True
[securitygroup]
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
enable_security_group = True
#;>/etc/neutron/plugins/ml2/linuxbridge_agent.ini
#
echo ;#
[DEFAULT]
interface_driver = linuxbridge
dhcp_driver = neutron.agent.linux.dhcp.DNSmasq
enable_isolated_metadata = true
#;>/etc/neutron/dhcp_agent.ini
#
echo ;
[DEFAULT]
bind_port = 9696
bind_host = controller1
core_plugin = ml2
service_plugins =
#service_plugins = trunk
#service_plugins = router
allow_overlapping_ips = true
transport_url = rabbit://openstack:openstack;myvip
auth_strategy = keystone
notify_nova_on_port_status_changes = true
notify_nova_on_port_data_changes = true

[keystone_authtoken]
auth_uri = http://myvip:5000
auth_url = http://myvip:35357
memcached_servers = controller1:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = neutron

[nova]
auth_url = http://myvip:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
region_name = RegionOne
project_name = service
username = nova
password = nova

[database]
connection = mysql://neutron:neutron;myvip:3306/neutron

[oslo_concurrency]
lock_path = /var/lib/neutron/tmp
#;>/etc/neutron/neutron.conf
#
echo ;
[DEFAULT]
interface_driver = linuxbridge
#;>/etc/neutron/l3_agent.ini
#

#同步数据库
su -s /bin/sh -c ;neutron-db-manage --config-file /etc/neutron/neutron.conf
  --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head; neutron

#检测数据
mysql -h controller -u neutron -pneutron -e ;use neutron;show tables;;

#haproxy高可用配置
echo ;
#Neutron_API
listen Neutron_API_cluster
bind myvip:9696
balance source
option tcpka
option tcplog
server controller1 controller1:9696 check inter 2000 rise 2 fall 5
server controller2 controller2:9696 check inter 2000 rise 2 fall 5
server controller3 controller3:9696 check inter 2000 rise 2 fall 5
;>>/etc/haproxy/haproxy.cfg
systemctl restart haproxy.service
netstat -antp|grep haproxy


#重启相关服务
systemctl restart openstack-nova-api.service

#启动neutron
systemctl enable neutron-server.service
  neutron-linuxbridge-agent.service neutron-dhcp-agent.service
  neutron-metadata-agent.service
systemctl start neutron-server.service
  neutron-linuxbridge-agent.service neutron-dhcp-agent.service
  neutron-metadata-agent.service
# openstack network agent list
#
############在controller2安装配置############
#安装
yum install -y openstack-neutron openstack-neutron-ml2
 openstack-neutron-linuxbridge python-neutronclient ebtables ipset
#同步controller1配置并修改
Node=controller2
rsync -avzP -e ;ssh -p 22; controller1:/etc/nova/* /etc/nova/
rsync -avzP -e ;ssh -p 22; controller1:/etc/neutron/* /etc/neutron/
#sed -i ;s/controller1/;$Node;/; /etc/nova/nova.conf
sed -i ;s/controller1/;$Node;/; /etc/neutron/neutron.conf
rsync -avzP -e ;ssh -p 22; controller1:/etc/haproxy/* /etc/haproxy/

#重启相关服务
systemctl restart haproxy openstack-nova-api.service
#启动neutron
systemctl enable neutron-server.service
neutron-linuxbridge-agent.service neutron-dhcp-agent.service
neutron-metadata-agent.service
systemctl start neutron-server.service
neutron-linuxbridge-agent.service neutron-dhcp-agent.service
neutron-metadata-agent.service

########controller3安装配置,同上

13. Dashboard Controller Cluser集群搭建
#Dashboard集群
#####在controller1安装配置
#安装
yum install openstack-dashboard -y
#配置
cp /etc/openstack-dashboard/local_settings{,.bak}
#egrep -v ;#|^$; /etc/openstack-dashboard/local_settings #显示默认配置
Setfiles=/etc/openstack-dashboard/local_settings
sed -i ;s#_member_#user#g; $Setfiles
sed -i ;s#OPENSTACK_HOST = ;127.0.0.1;#OPENSTACK_HOST = ;controller;#; $Setfiles
##允许所有主机访问#
sed -i ;/ALLOWED_HOSTS/cALLOWED_HOSTS = [;*;, ]; $Setfiles
#去掉memcached注释#
sed -in ;153,158s/#//; $Setfiles
sed -in ;160,164s/.*/#&/; $Setfiles
sed -i ;s#UTC#Asia/Shanghai#g; $Setfiles
sed -i ;s#%s:5000/v2.0#%s:5000/v3#; $Setfiles
sed -i ;/ULTIDOMAIN_SUPPORT/cOPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True; $Setfiles
sed -i ;s;^#OPENSTACK_KEYSTONE_DEFAULT;OPENSTACK_KEYSTONE_DEFAULT;; $Setfiles
echo ;
#set
OPENSTACK_API_VERSIONS = {
    ;identity;: 3,
    ;image;: 2,
    ;volume;: 2,
}
#;>>$Setfiles
#
systemctl restart httpd

#haproxy高可用配置
echo ;
#Dashboard
listen Dashboard_cluster
bind myvip:80
balance source
option tcpka
option tcplog
server controller1 controller1:80 check inter 2000 rise 2 fall 5
server controller2 controller2:80 check inter 2000 rise 2 fall 5
server controller3 controller3:80 check inter 2000 rise 2 fall 5
;>>/etc/haproxy/haproxy.cfg
systemctl restart haproxy.service
netstat -antp|grep haproxy
#访问
# http://myvip/dashboard/
#########其它节点配置controller2;controller3

#同步controller1配置到其它节点
rsync -avzP  -e ;ssh -p 22;  /etc/openstack-dashboard/local_settings  controller2:/etc/openstack-dashboard/
rsync -avzP  -e ;ssh -p 22;  /etc/openstack-dashboard/local_settings  controller3:/etc/openstack-dashboard/

#重启http
ssh controller2  ;systemctl restart httpd;
ssh controller3  ;systemctl restart httpd;

14. Cinder Controller Cluser集群搭建
#在控制节点安装配置cender api服务
#存储节点安装配置cinder-volume服务;后续
#控制节点安装配置cinder-api、cinder-scheduler服务
######################################################
#以下在controller节点安装配置
#创建Nova数据库、用户
#mysql -u root -p
create database cinder;
grant all privileges on cinder.* to ;cinder;;;localhost; identified by ;cinder;;
grant all privileges on cinder.* to ;cinder;;% identified by ;cinder;;
flush privileges;exit;

# keystone创建cinder用户、服务、API
source ./admin-openstack.sh
openstack user create --domain default --password=cinder cinder
openstack role add --project service --user cinder admin
openstack service create --name cinderv2   --description ;OpenStack Block Storage; volumev2
openstack service create --name cinderv3   --description ;OpenStack Block Storage; volumev3
openstack endpoint create --region RegionOne   volumev2 public http://myvip:8776/v2/%(project_id)s
openstack endpoint create --region RegionOne   volumev2 internal http://myvip:8776/v2/%(project_id)s
openstack endpoint create --region RegionOne   volumev2 admin http://myvip:8776/v2/%(project_id)s
openstack endpoint create --region RegionOne   volumev3 public http://myvip:8776/v3/%(project_id)s
openstack endpoint create --region RegionOne   volumev3 internal http://myvip:8776/v3/%(project_id)s
openstack endpoint create --region RegionOne   volumev3 admin http://myvip:8776/v3/%(project_id)s

######################################################
#安装Cinder
yum install openstack-cinder -y
yum install nfs-utils -y #NFS
cp /etc/cinder/cinder.conf{,.bak}
#配置
echo ;
[DEFAULT]
osapi_volume_listen = controller1
osapi_volume_listen_port = 8776
auth_strategy = keystone
log_dir = /var/log/cinder
state_path = /var/lib/cinder
glance_api_servers = http://myvip:9292
transport_url = rabbit://openstack:openstack;myvip

[database]
connection = mysql;pymysql://cinder:cinder;myvip/cinder

[keystone_authtoken]
auth_uri = http://myvip:5000
auth_url = http://myvip:35357
memcached_servers = controller1:11211,controller2:11211,controller3:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = cinder
password = cinder

[oslo_concurrency]
lock_path = /var/lib/cinder/tmp
;>/etc/cinder/cinder.conf
#nova
echo ;
[cinder]
os_region_name = RegionOne
;>>/etc/nova/nova.conf

#初始化数据
su -s /bin/sh -c ;cinder-manage db sync; cinder
mysql -h controller -u cinder -pcinder -e ;use cinder;show tables;; #检测

#haproxy高可用配置
echo ;
#Cinder_API_cluster
listen Cinder_API_cluster
bind myvip:8776
#balance source
option tcpka
option httpchk
option tcplog
server controller1 controller1:8776 check inter 2000 rise 2 fall 5
server controller2 controller2:8776 check inter 2000 rise 2 fall 5
server controller3 controller3:8776 check inter 2000 rise 2 fall 5
;>>/etc/haproxy/haproxy.cfg
systemctl restart haproxy.service
netstat -antp|grep haproxy

#启动服务
systemctl restart openstack-nova-api.service
systemctl enable openstack-cinder-api.service openstack-cinder-scheduler.service
systemctl start openstack-cinder-api.service openstack-cinder-scheduler.service
netstat -antp|grep 8776 #cheack


##查看到存储节点;lvm、;nfs 且up状态说明配置成功
cinder service-list
# ;------------------;-------------;------;---------;-------;
# | Binary           | Host        | Zone | Status  | State |
# ;------------------;-------------;------;---------;-------;
# | cinder-volume    | cinder1;lvm | nova | enabled | up    |
# | cinder-volume    | cinder1;nfs | nova | enabled | up    |
# ;------------------;-------------;------;---------;-------;

#openstack volume service list #cheack cinder server
#systemctl restart openstack-cinder-api  openstack-cinder-scheduler
# cinder-manage service remove <binary> <host>
# cinder-manage service remove cinder-scheduler  cinder1

#创建云硬盘类型,关联volum
#LVM
#(backend_name与配置文件名对应)
cinder type-create lvm
cinder type-key lvm set volume_backend_name=lvm01
#NFS
cinder type-create nfs
cinder type-key nfs set volume_backend_name=nfs01
#cheack
cinder extra-specs-list
#cinder type-list
#cinder type-delete nfs

#创建云盘(容量单位G)
openstack volume create --size 1 --type lvm disk01 #lvm类型
openstack volume create --size 1 --type nfs disk02 #nfs类型
openstack volume list

######################################################
#集群节点controller2安装配置Cinder

#安装
yum install openstack-cinder -y
yum install nfs-utils -y #NFS
cp /etc/cinder/cinder.conf{,.bak}

#nova
echo ;
[cinder]
os_region_name = RegionOne
;>>/etc/nova/nova.conf
#同步controller1配置并修改
Node=controller2
rsync -avzP -e ;ssh -p 22; controller1:/etc/cinder/cinder.conf /etc/cinder/
rsync -avzP -e ;ssh -p 22; controller1:/etc/haproxy/* /etc/haproxy/
sed -i ;1,8s/controller1/;$Node;/; /etc/cinder/cinder.conf

#启动服务
systemctl restart openstack-nova-api.service
systemctl enable openstack-cinder-api.service openstack-cinder-scheduler.service
systemctl start openstack-cinder-api.service openstack-cinder-scheduler.service
netstat -antp|grep 8775 #cheack

#节点controller3同上
######################################################

15. Cinder volume 节点安装
#cinder存储节点
#cinder后端采用lvm、nfs安装配置

#cinder块存储
#需要准备存储节点,可以使用LVM、NFS、分布式存储等
#本次安装以LVM、NFS为例
######################################################

#基本配置
# hostname cinder01
# hostnamectl set-hostname cinder1
#hosts设置

##############
#添加硬盘……
#fdisk快速分区,新建2个30G分区
echo -e ;n
p
1

;30G
w; | fdisk /dev/sdb
echo -e ;n
p
2

;30G
w; | fdisk /dev/sdb
#格式化
mkfs.ext4 /dev/sdb1
mkfs.ext4 /dev/sdb2

mkdir -p /date
mount -t ext4 /dev/sdb1 /date
df -h|grep /dev/sdb1
#开机挂载磁盘
echo ;mount -t ext4 /dev/sdb1 /date; >>/etc/rc.d/rc.local
tail -1 /etc/rc.d/rc.local
chmod ;x /etc/rc.d/rc.local

##############
#安装配置LVM;作为后端存储使用
yum install -y lvm2
systemctl enable lvm2-lvmetad.service
systemctl start lvm2-lvmetad.service
#创建LVM物理卷pv与卷组vg
pvcreate /dev/sdb2
vgcreate cinder_lvm01 /dev/sdb2
vgdisplay #查看vg

##############
#安装配置NFS服务;作为后端存储使用
yum install nfs-utils rpcbind -y
mkdir -p /date/{cinder_nfs1,cinder_nfs2}
chown cinder:cinder /date/cinder_nfs1
chmod 777 /date/cinder_nfs1
#echo ;/date/cinder_nfs1 *(rw,no_root_squash,sync);>/etc/exports
echo ;/date/cinder_nfs1 *(rw,root_squash,sync,anonuid=165,anongid=165);>/etc/exports
exportfs -r
systemctl enable rpcbind nfs-server
systemctl restart rpcbind nfs-server
showmount -e localhost

######################################################

#安装配置Cinder
yum install -y openstack-cinder targetcli python-keystone lvm2
cp /etc/cinder/cinder.conf{,.bak}
cp /etc/lvm/lvm.conf{,.bak}

#配置LVM过滤;只接收上面配置的lvm设备/dev/sdb2
#在devices {  }部分添加 filter = [ ;a/sdb2/;, ;r/.*/;]
sed -i ;141a filter = [ ;a/sdb2/;, ;r/.*/;]; /etc/lvm/lvm.conf  #在141行后添加

#NFS
echo ;192.168.58.24:/date/cinder_nfs1;>/etc/cinder/nfs_shares
chmod 640 /etc/cinder/nfs_shares
chown root:cinder /etc/cinder/nfs_shares

#Cinder配置
echo ;
[DEFAULT]
auth_strategy = keystone
log_dir = /var/log/cinder
state_path = /var/lib/cinder
glance_api_servers = http://myvip:9292
transport_url = rabbit://openstack:openstack;myvip
enabled_backends = lvm,nfs

[database]
connection = mysql;pymysql://cinder:cinder;myvip/cinder

[keystone_authtoken]
auth_uri = http://myvip:5000
auth_url = http://myvip:35357
memcached_servers = controller01:11211,controller02:11211,controller03:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = cinder
password = cinder

[oslo_concurrency]
lock_path = /var/lib/cinder/tmp

[lvm]
volume_driver = cinder.volume.drivers.lvm.LVMVolumeDriver
iscsi_helper = lioadm
iscsi_protocol = iscsi
volume_group = cinder_lvm01
iscsi_ip_address = 172.27.10.41
volumes_dir = $state_path/volumes
volume_backend_name = lvm01

[nfs]
volume_driver = cinder.volume.drivers.nfs.NfsDriver
nfs_shares_config = /etc/cinder/nfs_shares
nfs_mount_point_base = $state_path/mnt
volume_backend_name = nfs01
;>/etc/cinder/cinder.conf
chmod 640 /etc/cinder/cinder.conf
chgrp cinder /etc/cinder/cinder.conf

#启动Cinder卷服务
systemctl enable openstack-cinder-volume.service target.service
systemctl start openstack-cinder-volume.service target.service

3、openstack集群搭建
1. 关闭selinux、防火墙
systemctl stop firewalld.service
systemctl disable firewalld.service
firewall-cmd --state
sed -i ;/^SELINUX=.*/c SELINUX=disabled; /etc/selinux/config
sed -i ;s/^SELINUXTYPE=.*/SELINUXTYPE=disabled/g; /etc/selinux/config
grep --color=auto ;^SELINUX; /etc/selinux/config
setenforce 0

2. 时间同步;设置hostname
每个节点分别设置;
yum install -y ntp
systemctl enable ntpd && systemctl restart ntpd
timedatectl set-timezone Asia/Shanghai

/usr/sbin/ntpdate ntp6.aliyun.com
echo ;*/3 * * * * /usr/sbin/ntpdate ntp6.aliyun.com  &> /dev/null; > /tmp/crontab
crontab /tmp/crontab

hostnamectl --static set-hostname  ops$(ip addr |grep brd |grep global |head -n1 |cut -d ;/; -f1 |cut -d ;.; -f4)

添加hosts;
cat >>/etc/hosts <<EOF
192.168.0.171 ops171
192.168.0.172 ops172
EOF
[ ;grep -c ; controller$; /etc/hosts ; -eq 0 ] && echo ;192.168.0.173 v.meilele.com controller; >>/etc/hosts
tail /etc/hosts

3. yum源
echo ;
[centos-openstack-liberty]
name=CentOS-7 - OpenStack liberty
baseurl=http://vault.centos.org/centos/7.3.1611/cloud/x86_64/openstack-liberty/
gpgcheck=0
enabled=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-Centos-7
; >/etc/yum.repos.d/CentOS-OpenStack-liberty.repo

tail  /etc/yum.repos.d/CentOS-OpenStack-liberty.repo

###########
yum install -y qemu-kvm libvirt virt-install
systemctl enable libvirtd && systemctl restart libvirtd

4. 免密码认证
wget -q http://indoor.meilele.com/download/centos/script/sshkey_tool.sh -O sshkey_tool.sh

bash sshkey_tool.sh 192.168.0.171 root ess.com1
bash sshkey_tool.sh 192.168.0.172 root ess.com1

5. http高可用;负载均衡pacemaker;haproxy
所有控制节点安装Pacemake Corosync;
yum install corosync pacemaker pcs fence-agents resource-agents -y

#启动pcsd
systemctl enable pcsd.service
systemctl start pcsd.service
#修改群集用户hacluster密码
echo 123456 | passwd hacluster --stdin

#http设置
cp /etc/httpd/conf/httpd.conf{,.bak}
sed -i ;s#^Listen 80#Listen 8080#;  /etc/httpd/conf/httpd.conf
echo ;ServerName ;hostname;:8080; >>/etc/httpd/conf/httpd.conf
tail -1 /etc/httpd/conf/httpd.conf
systemctl start httpd.service
netstat -antp|grep httpd

echo ;hostname;>/var/www/html/index.html #测试主页

其中一节点执行 controller;
#创建、启动my_cluster集群
pcs cluster auth -u hacluster -p 123456 ops171 ops172
pcs cluster setup --start --name my_cluster ops171 ops172

#集群自启动
pcs cluster enable --all

# 启动集群
#pcs cluster start  --all
pcs cluster status #集群状态

####检验
#验证corosync
corosync-cfgtool -s

#查看成员
corosync-cmapctl| grep members

#查看corosync状态
pcs status corosync

#检查配置
crm_verify -L -V

#禁用STONITH
pcs property set stonith-enabled=false
#无仲裁时;选择忽略
pcs property set no-quorum-policy=ignore

#创建 VIP 资源
pcs resource create vip ocf:heartbeat:IPaddr2 ip=192.168.0.173 cidr_netmask=24 op monitor interval=28s

# pcs resource rsc defaults resource-stickiness=100

# ### 可选参考
# pcs resource create haproxy systemd:haproxy op monitor interval=5s
# pcs constraint colocation add vip haproxy INFINITY  #HAProxy和VIP必须在同一节点
# pcs constraint order vip then haproxy   #先启动VIP,再启动HAProxy

#添加到群集
#pcs resource create WEB apache configfile=;/etc/httpd/conf/httpd.conf; statusurl=;http://127.0.0.1/server-status;
# #创建group作为一个整体
# pcs resource group add MyGroup vip
# pcs resource group add MyGroup WEB

6. haproxy配置
yum install haproxy -y

haproxy配置;
#允许没VIP时启动
echo ;net.ipv4.ip_nonlocal_bind = 1; >>/etc/sysctl.conf
sysctl -p

#haproxy日志
echo ;$ModLoad imudp
$UDPServerRun 514
$template Haproxy,%rawmsg%
;
local0.=info -/var/log/haproxy.log;Haproxy
local0.notice -/var/log/haproxy-status.log;Haproxy
;>/etc/rsyslog.d/haproxy.conf

systemctl status rsyslog.service
systemctl restart rsyslog.service

cp /etc/haproxy/haproxy.cfg{,.bak}


##############默认配置
echo ;
###########全局配置#########
    global
    log 127.0.0.1 local0
    log 127.0.0.1 local1 notice
    daemon
    nbproc 1 #进程数量
    maxconn 4096 #最大连接数
    user haproxy #运行用户
    group haproxy #运行组
    chroot /var/lib/haproxy
    pidfile /var/run/haproxy.pid
########默认配置############
    defaults
    log global
    mode http            #默认模式{ tcp|http|health }
    option httplog       #日志类别,采用httplog
    option dontlognull   #不记录健康检查日志信息
    retries 2            #2次连接失败不可用
    option forwardfor    #后端服务获得真实ip
    option httpclose     #请求完毕后主动关闭http通道
    option abortonclose  #服务器负载很高;自动结束比较久的链接
    maxconn 4096         #最大连接数
    timeout connect 5m   #连接超时
    timeout client 1m    #客户端超时
    timeout server 31m   #服务器超时
    timeout check 10s    #心跳检测超时
    balance roundrobin   #负载均衡方式;轮询
########统计页面配置########
    listen stats
    bind 0.0.0.0:1080
    mode http
    option httplog
    log 127.0.0.1 local0 err
    maxconn 10      #最大连接数
    stats refresh 30s
    stats uri /admin         #状态页面 http//ip:1080/admin访问
    stats realm Haproxy Statistics
    stats auth admin:admin   #用户和密码:admin
    stats hide-version       #隐藏版本信息
    stats admin if TRUE      #设置手工启动/禁用
;>/etc/haproxy/haproxy.cfg

#haproxy web代理配置
#####echo ;
#############WEB############
#####listen dashboard_cluster
#####  bind :80
#####  balance  roundrobin
#####  option  tcpka
#####  option  httpchk
#####  option  tcplog
#####  server ops171 ops171:8080 check port 8080 inter 2000 rise 2 fall 5
#####  server ops172 ops172:8080 check port 8080 inter 2000 rise 2 fall 5
#####;>>/etc/haproxy/haproxy.cfg

######重启haproxy
systemctl restart haproxy.service
systemctl status haproxy.service

#####systemctl disable haproxy.service


#登录状态页面 http//ip:1080/admin  查看

7. Mariadb Galera Cluster 群集安装部署
# #配置内核
# echo ;
# * soft nofile 65536
# * hard nofile 65536
# ;>>/etc/security/limits.conf
# #
# echo ;
# fs.file-max=655350
# net.ipv4.ip_local_port_range = 1025 65000
# net.ipv4.tcp_tw_recycle = 1
# ;>>/etc/sysctl.conf
# sysctl -p
# ###########################

yum install -y mariadb mariadb-server mariadb-galera-server
yum install expect -y

#配置数据库
echo ;#
[mysqld]
bind-address = 0.0.0.0
default-storage-engine = innodb
innodb_file_per_table
max_connections = 4096
collation-server = utf8_general_ci
character-set-server = utf8
#;>/etc/my.cnf.d/openstack.cnf

#启动数据库服务
systemctl enable mariadb.service
systemctl start mariadb.service

#mysql_secure_installation #初始化设置密码,自动交互

####初始化数据库服务;只在一个节点进行
yum install expect -y
/usr/bin/expect << EOF
set timeout 30
spawn mysql_secure_installation
expect {
    ;enter for none; { send ;
;; exp_continue}
    ;Y/n; { send ;Y
; ; exp_continue}
    ;password:; { send ;123456
;; exp_continue}
    ;new password:; { send ;123456
;; exp_continue}
    ;Y/n; { send ;Y
; ; exp_continue}
    eof { exit }
}
EOF

########
mysql -u root -p123456 -e ;show databases;;

8. galera配置
cp /etc/my.cnf.d/galera.cnf{,.bak}

egrep -v ;#|^$; /etc/my.cnf.d/galera.cnf.bak >/etc/my.cnf.d/galera.cnf
sed -i ;s/wsrep_on=1/wsrep_on=ON/; /etc/my.cnf.d/galera.cnf
sed -i ;s/wsrep_sst_auth=root:/wsrep_sst_auth=root:;123456;/; /etc/my.cnf.d/galera.cnf

#################
######ops171节点
#sed -i ;s/bind-address = 0.0.0.0/bind-address = $(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1)/; /etc/my.cnf.d/openstack.cnf

echo ;
wsrep_cluster_address=;gcomm://ops171,ops172;
wsrep_node_address=$(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1)
;>>/etc/my.cnf.d/galera.cnf

cat /etc/my.cnf.d/galera.cnf

systemctl daemon-reload
systemctl stop mariadb.service
#启动第一个节点
galera_new_cluster

###########################
######controller其它节点
#sed -i ;s/bind-address = 0.0.0.0/bind-address = $(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1)/; /etc/my.cnf.d/openstack.cnf
echo ;
wsrep_cluster_address=;gcomm://ops171,ops172;
wsrep_node_address=$(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1)
;>>/etc/my.cnf.d/galera.cnf
cat /etc/my.cnf.d/galera.cnf
systemctl restart mariadb.service

###########################
#####其它节点启动后;重启第一个节点 ops171
systemctl restart mariadb.service


#####检测
netstat -antp|grep mysqld
mysql -u root -p123456 -e ;show status like ;wsrep_cluster_size;;;
mysql -u root -p123456 -e ;show status like ;wsrep_incoming_addresses;;;

9. RabbitMQ Cluster群集安装配置
#所有节点运行

yum install -y rabbitmq-server

systemctl enable rabbitmq-server.service
systemctl restart rabbitmq-server.service

rabbitmqctl  add_user admin admin
rabbitmqctl  set_user_tags admin administrator

rabbitmqctl add_user openstack 123456
rabbitmqctl change_password openstack 123456
rabbitmqctl set_permissions openstack ;.*; ;.*; ;.*;
rabbitmqctl set_user_tags openstack administrator

rabbitmq-plugins list
rabbitmq-plugins enable rabbitmq_management
netstat -tnlp|grep beam


####所有节点命令  群集配置,/var/lib/rabbitmq/.erlang.cookie文件内容必须一致

echo $(echo 123456 |md5sum |cut -d ; ; -f1) >/var/lib/rabbitmq/.erlang.cookie
systemctl restart rabbitmq-server.service
netstat -tnlp|grep beam


######其它节点运行;主节点不用运行
rabbitmqctl stop_app
rabbitmqctl join_cluster rabbit;ops171
rabbitmqctl start_app
rabbitmqctl cluster_status

####此时 node2 与 node3 也会自动建立连接;如果要使用内存节点;则可以使用
####rabbitmqctl join_cluster --ram rabbit;ops232

#更改群集名称
###rabbitmqctl set_cluster_name RabbitMQ-Cluster

#查看群集状态
rabbitmqctl cluster_status

###访问RabbitMQ,访问地址是http://ip:15672

10. 创建openstack相关数据库、用户授权
#以下在controller其中一节点执行即可
#mysql -u root -p
mysql -uroot -p123456 -e ;CREATE DATABASE keystone;
GRANT ALL PRIVILEGES ON keystone.* TO ;keystone;;;localhost; IDENTIFIED BY ;123456;;
GRANT ALL PRIVILEGES ON keystone.* TO ;keystone;;% IDENTIFIED BY ;123456;;
CREATE DATABASE glance;
GRANT ALL PRIVILEGES ON glance.* TO ;glance;;;localhost; IDENTIFIED BY ;123456;;
GRANT ALL PRIVILEGES ON glance.* TO ;glance;;% IDENTIFIED BY ;123456;;
CREATE DATABASE nova;
GRANT ALL PRIVILEGES ON nova.* TO ;nova;;;localhost; IDENTIFIED BY ;123456;;
GRANT ALL PRIVILEGES ON nova.* TO ;nova;;% IDENTIFIED BY ;123456;;
CREATE DATABASE neutron;
GRANT ALL PRIVILEGES ON neutron.* TO ;neutron;;;localhost; IDENTIFIED BY ;123456;;
GRANT ALL PRIVILEGES ON neutron.* TO ;neutron;;% IDENTIFIED BY ;123456;;
CREATE DATABASE cinder;
GRANT ALL PRIVILEGES ON cinder.* TO ;cinder;;;localhost; IDENTIFIED BY ;123456;;
GRANT ALL PRIVILEGES ON cinder.* TO ;cinder;;% IDENTIFIED BY ;123456;;
flush privileges;
show databases;;


###测试mysql账号
mysql -e ;drop database glance nova neutron;;
mysql -ukeystone -p123456 -e ;show databases;;

mysql -u root -p123456 -e ;show databases;;

11. openstack yum安装
############服务端安装
yum install -y python-openstackclient openstack-selinux
##MySQL
yum install -y mariadb mariadb-server MySQL-python
##RabbitMQ
yum install -y rabbitmq-server

##Keystone
yum install -y openstack-keystone httpd mod_wsgi memcached python-memcached

##Glance
yum install -y openstack-glance python-glance python-glanceclient

##Nova
yum install -y openstack-nova-api openstack-nova-cert openstack-nova-conductor openstack-nova-console openstack-nova-novncproxy openstack-nova-scheduler python-novaclient

##Neutron linux-node1.example.com
yum install -y openstack-neutron openstack-neutron-ml2 openstack-neutron-linuxbridge python-neutronclient ebtables ipset

##Dashboard
yum install -y openstack-dashboard

##Cinder
yum install -y openstack-cinder python-cinderclient

############客户端的安装
##Nova linux-node2.openstack
yum install -y openstack-nova-compute sysfsutils

##Neutron linux-node2.openstack
yum install -y openstack-neutron openstack-neutron-linuxbridge ebtables ipset

##Cinder
yum install -y openstack-cinder python-cinderclient targetcli python-oslo-policy

12. Keystone安装
#############
#以下在controller其中一节点执行即可

#memcached启动
cp -f /etc/sysconfig/memcached{,.bak}

sed -i ;s/127.0.0.1/0.0.0.0/; /etc/sysconfig/memcached
systemctl enable memcached.service
systemctl start memcached.service
netstat -antp|grep 11211

#export OS_MASTERIP=192.168.0.173
#export OS_MASTERNAME=v.meilele.com
#export OS_PWDSTR=;123456;

export OS_TOKEN=$(echo 123456 |md5sum |cut -d ; ; -f1)
env|grep ^OS

cp -f  /etc/keystone/keystone.conf{,.bak}
echo ;
[DEFAULT]
admin_token = $(echo 123456 |md5sum |cut -d ; ; -f1)
[database]
connection = mysql://keystone:123456;v.meilele.com/keystone
[memcache]
servers = v.meilele.com:11211
[revoke]
driver = sql
[token]
provider = uuid
driver = memcache
; >/etc/keystone/keystone.conf
grep admin_token /etc/keystone/keystone.conf

su -s /bin/sh -c ;keystone-manage db_sync; keystone

tail /var/log/keystone/keystone.log

########Apache HTTP

echo ;
Listen 5000
Listen 35357
<VirtualHost *:5000>
    WSGIDaemonProcess keystone-public processes=5 threads=1 user=keystone group=keystone display-name=%{GROUP}
    WSGIProcessGroup keystone-public
    WSGIScriptAlias / /usr/bin/keystone-wsgi-public
    WSGIApplicationGroup %{GLOBAL}
    WSGIPassAuthorization On
    <IfVersion >= 2.4>
      ErrorLogFormat %{cu}t %M;
    </IfVersion>
    ErrorLog /var/log/httpd/keystone-error.log
    CustomLog /var/log/httpd/keystone-access.log combined

    <Directory /usr/bin>
        <IfVersion >= 2.4>
            Require all granted
        </IfVersion>
        <IfVersion < 2.4>
            Order allow,deny
            Allow from all
        </IfVersion>
    </Directory>
</VirtualHost>
<VirtualHost *:35357>
    WSGIDaemonProcess keystone-admin processes=5 threads=1 user=keystone group=keystone display-name=%{GROUP}
    WSGIProcessGroup keystone-admin
    WSGIScriptAlias / /usr/bin/keystone-wsgi-admin
    WSGIApplicationGroup %{GLOBAL}
    WSGIPassAuthorization On
    <IfVersion >= 2.4>
      ErrorLogFormat %{cu}t %M;
    </IfVersion>
    ErrorLog /var/log/httpd/keystone-error.log
    CustomLog /var/log/httpd/keystone-access.log combined

    <Directory /usr/bin>
        <IfVersion >= 2.4>
            Require all granted
        </IfVersion>
        <IfVersion < 2.4>
            Order allow,deny
            Allow from all
        </IfVersion>
    </Directory>
</VirtualHost>
; >/etc/httpd/conf.d/wsgi-keystone.conf

systemctl enable httpd.service && systemctl restart httpd.service
netstat -tnlp|grep httpd

######API
export OS_URL=http://v.meilele.com:35357/v3
export OS_IDENTITY_API_VERSION=3
env|grep ^OS

openstack service create --name keystone --description ;OpenStack Identity; identity
openstack endpoint create --region RegionOne   identity public http://v.meilele.com:5000/v2.0
openstack endpoint create --region RegionOne   identity internal http://v.meilele.com:5000/v2.0
openstack endpoint create --region RegionOne   identity admin http://v.meilele.com:35357/v2.0

###admin
openstack project create --domain default  --description ;Admin Project; admin
openstack user create --domain default  --password=123456 admin
openstack role create admin
openstack role add --project admin --user admin admin

#
openstack project create --domain default  --description ;Service Project; service
openstack project create --domain default  --description ;Demo Project; demo
openstack user create --domain default  --password=123456 demo
openstack role create user
openstack role add --project demo --user demo user


###############验证操作

cp -f /usr/share/keystone/keystone-dist-paste.ini{,.bak}
sed -i ;s#admin_token_auth##g;  /usr/share/keystone/keystone-dist-paste.ini

unset OS_TOKEN OS_URL

#
openstack --os-auth-url http://v.meilele.com:35357/v3 --os-project-domain-id default --os-user-domain-id default --os-project-name admin --os-username admin --os-password=123456 --os-auth-type password  token issue
openstack --os-auth-url http://v.meilele.com:5000/v3 --os-project-domain-id default --os-user-domain-id default --os-project-name demo --os-username demo --os-password=123456 --os-auth-type password token issue

echo ;
export OS_PROJECT_DOMAIN_ID=default
export OS_USER_DOMAIN_ID=default
export OS_PROJECT_NAME=admin
export OS_TENANT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=123456
export OS_AUTH_URL=http://v.meilele.com:35357/v3
export OS_IDENTITY_API_VERSION=3
;  >admin-openrc.sh

source admin-openrc.sh
openstack token issue

echo ;
export OS_PROJECT_DOMAIN_ID=default
export OS_USER_DOMAIN_ID=default
export OS_PROJECT_NAME=demo
export OS_TENANT_NAME=demo
export OS_USERNAME=demo
export OS_PASSWORD=123456
export OS_AUTH_URL=http://v.meilele.com:5000/v3
export OS_IDENTITY_API_VERSION=3
; >demo-openrc.sh

source demo-openrc.sh
openstack token issue

13. 配置 glance 镜像服务
#install_glance
##########Glance 提供了虚拟机镜像的集中存储

source admin-openrc.sh

openstack user create --domain default --password=123456 glance
openstack role add --project service --user glance admin
openstack service create --name glance  --description ;OpenStack Image service; image

openstack endpoint create --region RegionOne image public http://v.meilele.com:9292
openstack endpoint create --region RegionOne image internal http://v.meilele.com:9292
openstack endpoint create --region RegionOne  image admin http://v.meilele.com:9292


######Glance

cp -f /etc/glance/glance-api.conf{,.bak}
cp -f /etc/glance/glance-registry.conf{,.bak}

echo ;
[DEFAULT]
notification_driver = noop
verbose = True
[database]
connection = mysql://glance:123456;v.meilele.com/glance
[glance_store]
default_store = file
filesystem_store_datadir = /var/lib/glance/images/
[keystone_authtoken]
auth_uri = http://v.meilele.com:5000
auth_url = http://v.meilele.com:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
project_name = service
username = glance
password = 123456
[paste_deploy]
flavor = keystone
; >/etc/glance/glance-api.conf

##########################
echo ;
[DEFAULT]
notification_driver = noop
verbose = True
[database]
connection = mysql://glance:123456;v.meilele.com/glance
[keystone_authtoken]
auth_uri = http://v.meilele.com:5000
auth_url = http://v.meilele.com:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
project_name = service
username = glance
password = 123456
[paste_deploy]
flavor = keystone
;  >/etc/glance/glance-registry.conf


#####################################
su -s /bin/sh -c ;glance-manage db_sync; glance
tail /var/log/glance/api.log

#
systemctl enable openstack-glance-api.service openstack-glance-registry.service
systemctl restart openstack-glance-api.service openstack-glance-registry.service
netstat -tnlp|grep python

###验证操作

echo ;export OS_IMAGE_API_VERSION=2; | tee -a admin-openrc.sh demo-openrc.sh
export OS_IMAGE_API_VERSION=2

source admin-openrc.sh

[ ! -e cirros-0.3.4-x86_64-disk.img ] && wget http://download.cirros-cloud.net/0.3.4/cirros-0.3.4-x86_64-disk.img
glance image-create --name ;cirros; --file cirros-0.3.4-x86_64-disk.img --disk-format qcow2  --container-format bare --visibility public --progress

#[ -e /root/CentOS-7-x86_64-GenericCloud.qcow2 ] && glance image-create --name ;CentOS-7-x86_64-GenericCloud; --file /root/CentOS-7-x86_64-GenericCloud.qcow2 --disk-format qcow2  --container-format bare --visibility public --progress

glance image-list

14. nova模块配置
#install_nova
source admin-openrc.sh

openstack user create --domain default --password=123456 nova
openstack role add --project service --user nova admin
openstack service create --name nova --description ;OpenStack Compute; compute

openstack endpoint create --region RegionOne  compute public http://v.meilele.com:8774/v2/%(tenant_id)s
openstack endpoint create --region RegionOne   compute internal http://v.meilele.com:8774/v2/%(tenant_id)s
openstack endpoint create --region RegionOne    compute admin http://v.meilele.com:8774/v2/%(tenant_id)s


echo ;
[DEFAULT]
rpc_backend = rabbit
auth_strategy = keystone
my_ip = $(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1)
network_api_class = nova.network.neutronv2.api.API
security_group_api = neutron
linuxnet_interface_driver = nova.network.linux_net.NeutronLinuxBridgeInterfaceDriver
firewall_driver = nova.virt.firewall.NoopFirewallDriver
enabled_apis=osapi_compute,metadata
verbose = True
[database]
connection = mysql://nova:123456;v.meilele.com/nova
[glance]
host = v.meilele.com
[keystone_authtoken]
auth_uri = http://v.meilele.com:5000
auth_url = http://v.meilele.com:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
project_name = service
username = nova
password = 123456
[libvirt]
virt_type = kvm
[neutron]
url = http://v.meilele.com:9696
auth_url = http://v.meilele.com:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
region_name = RegionOne
project_name = service
username = neutron
password = 123456
service_metadata_proxy = True
metadata_proxy_shared_secret = 123456
[oslo_concurrency]
lock_path = /var/lib/nova/tmp
[oslo_messaging_rabbit]
rabbit_host = v.meilele.com
rabbit_userid = openstack
rabbit_password = 123456
[vnc]
vncserver_listen = $my_ip
vncserver_proxyclient_address = $my_ip
novncproxy_base_url = http://v.meilele.com:6080/vnc_auto.html
; >/etc/nova/nova.conf

[ $(egrep -c ;(vmx|svm); /proc/cpuinfo) -eq 0 ] && sed -i ;s#virt_type.*#virt_type=qemu#g; /etc/nova/nova.conf
[ $(egrep -c ;(vmx|svm); /proc/cpuinfo) -eq 1 ] && sed -i ;s#virt_type.*#virt_type=kvm#g; /etc/nova/nova.conf

grep virt_type /etc/nova/nova.conf

###############################
su -s /bin/sh -c ;nova-manage db sync; nova
tail /var/log/nova/nova-manage.log

systemctl enable openstack-nova-api.service openstack-nova-cert.service   openstack-nova-consoleauth.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service
systemctl restart openstack-nova-api.service openstack-nova-cert.service openstack-nova-consoleauth.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service


###controller;

source admin-openrc.sh
nova service-list
openstack host list
nova endpoints
glance image-list

15. neutron模块配置
#install_neutron
##########网络模块安装 配置
source admin-openrc.sh

openstack user create --domain default --password=123456 neutron
openstack role add --project service --user neutron admin
openstack service create --name neutron --description ;OpenStack Networking; network

openstack endpoint create --region RegionOne network public http://v.meilele.com:9696
openstack endpoint create --region RegionOne network internal http://v.meilele.com:9696
openstack endpoint create --region RegionOne network admin http://v.meilele.com:9696

echo ;
[DEFAULT]
core_plugin = ml2
service_plugins = router
allow_overlapping_ips = True
rpc_backend = rabbit
auth_strategy = keystone
notify_nova_on_port_status_changes = True
notify_nova_on_port_data_changes = True
nova_url = http://v.meilele.com:8774/v2
verbose = True
[keystone_authtoken]
auth_uri = http://v.meilele.com:5000
auth_url = http://v.meilele.com:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
project_name = service
username = neutron
password = 123456
[database]
connection = mysql://neutron:123456;v.meilele.com/neutron
[nova]
auth_url = http://v.meilele.com:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
region_name = RegionOne
project_name = service
username = nova
password = 123456
[oslo_concurrency]
lock_path = /var/lib/neutron/tmp
[oslo_messaging_rabbit]
rabbit_host = v.meilele.com
rabbit_userid = openstack
rabbit_password = 123456
; >/etc/neutron/neutron.conf

echo ;
[ml2]
type_drivers = flat,vlan,vxlan
tenant_network_types = vxlan
mechanism_drivers = linuxbridge,l2population
extension_drivers = port_security
[ml2_type_flat]
flat_networks = public
[ml2_type_vxlan]
vni_ranges = 1:1000
[securitygroup]
enable_ipset = True
; >/etc/neutron/plugins/ml2/ml2_conf.ini

echo ;
[linux_bridge]
physical_interface_mappings = public:$(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $NF};)
[vxlan]
enable_vxlan = True
local_ip = $(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1)
l2_population = True
[agent]
prevent_arp_spoofing = True
[securitygroup]
enable_security_group = True
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
; >/etc/neutron/plugins/ml2/linuxbridge_agent.ini

echo ;
[DEFAULT]
interface_driver = neutron.agent.linux.interface.BridgeInterfaceDriver
external_network_bridge =
verbose = True
; >/etc/neutron/l3_agent.ini

echo ;
[DEFAULT]
interface_driver = neutron.agent.linux.interface.BridgeInterfaceDriver
dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq
enable_isolated_metadata = True
verbose = True
dnsmasq_config_file = /etc/neutron/dnsmasq-neutron.conf
;  >/etc/neutron/dhcp_agent.ini

echo ;dhcp-option-force=26,1450; >/etc/neutron/dnsmasq-neutron.conf

echo ;
[DEFAULT]
auth_uri = http://v.meilele.com:5000
auth_url = http://v.meilele.com:35357
auth_region = RegionOne
auth_plugin = password
project_domain_id = default
user_domain_id = default
project_name = service
username = neutron
password = 123456
nova_metadata_ip = v.meilele.com
metadata_proxy_shared_secret = 123456
verbose = True
admin_tenant_name = %SERVICE_TENANT_NAME%
admin_user = %SERVICE_USER%
admin_password = %SERVICE_PASSWORD%
; >/etc/neutron/metadata_agent.ini

#sed -i ;s#physical_interface_mappings =.*#physical_interface_mappings = public:bond0#g;  /etc/neutron/plugins/ml2/linuxbridge_agent.ini
ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini
################################

su -s /bin/sh -c ;neutron-db-manage --config-file /etc/neutron/neutron.conf --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head; neutron

systemctl enable neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service neutron-l3-agent.service

systemctl restart openstack-nova-api.service
systemctl restart neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service  neutron-l3-agent.service


#####验证操作;
#####controller端(控制端);
source admin-openrc.sh
neutron ext-list
neutron agent-list

16. 创建虚拟网络
######################controller端
grep physical_interface_mappings  /etc/neutron/plugins/ml2/linuxbridge_agent.ini
grep flat_networks  /etc/neutron/plugins/ml2/ml2_conf.ini

echo ;
DEVICE=$(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $NF};):1
ONBOOT=yes
IPADDR=172.16.30.$(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1 |cut -d ;.; -f4)
PREFIX=24
; >/etc/sysconfig/network-scripts/ifcfg-$(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $NF};):1

#ifconfig $(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $NF};):1 172.16.30.1 netmask 255.255.255.0 up
#ip addr add 172.16.30.$(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1 |cut -d ;.; -f4)/24 dev $(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $NF};)

source admin-openrc.sh
neutron net-create public --shared --router:external --provider:physical_network public --provider:network_type flat
neutron subnet-create public 172.16.30.0/24 --name public --allocation-pool start=172.16.30.220,end=172.16.30.250 --dns-nameserver 172.16.30.1  --gateway 172.16.30.1 --disable-dhcp

#neutron subnet-create public 172.16.30.0/24 --name public --allocation-pool start=172.16.30.100,end=172.16.30.250  --dns-nameserver 172.16.30.1  --gateway 172.16.30.1 --disable-dhcp
###route
#source admin-openrc.sh
#neutron net-update public --router:external
#source demo-openrc.sh

neutron net-create private
neutron subnet-create private 172.16.100.0/24 --name private   --dns-nameserver 172.16.100.1 --gateway 172.16.100.1

neutron router-create router
neutron router-interface-add router private
neutron router-gateway-set router public
neutron net-list

########
##source admin-openrc.sh
##neutron router-interface-delete router private
##neutron router-gateway-clear  router public
##neutron router-delete router
##neutron router-list
##neutron net-delete public
##neutron net-delete private
##neutron net-list


###验证操作
source admin-openrc.sh
ip netns
neutron router-port-list router
[ ! -e /root/.ssh/id_rsa_admin ] && ssh-keygen -q  -N ;; -f /root/.ssh/id_rsa_admin
nova keypair-add --pub-key ~/.ssh/id_rsa_admin.pub adminkey

source demo-openrc.sh
[ ! -e /root/.ssh/id_rsa ] && ssh-keygen -q  -N ;; -f /root/.ssh/id_rsa
nova keypair-add --pub-key ~/.ssh/id_rsa.pub mykey
nova keypair-list

nova secgroup-add-rule default icmp -1 -1 0.0.0.0/0
nova secgroup-add-rule default tcp 22 22 0.0.0.0/0

source demo-openrc.sh
nova flavor-list
glance image-list
neutron net-list
nova  secgroup-list
nova list

#nova boot --flavor m1.tiny --image cirros --nic net-id=$(neutron net-list |grep private |awk ;{print $2};)  --security-group default --key-name mykey  private-instance
nova list
#nova get-vnc-console private-instance novnc

##访问url;http://v.meilele.com:6080/vnc_auto.html?token=ffec3792-a83a-4c2e-a138-bac3f8c7595d
###user:cubswin
###pwd:cirros

17. dashboard模块配置
##install_dashboard
env|grep ^OS

cp -f /etc/openstack-dashboard/local_settings {,.bak}

sed -i ;s#^OPENSTACK_HOST =.*#OPENSTACK_HOST = ;controller; #g; /etc/openstack-dashboard/local_settings
sed -i ;s#^ALLOWED_HOSTS =.*#ALLOWED_HOSTS = [;*;, ] #g; /etc/openstack-dashboard/local_settings
sed -i  ;s#^        ;BACKEND;:.*#        ;BACKEND;: ;django.core.cache.backends.memcached.MemcachedCache;,
         ;LOCATION;: ;controller:11211;,#g; /etc/openstack-dashboard/local_settings
sed -i ;s#^OPENSTACK_KEYSTONE_DEFAULT_ROLE =.*#OPENSTACK_KEYSTONE_DEFAULT_ROLE = ;user;#g; /etc/openstack-dashboard/local_settings
sed -i ;s#^TIME_ZONE =.*#TIME_ZONE = ;Asia/Shanghai;#g; /etc/openstack-dashboard/local_settings

###########
#[ $(grep -c ;^OPENSTACK_API_VERSIONS = {; /etc/openstack-dashboard/local_settings ) -eq 0 ] && sed  -i  ;/#OPENSTACK_API_VERSIONS/ i OPENSTACK_API_VERSIONS = {
    ;identity;: 3,
    ;volume;: 2,
}; /etc/openstack-dashboard/local_settings
#
#sed -i ;s#^OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT =.*#OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True#g; /etc/openstack-dashboard/local_settings
#
#sed -i ;s#;enable_router;: .*#;enable_router;: False,#g; /etc/openstack-dashboard/local_settings
#sed -i ;s#;enable_quotas;: .*#;enable_quotas;: False,#g; /etc/openstack-dashboard/local_settings
#sed -i ;s#;enable_distributed_router;: .*#;enable_distributed_router;: False,#g; /etc/openstack-dashboard/local_settings
#sed -i ;s#;enable_ha_router;: .*#;enable_ha_router;: False,#g; /etc/openstack-dashboard/local_settings
#sed -i ;s#;enable_lb;: .*#;enable_lb;: False,#g; /etc/openstack-dashboard/local_settings
#sed -i ;s#;enable_firewall;: .*#;enable_firewall;: False,#g; /etc/openstack-dashboard/local_settings
#sed -i ;s#;enable_vpn;: .*#;enable_vpn;: False,#g; /etc/openstack-dashboard/local_settings
#sed -i ;s#;enable_fip_topology_check;: .*#;enable_fip_topology_check;: False,#g; /etc/openstack-dashboard/local_settings


systemctl enable httpd.service memcached.service
systemctl restart httpd.service memcached.service

unset OS_MASTERIP OS_MASTERNAME

#访问报500
#sed -i ;/WSGISocketPrefix run/wsgi/ a WSGIApplicationGroup %{GLOBAL}; /etc/httpd/conf.d/openstack-dashboard.conf

#在浏览器中输入 http://controller/dashboard
##使用;admin;或;demo;用户登录;密码;123456


#######参考;https://www.cnblogs.com/panwenbin-logs/p/8410551.html
#######https://www.cnblogs.com/kevingrace/p/5707003.html


systemctl restart httpd
systemctl restart openstack-nova-api.service neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service  neutron-l3-agent.service

18. controller上启用计算机节点服务
#######在控制端启用 计算机节点服务
####创建云主机   解决报错;;No valid host was found. There are not enough hosts available
yum install openstack-nova-compute -y
systemctl status openstack-nova-compute.service
service openstack-nova-compute restart
systemctl status openstack-nova-compute.service


####### 解决报错;;Failed to allocate the network(s), not rescheduling.
echo -e ;vif_plugging_timeout = 0
vif_plugging_is_fatal = False; >>/etc/nova/nova.conf
grep vif_plugging /etc/nova/nova.conf
systemctl restart openstack-nova-compute

19. cinder模块配置
#install_cinder
# keystone创建cinder用户、服务、API
yum install -y openstack-cinder python-cinderclient


source admin-openrc.sh

openstack user create --domain default --password=123456 cinder

openstack role add --project service --user cinder admin
openstack service create --name cinder  --description ;OpenStack Block Storage; volume
openstack service create --name cinderv2  --description ;OpenStack Block Storage; volumev2

openstack endpoint create --region RegionOne volume public http://v.meilele.com:8776/v1/%(tenant_id)s
openstack endpoint create --region RegionOne volume internal http://v.meilele.com:8776/v1/%(tenant_id)s
openstack endpoint create --region RegionOne volume admin http://v.meilele.com:8776/v1/%(tenant_id)s

openstack endpoint create --region RegionOne volumev2 public http://v.meilele.com:8776/v2/%(tenant_id)s
openstack endpoint create --region RegionOne volumev2 internal http://v.meilele.com:8776/v2/%(tenant_id)s
openstack endpoint create --region RegionOne volumev2 admin http://v.meilele.com:8776/v2/%(tenant_id)s

cp -f /etc/cinder/cinder.conf{,.bak}

echo ;
[DEFAULT]
rpc_backend = rabbit
auth_strategy = keystone
my_ip = $(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1)
verbose = True
[BRCD_FABRIC_EXAMPLE]
[CISCO_FABRIC_EXAMPLE]
[cors]
[cors.subdomain]
[database]
connection = mysql://cinder:123456;v.meilele.com/cinder
[fc-zone-manager]
[keymgr]
[keystone_authtoken]
auth_uri = http://v.meilele.com:5000
auth_url = http://v.meilele.com:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
project_name = service
username = cinder
password = 123456
[matchmaker_redis]
[matchmaker_ring]
[oslo_concurrency]
lock_path = /var/lib/cinder/tmp
[oslo_messaging_amqp]
[oslo_messaging_qpid]
[oslo_messaging_rabbit]
rabbit_host = v.meilele.com
rabbit_userid = openstack
rabbit_password = 123456
[oslo_middleware]
[oslo_policy]
[oslo_reports]
[profiler]
; >/etc/cinder/cinder.conf

20. 控制节点启用cinder存储
sed -i ;/[DEFAULT]/ a enabled_backends = cinder_volumes
glance_host = v.meilele.com; /etc/cinder/cinder.conf

echo ;
[cinder_volumes]
volume_driver = cinder.volume.drivers.lvm.LVMVolumeDriver
volume_group = cinder-volumes
volume_backend_name = cinder_volumes
iscsi_protocol = iscsi
iscsi_helper = lioadm
; >>/etc/cinder/cinder.conf

head /etc/cinder/cinder.conf

echo ;
[cinder]
os_region_name = RegionOne
;>>/etc/nova/nova.conf
########################


su -s /bin/sh -c ;cinder-manage db sync; cinder

systemctl enable openstack-cinder-api.service openstack-cinder-scheduler.service
systemctl restart openstack-nova-api.service openstack-cinder-api.service openstack-cinder-scheduler.service

source admin-openrc.sh
cinder service-list

21. 创建云硬盘类型
#LVM
#(backend_name与配置文件名对应)
cinder type-create lvm
cinder type-key lvm set volume_backend_name=lvm
#NFS
cinder type-create nfs
cinder type-key nfs set volume_backend_name=nfs

#cheack
cinder extra-specs-list
#cinder type-list
#cinder type-delete nfs

#创建云盘(容量单位G)
openstack volume create --size 1 --type lvm disk01 #lvm类型
openstack volume create --size 1 --type nfs disk02 #nfs类型
openstack volume list

22. 节点安装
###node

sed -i ;s#SELINUX=enforcing#SELINUX=disabled#g; /etc/sysconfig/selinux
setenforce 0

systemctl stop firewalld.service
systemctl disable firewalld.service

hostnamectl --static set-hostname  ops$(ip addr |grep brd |grep global |head -n1 |cut -d ;/; -f1 |cut -d ;.; -f4)

#export OS_MASTERIP=$(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1)
export OS_MASTERIP=172.16.3.228
export OS_MASTERNAME=v.meilele.com

[ ;grep -c ;${OS_MASTERIP} v.meilele.com; /etc/hosts; -eq 0 ] && echo ;${OS_MASTERIP} v.meilele.com controller; >>/etc/hosts
tail /etc/hosts


echo ;
[centos-openstack-liberty]
name=CentOS-7 - OpenStack liberty
baseurl=http://vault.centos.org/centos/7.3.1611/cloud/x86_64/openstack-liberty/
gpgcheck=0
enabled=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-Centos-7
;  >/etc/yum.repos.d/CentOS-OpenStack-liberty.repo

yum install -y qemu-kvm libvirt virt-install
systemctl enable libvirtd && systemctl restart libvirtd

##时间同步 node
yum install -y ntp
timedatectl set-timezone Asia/Shanghai
echo ;* * * * * ntpdate  ${OS_MASTERIP}; >>/var/spool/cron/root


##Nova linux-node2.openstack
yum install -y openstack-nova-compute sysfsutils

##Neutron linux-node2.openstack
yum install -y openstack-neutron openstack-neutron-linuxbridge ebtables ipset


#compute1 Nova
cp -f /etc/nova/nova.conf  /etc/nova/nova.conf.bak

echo ;
[DEFAULT]
rpc_backend = rabbit
auth_strategy = keystone
my_ip = $(ip addr |grep global |grep $(route  |grep default |awk ;{print $NF};) |head -n1 |awk ;{print $2}; |cut -d ;/; -f1)
network_api_class = nova.network.neutronv2.api.API
security_group_api = neutron
linuxnet_interface_driver = nova.network.linux_net.NeutronLinuxBridgeInterfaceDriver
firewall_driver = nova.virt.firewall.NoopFirewallDriver
verbose = True
[glance]
host = v.meilele.com
[keystone_authtoken]
auth_uri = http://v.meilele.com:5000
auth_url = http://v.meilele.com:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
project_name = service
username = nova
password = 123456
[libvirt]
virt_type = kvm
[neutron]
url = http://v.meilele.com:9696
auth_url = http://v.meilele.com:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
region_name = RegionOne
project_name = service
username = neutron
password = 123456
[oslo_concurrency]
lock_path = /var/lib/nova/tmp
[oslo_messaging_rabbit]
rabbit_host = v.meilele.com
rabbit_userid = openstack
rabbit_password = 123456
[vnc]
enabled = True
vncserver_listen = 0.0.0.0
vncserver_proxyclient_address = $my_ip
novncproxy_base_url = http://v.meilele.com:6080/vnc_auto.html
; >/etc/nova/nova.conf

[ $(egrep -c ;(vmx|svm); /proc/cpuinfo) -eq 0 ] && sed -i ;s#virt_type.*#virt_type=qemu#g; /etc/nova/nova.conf
[ $(egrep -c ;(vmx|svm); /proc/cpuinfo) -eq 1 ] && sed -i ;s#virt_type.*#virt_type=kvm#g; /etc/nova/nova.conf


grep virt_type /etc/nova/nova.conf

systemctl enable libvirtd.service openstack-nova-compute.service
systemctl restart libvirtd.service openstack-nova-compute.service


unset OS_MASTERIP OS_MASTERNAME

23. cinder节点安装;云硬盘关联volume
###cinder 节点安装
yum install lvm2 -y
systemctl enable lvm2-lvmetad.service
systemctl restart lvm2-lvmetad.service
yes |pvcreate /dev/sdb
yes |vgcreate cinder-volumes /dev/sdb

cp -f /etc/lvm/lvm.conf{,.bak}

sed -i ;/devices {/ a filter = [ ;a/sdb/;, ;r/.*/;]; /etc/lvm/lvm.conf

filter = [ ;a/sda/;, ;a/sdb/;, ;r/.*/;]


##在cinder节点;cinder-volume使用的磁盘;/dev/sdb;;需要在/etc/lvm/lvm.conf中配置;
sed -i ;/devices {/ a filter = [ ;a/sdb/;, ;r/.*/;]; /etc/lvm/lvm.conf

##如果cinder节点的操作系统也安装在lvm上;则还需要;在cinder节点操作;;
sed -i ;/devices {/ a filter = [;a/sda/;, ;a/sdb/;, ;r/.*/;]; /etc/lvm/lvm.conf

###如果compute节点的操作系统也安装在lvm上;则需要;在compute节点操作;;

sed -i ;/devices {/ a filter = [ ;a/sdb/;, ;r/.*/;]; /etc/lvm/lvm.conf

grep ;devices {; -C 3 /etc/lvm/lvm.conf

yum install -y openstack-cinder targetcli python-oslo-policy
yum install -y openstack-cinder targetcli python-keystone

systemctl enable openstack-cinder-volume.service target.service
systemctl restart openstack-cinder-volume.service target.service

echo ;
[DEFAULT]
rpc_backend = rabbit
auth_strategy = keystone
my_ip = v.meilele.com
enabled_backends = cinder_volumes
glance_host = v.meilele.com
[BRCD_FABRIC_EXAMPLE]
[CISCO_FABRIC_EXAMPLE]
[cors]
[cors.subdomain]
[database]
connection = mysql://cinder:123456;v.meilele.com/cinder
[fc-zone-manager]
[keymgr]
[keystone_authtoken]
auth_uri = http://v.meilele.com:5000
auth_url = http://v.meilele.com:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
project_name = service
username = cinder
password = 123456
[matchmaker_redis]
[matchmaker_ring]
[oslo_concurrency]
lock_path = /var/lib/cinder/tmp
[oslo_messaging_amqp]
[oslo_messaging_qpid]
[oslo_messaging_rabbit]
rabbit_host = v.meilele.com
rabbit_userid = openstack
rabbit_password = 123456
[oslo_middleware]
[oslo_policy]
[oslo_reports]
[profiler]
[cinder_volumes]
volume_driver = cinder.volume.drivers.lvm.LVMVolumeDriver
volume_group = cinder-volumes
iscsi_protocol = iscsi
iscsi_helper = lioadm
volume_backend_name = lvm
; >/etc/cinder/cinder.conf

systemctl enable openstack-cinder-volume.service target.service
systemctl restart openstack-cinder-volume.service target.service
systemctl restart openstack-nova-api.service openstack-cinder-api.service openstack-cinder-scheduler.service


systemctl restart lvm2-lvmetad.service openstack-cinder-volume.service target.service openstack-nova-api.service openstack-cinder-api.service openstack-cinder-scheduler.service



        上一篇：Chirpstack服务器配置流程
        下一篇：Linux——全是OK无法打开图形化界面问题

Pecemaker+Corosync+Haproxy高可用Openstack集群实战

一、DRBD简介

二、DRBD 安装配置

1、基础配置

2、DRBD双节点部署

3、DRBD三节点部署

三、Pacemaker 概述

1、集群管理软件介绍

2、Pacemaker简介

3、Hearteat子项目

4、Pacemaker功能

5、Pacemaker服务类型

6、Pacemaker架构

7、Pacemaker组件

四、Pacemaker集群资源管理

1、Pacemaker集群管理工具pcs

2、Pacemaker集群资源管理

五、Pacemaker集群部署

1、Pacemaker集群基础安装配置

2、Pacemaker部署Active/Passive模式

3、部署httpd

4、Pacemaker;DRBD;NFS部署

七、Pacemaker实现KVM HA

1、磁盘分配和drbd创建

2、Pacemaker接管drbd

3、在pcs1上部署VM

4、Pacemaker接管KVM虚拟机

八、Pecemaker;Corosync;Haproxy实现Openstack HA

1、高可用集群环境准备

2、非openstack集群搭建

3、openstack集群搭建

相关文章

网友评论

推荐文章

最新文章

文章排行
